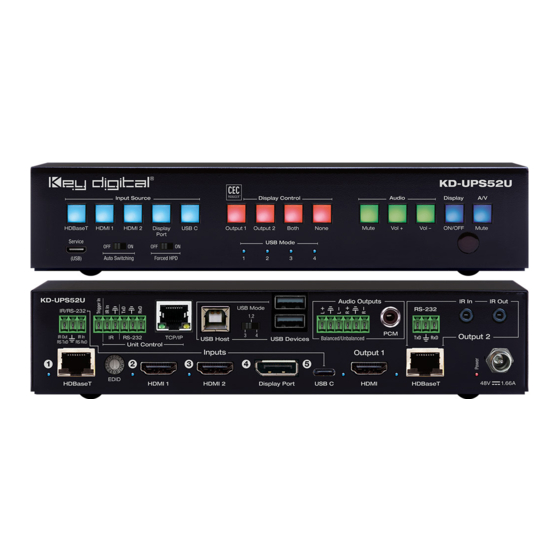

Key Digital KD-UPS52U Manual

4k/18g multi-format, soft codec enabling presentation switcher with auto switching, 5 inputs (hdbt, 2xhdmi, dp, usb-c), 2 mirrored outputs (hdbt, hdmi), usb, lan, arc, audio de-embed, ir, rs-232, ip control, cec manager includes rx.
Hide thumbs Also See for KD-UPS52U:
Table of Contents

Advertisement

Quick Links

Download this manual

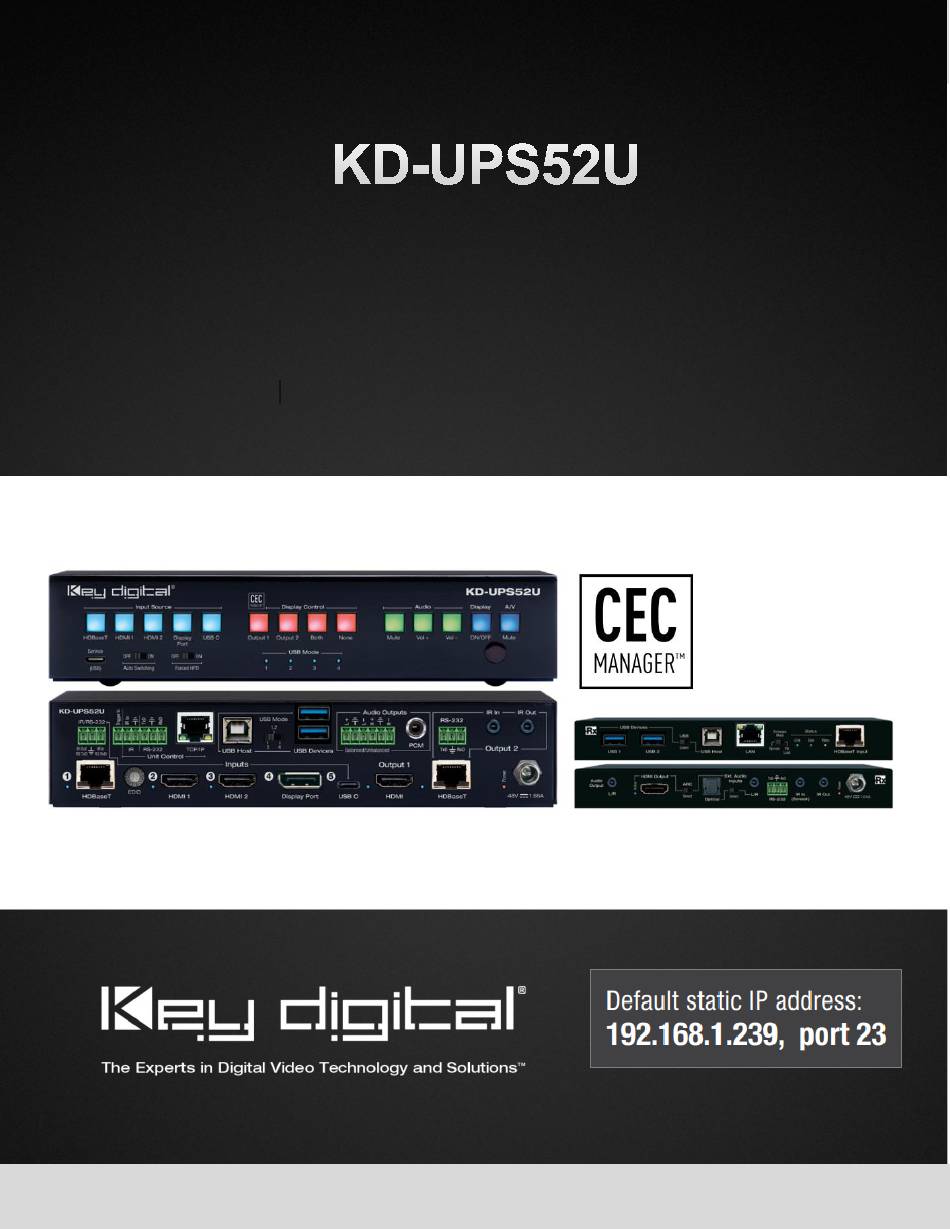

Rev 1.1 – Sep, 2021
4K/18G Multi-Format, Soft Codec Enabling Presentation
Switcher with Auto Switching, 5 Inputs (HDBT, 2xHDMI, DP,
USB-C), 2 Mirrored Outputs (HDBT, HDMI), USB, LAN, ARC,
Audio De-Embed, IR, RS-232, IP Control, CEC Manager™.
Includes Rx.
Street Mt. Vernon, NY 10553 • www.keydigital.com
rd
521 East 3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-UPS52U and is the answer not in the manual?

Questions and answers

Related Manuals for Key Digital KD-UPS52U

Summary of Contents for Key Digital KD-UPS52U

  • Page 1 Rev 1.1 – Sep, 2021 4K/18G Multi-Format, Soft Codec Enabling Presentation Switcher with Auto Switching, 5 Inputs (HDBT, 2xHDMI, DP, USB-C), 2 Mirrored Outputs (HDBT, HDMI), USB, LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager™. Includes Rx. Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...

  • Page 2: Table Of Contents

    Rev 1.1 – Sep, 2021 Table of Contents About KD-UPS52U Quick Setup Guide Connect Configure Control Application Examples Mounting Options Connections, Buttons, and LEDs System Integration with KD-CamUSB, KD-Amp220, KD-App TCP/IP and RS-232 Commands Specifications Warranty Information Product Warnings & Safety Instructions 192.168.1.239...

  • Page 3: About Kd-Ups52U

    SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-UPS52U can also be controlled via trigger voltage and features status-monitoring LEDs.
  • Page 4 Rev 1.1 – Sep, 2021 • Ease of Integration: Complete configuration using Key Digital Management Software™ Pro • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth) • Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled •...
  • Page 5 Rev 1.1 – Sep, 2021 • Qty 4: Rack Ear Screw • Qty 1: RX Extender (model KD-X100MRx) • Qty 2: Mounting bracket for KD-X100MRx (L-Bracket) • Qty 4: L-Bracket mounting screw for KD-X100MRx • Qty 1: 6-pin blue color terminal block plug •...

  • Page 6: Quick Setup Guide

    (optional) from KD-UPS52U’s HDBaseT input to transmitter (sold separately) 5. Connect audio to send audio of the select source into KD-Amp220 use KD-UPS52U’s analog audio de- embed port. For other audio systems use the digital or analog outputs ports located on KD-UPS52U or KD-X100MRx.

  • Page 7: Configure

    Configure KD-UPS52U with Key Digital Management Software Pro (KDMS Pro). Download HERE 1. Connect to KD-UPS52U from your PC using the USB micro port on the face of the unit 2. Open the KDMS Pro software and perform a USB scan (fig. 1a). Choose “NO” and Start Scan when the USB Device Scan prompt appears (fig.
  • Page 8 Rev 1.1 – Sep, 2021 7. Set the EDID handshaking to position “A” for 4K video with 2ch audio. Choose setting “4” for 1080p video with 2ch audio. 8. Refer to the Connections, Buttons, and LEDs section for more information on the remaining control rotaries, slide switches, etc.
  • Page 9 Rev 1.1 – Sep, 2021 Additional configuration steps for control by KD-App and KDMS Pro 9. Set the desired Input/Output names by entering the Input/Output Settings section of the properties window, and selecting the Change Input/Output Name button (fig. 3a), selecting the desired input/output and entering the name (fig.

  • Page 10: Control

    Option 1: Control via Remote Control 1. Output 1 display/projector control via CEC 2. Output 2 display/projector control via CEC 3. Input selection of KD-UPS52U connected sources 4. KD-CamUSB (sold separately) IR control Street Mt. Vernon, NY 10553 • www.keydigital.com...
  • Page 11 192.168.1.239, with port 23 • For the past 10 years, most Key Digital matrix switches have supported a standard audio + video switching command. KD-UPS52U is also controllable by this command, so if you have previously integrated Key Digital matrixes by third-party control systems you may have success using the same driver/module.

  • Page 12: Application Examples

    Test for proper operation of the unit and cables in your system before permanently securing the unit for final installation. Ensure that you leave enough ventilation space to provide sufficient airflow and cooling Application Examples Complete Key Digital Presentation Solution Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 13 Rev 1.1 – Sep, 2021 CEC Controlled Conferencing Room Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 14 Rev 1.1 – Sep, 2021 iPad Presentation Switcher and Camera Control Large Room with Table Plug-in Switcher Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...

  • Page 15: Mounting Options

    Rev 1.1 – Sep, 2021 Mounting Options KD-UPS52U includes hardware for multiple mounting options. • For mounting in a standard-width rack, use the included half-rack blank and short rack ear • For mounting under table or on wall, use the included L brackets •...

  • Page 16: Connections, Buttons, And Leds

    Rev 1.1 – Sep, 2021 Connections, Buttons, and LEDs Inputs and EDID Handshaking Rotary HDBaseT (Input 1): Using a CAT5e/6 cable, connect from a compatible KD Transmitter. • – Black box transmitter with 2x HDMI inputs, and USB host and device ports. Designed for KD-PS22UTx under-table installation.
  • Page 17 Rev 1.1 – Sep, 2021 • Supports HDR • For USB-C, cable must be USB-C 3.2 Gen 2 to support AV at the needed bandwidth • Utilizes Display Port over USB-C alt mode • Supports Display Port version 1.3 and previous •...
  • Page 18 Rev 1.1 – Sep, 2021 Outputs The HDMI and HDBaseT outputs are mirrored. The selected source is viewed on both outputs simultaneously. HDMI (Output 1): Using an HDMI cable, connect your display or system. For DVI-D/DVI-I sources use an appropriate adapter. For Display Port, use active adapters. •...
  • Page 19 • Used for configuration and control from PC via KDMS Pro or third-party control terminal • Used for firmware updates (consult with Key Digital tech support before updating firmware) • Supports USB driver for Windows 10, 7, XP, Mac, Linux •...
  • Page 20 Rev 1.1 – Sep, 2021 Front Panel Buttons Input Source (Blue) • Used for selecting the desired source to be routed to both outputs. • When an input source selection occurs, a Power On CEC command is sent to the display(s) enabled on the Display Control button section CEC Manager™...
  • Page 21 Mode 1: USB Host is connected to the KD Transmitter, USB device is connected to HDBaseT Rx Mode 2: USB Host is connected to the KD Transmitter, USB device is connected to KD-UPS52U device ports Mode 3: Supports two routes for USB control •...
  • Page 22 Rev 1.1 – Sep, 2021 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 23 • Default static IP address is 192.168.1.239, port 23 • Connect an ether cable from the KD-UPS52U to a network router or connect a straight through cable directly from a PC • Unit configuration, control, and firmware updates are achieved with Key Digital Management software downloaded at www.keydigital.com...
  • Page 24 Pin 3 = IR In / RS-232 Rx Data • Corresponds with IR or RS-232 control ports of compatible KD Transmitter o Note: If IR signal input at KD-UPS52U and output at the KD Transmitter is required, please use KD-PS22UTx. KD-X4x1WUTx...
  • Page 25 IF Auto sensing has been set via any method other than the front toggle switch, it will be automatically disabled when the KD-UPS52U is manually controlled by the front panel button, IR, RS-232, TCP/IP, or USB control. If fixed Auto Switching is required, please set via the front toggle switch Forced HPD Troubleshooting Tool •...

  • Page 26: System Integration With Kd-Camusb, Kd-Amp220, Kd-App

    Rev 1.1 – Sep, 2021 System Integration with KD-CamUSB, KD-Amp220, KD-App KD-UPS52U may be integrated with KD-CamUSB and/or KD-Amp220 and controlled by the Key Digital iOS app for a simplistic, user-friendly AV system that does not require programming a professional control system.
  • Page 27 Rev 1.1 – Sep, 2021 Audio Control With KD-Amp220 control mode activated, the Audio control page may be entered, offering speaker volume and mute, microphone mix level (optional), and KD-Amp220 source selection. Enable Microphone Control in KDMS Pro to make the Mic mix level controls visible.

  • Page 28: Tcp/Ip And Rs-232 Commands

    A single TCP/IP connection made at KD-UPS52U, KD-X100MRx, or KD Transmitter enables IP connection to the KD-UPS52U and the KD Transmitter. Ensure that the KD- UPS52U and the KD Transmitter each device has been assigned a unique IP address to avoid IP conflicts.
  • Page 29 Rev 1.1 – Sep, 2021 -- SPO SI yy : Set Output to Video Input yy -- SPO xx SI yy : Set Output to Video Input yy -- SPO xx ON/OFF : Set Output xx ON/OFF -- SPO xx VM E/D : Set Output xx Video Mute Enable/Disable -- SPO xx DBG ON/OFF : Set Output xx Debug Mode ON/OFF...
  • Page 30 -- SPC DF00 : Reset to Factory Defaults without Network Reset ------------------------------------------------------------------------- Status Command (STA). Returns unit status and settings in readable format: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- -- Model: KD-UPS52U, Device Name: KDUPS52U_0001 -- Main F/W Ver: 1.00, Splitter Ver: 1.00,...

  • Page 31: Specifications

    Rev 1.1 – Sep, 2021 -- 02 : HDMI2, LINK = OFF -- Video Output Status (D=Disable, E=Enable) -- HDMI Output : IN = 01, OUT = ON , V/MUTE = D, LINK = ON , DBG = OFF -- -- HDBT Output : IN = 01, OUT = ON , V/MUTE = D, LINK = ON , DBG = OFF -- LRM = OFF -- Display Output Status (CEC Control)

  • Page 32: Warranty Information

    • Packaging Weight: 11.0 lbs / 5kg Warranty Information All Key Digital® products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm Product Warnings &...
  • Page 33 Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and risk damage to your unit and associated equipment. Street Mt. Vernon, NY 10553 • www.keydigital.com...
