Key Digital
, led by digital video pioneer Mike Tsinberg,
®
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high-end video and control are important. Key Digital
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Key Digital
®
Systems
::
521 East 3rd Street
Phone
:
914.667.9700
Fax
:
914.668.8666
Rev 0 – Apr 2016
®
::
Mount Vernon, NY 10553
Web
:
www.keydigital.com

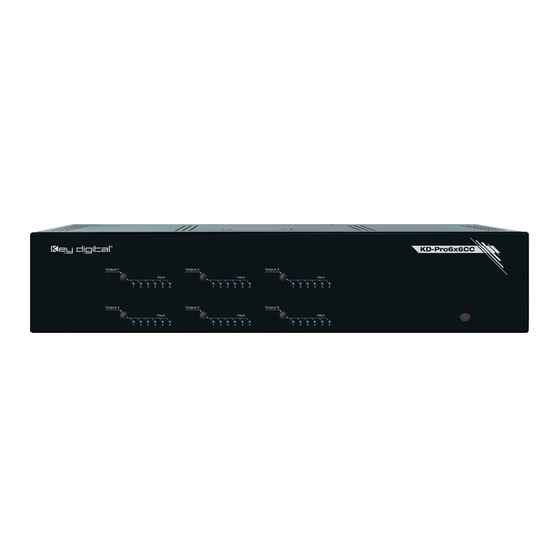

KD-Pro8x8CC
KD-Pro6x6CC
HDBaseT/HDMI via Single CAT5e/6
Matrix Switchers with built-in
Compass Control
support Ultra HD/4K & HDCP 2.2
Operating Instructions
The Experts in Digital Video Technology and Solutions
,
®
™
Advertisement
Table of Contents
Related Manuals for Key Digital KD-Pro6x6CC
Summary of Contents for Key Digital KD-Pro6x6CC
- Page 1 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
-
Page 2: Table Of Contents
How to Contact Key Digital ........ -
Page 3: About Kd-Xswrx
RS-232 command ‘H’. A detailed list of RS-232 commands are available later in this guide. If newer firmware is made available, complete updating instructions will be included with it. Check › the Key Digital website for any firmware updates. www.keydigital.com/items.asp?ItemCode=KDPro8x8CC&Company=KEY »... -
Page 4: Application Example
Front Panel Buttons and LEDs Application Example Output Select Buttons Satellite (x3) RJ45 WiFi HDMI WiFi Router Ethernet iPad KD-CSLX1 RF Repeater (Light/Shade Control) Cable (x3) RJ45 Lights HDMI Input LEDs IR Eye There are 6/8 Output buttons along the front panel. ›... -
Page 5: Quick Setup Guide
› Supports IR or RS-232 routing or ARC output. See chart below for 3.5mm jack configuration: Use the shortest possible HDMI cable when connecting the KD-XSWRx to the Display. Key Digital › recommends cables 6 ft. or shorter for optimum performance. -
Page 6: Settings
Settings Point-to-Point IR Control Routing: To configure the path of IR control signals from an External I/O Port to an RJ45 output, use the › The KD-Pro6x6/8x8CC features a library of 15 internal EDID (Extended Display Identification command “SPOC xx IRR 1 S yy”. xx=IR destination, yy=IR source Data) files, in addition to allowing any Input source to receive a copy of the EDID information of To configure the path of IR control signals from an External I/O Port to an HDMI output, use the ›... -
Page 7: Remote Control
Remote Control The possible EDID settings can range from ‘01’ to ‘15’. (‘07’ is the default). You may switch inputs on the KD-Pro6x6/8x8CC by using the supplied IR Remote control. You can also perform basic EDID adjustments with the IR remote. Copy EDID from HDMI Output 1 Please see the below chart for IR remote commands. -
Page 8: Rs-232 & Tcp/Ip Commands
Example: To copy the EDID information from HDMI Output 2 to Input 4, issue the command: » RS-232 & TCP/IP Commands ‘SPCEDID04H02’ Example: To write the EDID information from the built-in default EDID library using default The KD-Pro6x6/8x8CC provide access to all functions when used with an RS-232 control system. »... - Page 9 RS-232, USB, TCP/IP Command List: SPO A PT Set All Input/Output Video to Pass-Through (Ex, Output1 = Input1, Output2 = Input2…., Output8 = Input 8) Command Description SPOxx HFM A/D/H Set Output xx Video Format: Commands may require an address prefix if unit has been Auto: Set output video format automatically based on connected addressed ( zz=[00-99]) display...
-
Page 10: Firmware Upgrade
Route RS232 from xx to I/O Port yy from z; Download the KD-ProCC Device Manager from the product page: › xx=RS232destination, yy=RS232 source, z=RS232 Origin Port Type The KD-ProCC Device Manager software supports both KD-Pro6x6CC & KD-Pro8x8CC » SPC ARCxx ON/OFF Set Output xx ARC ON/OFF matrix models) EDID Setup, xx = [01-08,A], yy = [01-08], zz = [01-15] www.keydigital.com/items.asp?ItemCode=KDPro8x8CC&Company=KEY... - Page 11 Firmware Upgrade Procedure Select Auto Update selection box, and then begin the firmware update by selecting Next › Connect the KD-Pro6x6/8x8CC unit to your PC via USB › Open the Device Manager software and select Download on the Home Page: ›...
-
Page 12: Audio Return Channel
Audio Return Channel Using the KD-Pro6x6/8x8CC in a Compass Control project Audio Return Channel features rely on CEC to work effectively. CEC is enabled through the Create a new Compass Control project (Note: The below images depict KD-HD8x8Lite. Simply › select the desired KD-Pro6x6/8x8CC modules in the below steps as they become available in KD-Pro6x6/8x8CC matrix switcher. - Page 13 › Choose TCP/IP Module Type » Then, select the Key Digital brand » Choose your respective KD-ProCC model (KD-Pro6x6CC or KD-Pro8x8CC) » and press Add Device Download the new project from the Compass Control cloud to the iOS controller(s) ›...
-
Page 14: Specifications
Ensure your iOS controller(s) are on the same network as the KD-ProCC unit and press Start in › KD-Pro8x8CC: 16.5 lb. » the Compass Control app KD-Pro6x6CC: 14.3 lb. » Allow a few moments for the iOS Controller(s) to synchronize information with the Master › controller. -
Page 15: How To Contact Key Digital
Warranty and risk damage to your unit and associated equipment. ® All Key Digital ® products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm...
