Key Digital KD-HDMS1X15 Setup Manual

8 inputs to 8 outputs hdmi matrix switcher hercules series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KD-HDMS8X8
8 Inputs to 8 Outputs HDMI Matrix Switcher
Also Available in Configurable Models Below:
KD-HDMS1X15, 2X14, 3X13, 4X12, 5X11, 6X10, 7X9
KD-HDMS15X1, 14X2, 13X3, 12X4, 11X5, 10X6, 9X7
Set Up Guide
Key Digital
Hercules Series

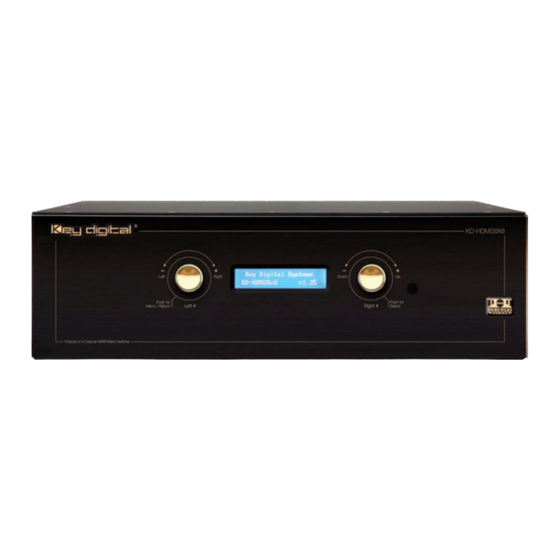

KD-HDMS8x8 is a HDMI Matrix Switcher capable of switching
®
™
up to 8 HDMI/DVI Video Sources/Inputs to 8 independent Zones/Outputs via HDMI and CAT5.
Features card slot architecture providing flexible Input/Output configurations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-HDMS1X15 and is the answer not in the manual?

Questions and answers

Related Manuals for Key Digital KD-HDMS1X15

Summary of Contents for Key Digital KD-HDMS1X15

  • Page 1 KD-HDMS8X8 8 Inputs to 8 Outputs HDMI Matrix Switcher Also Available in Configurable Models Below: KD-HDMS1X15, 2X14, 3X13, 4X12, 5X11, 6X10, 7X9 KD-HDMS15X1, 14X2, 13X3, 12X4, 11X5, 10X6, 9X7 Set Up Guide Key Digital Hercules Series KD-HDMS8x8 is a HDMI Matrix Switcher capable of switching ®...

  • Page 2: Table Of Contents

    16 active outputs (8 HDMI/DVI and 8 CAT5) enables flexible integration » Full Audio control per output for volume, treble, bass, balance, and lip-sync from analog or » 2ch. PCM HDMI digital sources © 2010 Key Digital, Inc. All rights reserved.

  • Page 3: Connections, Lcd And Button Map

    Page 3 Serial IR, Optical IR, Front Panel Control, Discrete Remote Codes, RS-232 and TCP/IP . » Supports major control systems such as AMX , Colorado vNet , Control4 , Crestron , RTI ® ® ® ® ® Savant, Universal , Xantech ®...
  • Page 4 Page 4 Main Control Panel Operation Mode Switch Rear IR Eye (Receiver) Power Switch to “Program” mode Rear IR receiver for 12V/8.33A (100W) For manufacturers use only when updating firmware remote control Power Supply TCP/IP RS-232 Serial IR This is the main TCP/IP port for interfacing The USB port is for The main RS-232/DB9 To Input from Control interface...

  • Page 5: Application Example

    Page 5 Application Example Desktop PC Desktop PC Satellite 1 Satellite 2 Cable 1 Cable 2 Blu-Ray Blu-Ray KD-BBTX KD-BBTX KD-BBTX KD-BBTX Transmits: »1080p/60Hz resolution up to 140 ft »1080p/24, 1080i, 720p and 480i/p resolutions up to 270 ft Control System Serial IR »...

  • Page 6: Quick Setup Guide

    Page 6 Quick Setup Guide Initial Setup & Operation for HDMI via Front Panel The KD-HDMS8x8 is set by default to HDMI Input. To change these default settings please see “Initial Setup & Operation via CAT5 Baluns” section below. Insert HDMI cables into card slots 1 through 16 Slots 1-8 are labeled Rx, and are Input Card Slots 1-8.
  • Page 7 Page 7 Initial Setup & Operation via CAT5 Baluns When using Key Digital Baluns (RX/TX) you must use the following procedure to correctly format both the baluns and HDMS8x8 matrix switcher for correct operation. NOTE: Slots 1-8 are inputs, slots 9-16 are outputs.
  • Page 8 Page 8 Right Selector Sub-Menu: After selecting a specific Main Menu (1-9) option with the left selector, press the right ½ selector to select its Sub-Menu. You will be taken to the sub-menu for the main menu option you had previously selected. Sub-Menu values: Turn this selector to scroll through the sub-menu selections.
  • Page 9 Page 9 HDMI » External Analog » External Digital » CAT5 » Use the right selector to choose these and push to confirm choice. These correspond to which Audio signal type will be passed to the selected Output number from your previously selected Input number.
  • Page 10 Page 10 “EDID Set Up” options: Input 01-08 plus All Inputs » Use the left selector to choose these. For each Input selected, ’01-08’ and ‘All’, there are EDID Set Up sub-menu choices: HDMI Output 01 through 08 » CAT5 Output 01 through 08 »...
  • Page 11 Page 1 1 Factory Default Settings: Video = HDMI » Input = » Input Audio = Analog » Output Audio = Analog » Audio = HDMI » Port = HDMI » Output Volume = » Output Bass = » Output Middle = »...

  • Page 12: Ir Remote Command List

    KD-HDMS8x8 IR Remote Command List Below are listed some of the most common remote commands. A complete list of all IR Remote commands can be found at the Key Digital website www.keydigital.com The following commands assume an 8x8 configuration. XX = Output Card Number (Range 01~08) [Outputs 1-8] »...
  • Page 13 Page 13 Initial Setup & Operation via RS-232 A complete list of RS-232 Commands can be found at Key Digitals website: www.keydigital.com Insert HDMI cables into card slots 1 through 8 Slots 1-8 are labeled Rx, and are Input Card Slots. »...
  • Page 14 Page 14 Input and Output numbers assume an 8x8 configuration. Values for Commands: Inputs: yy = 01-08 or A = All, U = Up, D = Down Outputs: xx = 01-08 or A = All, U = Up. D = Down System Input Setup Commands, xx = [01-08, A], (A=All): Set Video Input SPIxxVy...
  • Page 15 Page 15 System Control Setup Commands: Copy EDID SP C EDID xx = Input card To copy the EDID information from an Output card information to Rx xx H/C/D yy number (01-08), (display), to an Input card (source). card slot, from Example: To copy the EDID information from HDMI H = HDMI, Tx card slot yy...

  • Page 16: Specifications

    Page 16 Specifications Video Input Interface (HDMI Input Card): Has both HDMI and CAT5 (RJ45) Inputs, only 1 » of these Inputs can be selected per Input card Supports HDMI 1.3a and 3D Feature of HDMI1.4 » CAT5(RJ45) works only with KD-BBTX Balun and HDMI with KD-CATHD(TX) Baluns. »...
  • Page 17 Page 1 7 Front Panel Interface: » 2 row LCD Display, two rotary knobs(left and right) with push-to-select action to control » menu choices for front panel control, and IR Eye IR Eye is only for Remote IR receiving sensor. »...

  • Page 18: Important Product Warnings & Safety Instructions

    Damage to the power supply or power plug » Exposure to rain or moisture » You MUST use the Power Supply provided with your unit or you VOID the Key Digital Warranty and risk damage to your unit and associated equipment. ®...

  • Page 19: How To Contact Key Digital

    ® Phone: 914-667-9700 ½ E-mail: tech@keydigital.com ½ Repairs and Warranty Service Should your product require warranty service or repair, please obtain a Key Digital Return Material ® Authorization (RMA) number by contacting us at: Phone: 914-667-9700 ½ E-mail: rma@keydigital.com ½...
  • Page 20 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high quality video imaging is important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
