Key Digital CEC MANAGER KD-UPS52U Operating Manual

4k/18g multi-format, soft codec enabling presentation switcher with auto switching, 5 inputs hdbt, 2xhdmi, dp, usb-c, 2 mirrored outputs hdbt, hdmi, usb, lan, arc, audio de-embed, ir, rs-232, ip control, cec manager includes rx.
Hide thumbs Also See for CEC MANAGER KD-UPS52U:
Table of Contents

Advertisement

Quick Links

Download this manual

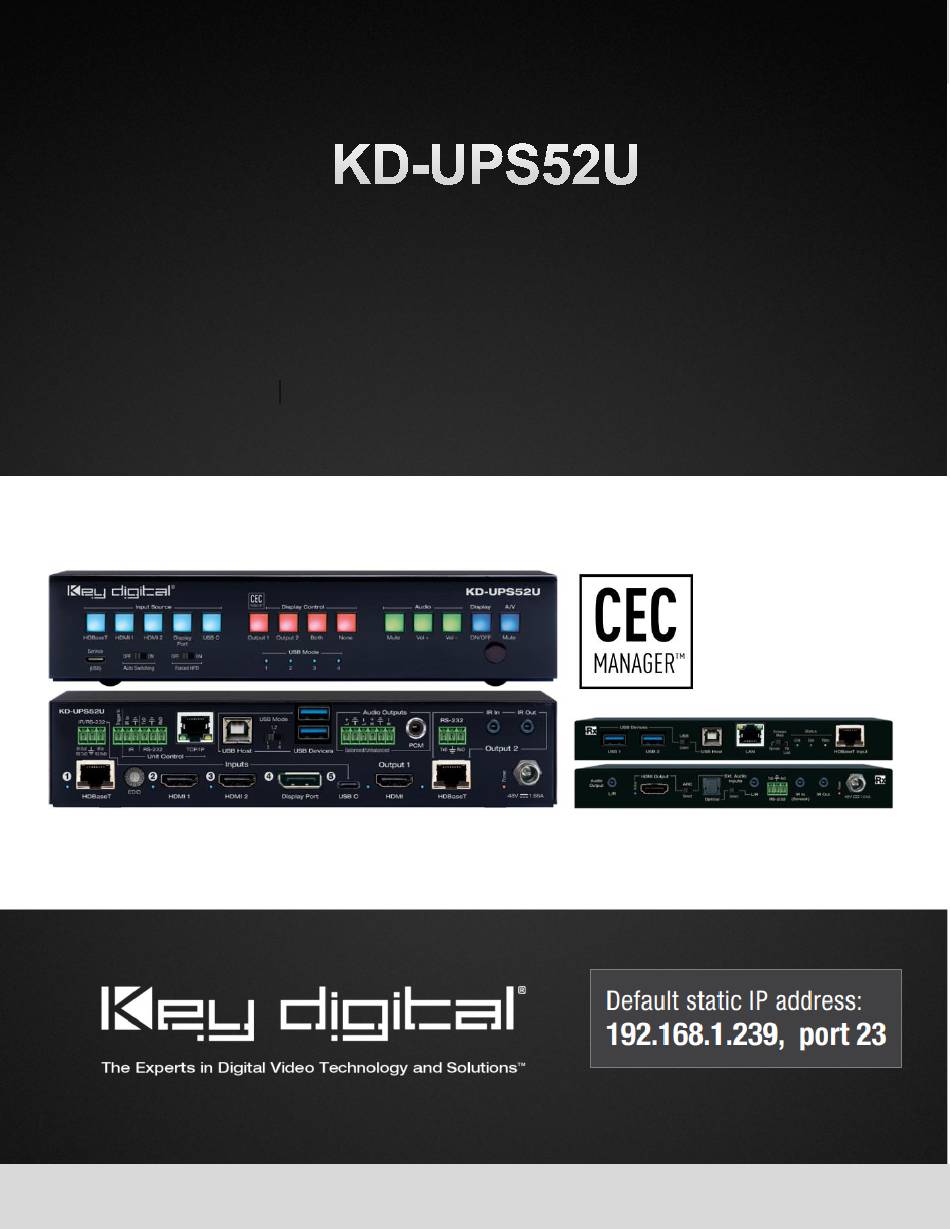

Rev 0 – Aug, 2020
4K/18G Multi-Format, Soft Codec Enabling Presentation
Switcher with Auto Switching, 5 Inputs (HDBT, 2xHDMI, DP,
USB-C), 2 Mirrored Outputs (HDBT, HDMI), USB, LAN, ARC,
Audio De-Embed, IR, RS-232, IP Control, CEC Manager™.
Includes Rx.
Street Mt. Vernon, NY 10553 • www.keydigital.com
rd
521 East 3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEC MANAGER KD-UPS52U and is the answer not in the manual?

Questions and answers

Related Manuals for Key Digital CEC MANAGER KD-UPS52U

Summary of Contents for Key Digital CEC MANAGER KD-UPS52U

  • Page 1 Rev 0 – Aug, 2020 4K/18G Multi-Format, Soft Codec Enabling Presentation Switcher with Auto Switching, 5 Inputs (HDBT, 2xHDMI, DP, USB-C), 2 Mirrored Outputs (HDBT, HDMI), USB, LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager™. Includes Rx. Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...

  • Page 2: Table Of Contents

    Rev 0 – Aug, 2020 Table of Contents About KD-UPS52U Quick Setup Guide Connect Configure Control Application Examples Mounting Options Connections, Buttons, and LEDs System Integration with KD-CamUSB, KD-Amp220, KD-App TCP/IP and RS-232 Commands Specifications Warranty Information Product Warnings & Safety Instructions 192.168.1.239 Default IP Address: Quick Setup Guide...

  • Page 3: About Kd-Ups52U

    KD-AMP220 and KD-CAMUSB will enable an app-ready all-in-one solution for control of video switching, sound and speech enforcement, and PTZ camera control. Key Digital CEC Manager™ enables basic controls of the connected displays for a simplistic all-in-one integration system. KD-UPS52U presentation switcher supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes.
  • Page 4 Rev 0 – Aug, 2020 • Ease of Integration: Complete configuration using Key Digital Management Software™ Pro • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth) • Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled •...
  • Page 5 Rev 0 – Aug, 2020 • Qty 4: Rack Ear Screw • Qty 1: RX Extender (model KD-X100MRx) • Qty 2: Mounting bracket for KD-X100MRx (L-Bracket) • Qty 4: L-Bracket mounting screw for KD-X100MRx • Qty 1: 6-pin blue color terminal block plug •...

  • Page 6: Quick Setup Guide

    Rev 0 – Aug, 2020 Quick Setup Guide Begin with the KD-UPS52U and KD-X100MRx, KD Transmitter (sold separately), all source, display devices, audio system, and any other connected peripherals powered off. Connect 1. Connect video sources into the HDMI, Display Port, and USB-C input ports of KD-UPS52U a.

  • Page 7: Configure

    Rev 0 – Aug, 2020 Integrated Systems Wiring: KD-UPS52U with KD-Amp220 and KD-CamUSB Configure Configure KD-UPS52U with Key Digital Management Software Pro (KDMS Pro). Download HERE 1. Connect to KD-UPS52U from your PC using the USB micro port on the face of the unit 2.
  • Page 8 Rev 0 – Aug, 2020 7. Set the EDID handshaking to position “A” for 4K video with 2ch audio. Choose setting “4” for 1080p video with 2ch audio. 8. Refer to the Connections, Buttons, and LEDs section for more information on the remaining control rotaries, slide switches, etc.
  • Page 9 Rev 0 – Aug, 2020 Additional configuration steps for control by KD-App and KDMS Pro 9. Set the desired Input/Output names by entering the Input/Output Settings section of the properties window, and selecting the Change Input/Output Name button (fig. 3a), selecting the desired input/output and entering the name (fig.

  • Page 10: Control

    Rev 0 – Aug, 2020 11. If utilizing KD-AMP220 integration control mode, choose the KD-AMP220 Control selection box (fig. 5a) in the Audio/Video properties section. To control the mix level of KD-AMP220’s microphone input, choose the selection box for Microphone Control (fig. 5b). 12.
  • Page 11 192.168.1.239, with port 23 • For the past 10 years, most Key Digital matrix switches have supported a standard audio + video switching command. KD-UPS52U is also controllable by this command, so if you have previously integrated Key Digital matrixes by third-party control systems you may have success using the same driver/module.

  • Page 12: Application Examples

    Rev 0 – Aug, 2020 Application Examples Complete Key Digital Presentation Solution CEC Controlled Conferencing Room Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 13 Rev 0 – Aug, 2020 iPad Presentation Switcher and Camera Control Large Room with Table Plug-in Switcher Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...

  • Page 14: Mounting Options

    Rev 0 – Aug, 2020 Mounting Options KD-UPS52U includes hardware for multiple mounting options. • For mounting in a standard-width rack, use the included half-rack blank and short rack ear • For mounting under table or on wall, use the included L brackets •...

  • Page 15: Connections, Buttons, And Leds

    Rev 0 – Aug, 2020 Connections, Buttons, and LEDs Inputs and EDID Handshaking Rotary HDBaseT (Input 1): Using a CAT5e/6 cable, connect from a compatible KD Transmitter. • – Black box transmitter with 2x HDMI inputs, and USB host and device ports. Designed for KD-PS22UTx under-table installation.
  • Page 16 Rev 0 – Aug, 2020 • Supports HDR • Utilizes Display Port over USB-C alt mode • Supports Display Port version 1.3 and previous • Compliant with HDCP 2.2 and previous Supported standard 4K video formats: EDID Handshaking Rotary • EDID authentication is provided from the unit to the connected inputs/sources.
  • Page 17 Rev 0 – Aug, 2020 Outputs The HDMI and HDBaseT outputs are mirrored. The selected source is viewed on both outputs simultaneously. HDMI (Output 1): Using an HDMI cable, connect your display or system. For DVI-D/DVI-I sources use an appropriate adapter. For Display Port, use active adapters. •...
  • Page 18 • Used for configuration and control from PC via KDMS Pro or third-party control terminal • Used for firmware updates (consult with Key Digital tech support before updating firmware) • Supports USB driver for Windows 10, 7, XP, Mac, Linux •...

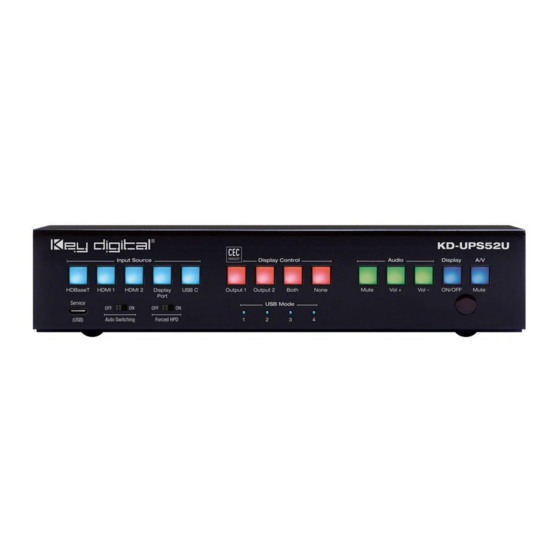

  • Page 19 Rev 0 – Aug, 2020 Front Panel Buttons Input Source (Blue) • Used for selecting the desired source to be routed to both outputs. • When an input source selection occurs, a Power On CEC command is sent to the display(s) enabled on the Display Control button section CEC Manager™...
  • Page 20 Rev 0 – Aug, 2020 USB Ports and Mode Switch USB Host Port • Used for connecting to USB host (ie computer, conferencing appliance) • Not used for connected to USB devices (ie web cam, USB mic, keyboard, mouse, touchscreen) •...
  • Page 21 Rev 0 – Aug, 2020 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
  • Page 22 • Connect an ether cable from the KD-UPS52U to a network router or connect a straight through cable directly from a PC • Unit configuration, control, and firmware updates are achieved with Key Digital Management software downloaded at www.keydigital.com •...
  • Page 23 Rev 0 – Aug, 2020 HDBaseT Control Pass-Thru Ports Input 1 HDBaseT IR/RS-232 Pass-Thru • 3-pin terminal block for IR or RS-232. • IR and RS-232 extensions not supported simultaneously • Maximum supported IR burst frequency = 55kHz • Pinout: o Pin 1 = IR Out / RS-232 Tx Data o Pin 2 = Ground o Pin 3 = IR In / RS-232 Rx Data...
  • Page 24 Rev 0 – Aug, 2020 Power • 48V/1.04A (50W) Power Supply • Provides power to KD-UPS52U, KD-X100MRx, and the connected KD Transmitter WARNING: Do NOT connect power supply at KD-UPS52U, KD-X100MRx, and/or KDPS22UTx simultaneously. Auto Switching and Forced HPD Switches Auto Switching •...

  • Page 25: System Integration With Kd-Camusb, Kd-Amp220, Kd-App

    Rev 0 – Aug, 2020 System Integration with KD-CamUSB, KD-Amp220, KD-App KD-UPS52U may be integrated with KD-CamUSB and/or KD-Amp220 and controlled by the Key Digital iOS app for a simplistic, user-friendly AV system that does not require programming a professional control system.
  • Page 26 Rev 0 – Aug, 2020 Audio Control With KD-Amp220 control mode activated, the Audio control page may be entered, offering speaker volume and mute, microphone mix level (optional), and KD-Amp220 source selection. Enable Microphone Control in KDMS Pro to make the Mic mix level controls visible.

  • Page 27: Tcp/Ip And Rs-232 Commands

    Spaces are shown for clarity; commands should NOT have any spaces • After a new command is received, a prompt should be sent back Help Command (H). Returns entire API in readable format: ------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- KD-UPS52U F/W Version : 1.00 -- H...
  • Page 28 Rev 0 – Aug, 2020 -- SPO SI yy : Set Output to Video Input yy -- SPO xx SI yy : Set Output to Video Input yy -- SPO xx ON/OFF : Set Output xx ON/OFF -- SPO xx VM E/D : Set Output xx Video Mute Enable/Disable -- SPO xx DBG ON/OFF : Set Output xx Debug Mode ON/OFF...
  • Page 29 -- SPC DF00 : Reset to Factory Defaults without Network Reset ------------------------------------------------------------------------- Status Command (STA). Returns unit status and settings in readable format: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- -- Model: KD-UPS52U, Device Name: KDUPS52U_0001 -- Main F/W Ver: 1.00, Splitter Ver: 1.00,...

  • Page 30: Specifications

    Rev 0 – Aug, 2020 -- 02 : HDMI2, LINK = OFF -- Video Output Status (D=Disable, E=Enable) -- HDMI Output : IN = 01, OUT = ON , V/MUTE = D, LINK = ON , DBG = OFF -- -- HDBT Output : IN = 01, OUT = ON , V/MUTE = D, LINK = ON , DBG = OFF -- LRM = OFF -- Display Output Status (CEC Control)

  • Page 31: Warranty Information

    • Packaging Weight: 11.0 lbs / 5kg Warranty Information All Key Digital® products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm Product Warnings &...
  • Page 32 Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and risk damage to your unit and associated equipment. Street Mt. Vernon, NY 10553 • www.keydigital.com...
