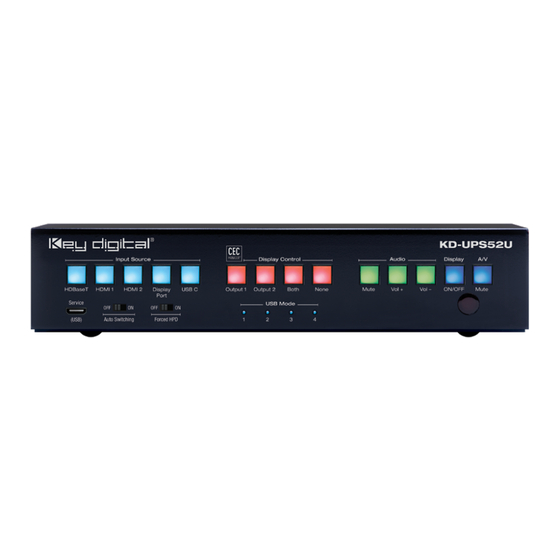

KD-UPS52U
4K/18G USB/Universal Presentation Switcher
with 5 Inputs (HDBT, 2xHDMI, DP, USB-C), 2 Mirrored
Outputs (HDBT, HDMI), LAN, ARC, Audio De-Embed,
IR, RS-232, IP Control, CEC Manager
. Includes Rx.
™
Quick Setup Guide
The Experts in Digital Video Technology and Solutions
™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Key Digital KDUPS52USB
Summary of Contents for Key Digital KDUPS52USB
- Page 1 KD-UPS52U 4K/18G USB/Universal Presentation Switcher with 5 Inputs (HDBT, 2xHDMI, DP, USB-C), 2 Mirrored Outputs (HDBT, HDMI), LAN, ARC, Audio De-Embed, IR, RS-232, IP Control, CEC Manager . Includes Rx. ™ Quick Setup Guide The Experts in Digital Video Technology and Solutions ™...
- Page 2 Product features and specifications are subject to change without notice. KD-UPS52U Key Digital KD-UPS52U is a 4K/18G KD-App Ready universal presentation switcher + soft-codec ® enabling interface with CEC Manager , auto switching, and audio de-embedding creating a user- ™...
- Page 3 KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector › controls via CEC Manager ™ Ease of Integration: Complete configuration using Key Digital Management Software ™ › Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 ›...
- Page 4 Ensure that you leave enough ventilation space to provide sufficient airflow and cooling. Begin with the KD-UPS52U unit, KD-X100MRx, Key Digital wall-plate transmitter (sold separately), all input/output devices, and audio system powered off. 1. Connect HDMI, Display Port, and USB-C sources to the input ports of KD-UPS52U unit For USB-C, cable must be USB-C 3 .2 Gen 2 to support AV at the needed bandwidth...
- Page 5 Application Example PC (DisplayPort) AppleTV Signage (USB-C) Cable/Satellite WiFi Router WiFi K E Y D I G I TA L APP READY KD-X4x1WUTx Presentation Switcher KD-PS42 with KD-AMP220 DSP/Mixer KD-UPS52U KD-AMP220 KD-X100MRx KD-AMP220 Line Bass Treble Mute Input Control RS-232 KD-CAMUSB Note: 18Gbps signal extension requires all 18Gbps supported HDMI cables .
- Page 6 CONFIGURE: Configure and control KD-UPS52U with Key Digital Management Software Pro (KDMS Pro) ® ™ ™ (Download Software Zip). 1. Connect to KD-UPS52U from your PC using the USB micro port on the face of the unit 2. Open the Key Digital...
- Page 7 7. Use the EDID rotary on the rear of the unit to choose the desired handshake that you wish to provide to your connected video sources . If installing a Key Digital wall plate transmitter (sold separately, please ensure that the EDID dial matches the desired setting .
- Page 8 12. If using KD-App or Key Digital Management Software (KDMS ) set the desired Input/Output names ® ™ ™ by entering the Input/Output Settings section of the properties window, and selecting the Change Input/Output Name button (fig . 3a), selecting the desired input/output and entering the name (fig . 3b): 13.
- Page 9 ™ › Input selection via buttons at bottom › Note: Blue buttons at center are for KD-CAMUSB control . › Option 2: Control via KD-App, Key Digital Management Software ® ™ KD-UPS52U is controllable by Key Digital’s user-friendly iOS App...
- Page 10 › Default static IP address: 192.168.1.239, port 23 For the past 10 years, most Key Digital matrix switches have supported a standard audio+video › switching command . KD-UPS52U is also controllable by this command, so if you have previously integrated Key Digital matrixes by third-party control systems you may have success using the same driver/module .
- Page 11 Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital Warranty ® and risk damage to your unit and associated equipment. Warranty Information...
- Page 12 Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers . Key Digital 521 East 3rd Street Mount Vernon, NY 10553 ® Phone 914.667.9700 914.668.8666 www.keydigital.com © 2019 Key Digital, Inc . All rights reserved .
