Model：R313DB

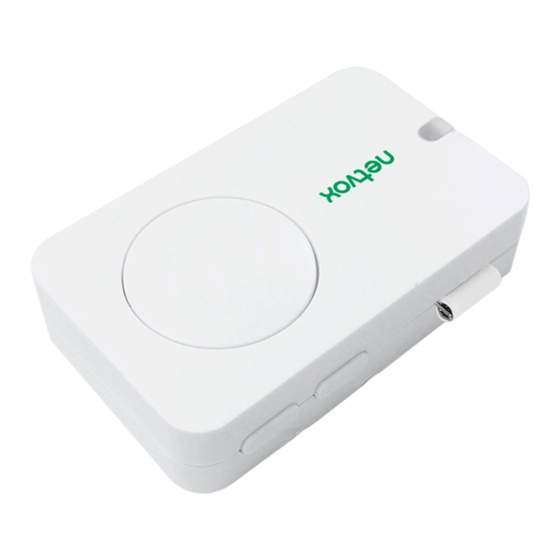

Wireless Vibration Sensor , Spring Type
Wireless Vibration Sensor
Spring Type
R313DB
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R313DB and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R313DB

Summary of Contents for netvox R313DB

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ................................2 2. Appearance ................................3 3. Main Features ................................3 4. Set up Instruction ..............................4 5. Data Report ................................5 6. Installation ................................8 7. Important Maintenance Instruction ......................... 9...

  • Page 3: Introduction

    1. Introduction R313DB is a wireless long-distance spring-type vibration device that is a Class A device based on the LoRaWAN protocol of NETVOX. It is compatible with the LoRaWAN protocol. LoRa Wireless Technology: LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation technique greatly extend the communication distance.

  • Page 4: Appearance

     Low power consumption and long battery life Note: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life time for varied models at different configurations.

  • Page 5: Set Up Instruction

    4.Set up Instruction On/Off Insert batteries (user may need a screwdriver to open) Insert 2 x 3V CR2450 button batteries into the battery slot in the correct direction and close the Power on back cover. Note: Require 2 button batteries to supply power at the same time. Turn on Press any function key till the green and red indicator flashes once.

  • Page 6: Data Report

    The vibration is “1”. No vibration is “0”. Note: The interval between two reports must be the MinTime. The reported data is decoded by the Netvox LoRaWAN Application Command document and http://loraresolver.netvoxcloud.com:8888/page/index Data report configuration and sending period are as following: Current Change＜...
  • Page 7 Example of ConfigureCmd FPort：0x07 Bytes Var (Fix =9 Bytes) CmdID DeviceType NetvoxPayLoadData CmdID– 1 byte DeviceType– 1 byte – Device Type of Device NetvoxPayLoadData– var bytes (Max=9bytes) Device Description Device NetvoxPayLoadData Type ConfigReport MinTime MaxTime BatteryChange Reserved 0x01 (2bytes Unit: s) (2bytes Unit: s) (1byte Unit: 0.1v) (4Bytes, Fixed 0x00)
  • Page 8 Example for MinTime/MaxTime logic: Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V Max Time Max Time leeping (Min Time) leeping (Min Time) Wakes up and Wakes up and Wake up and collects data collects data collects data REPORTS 2.8V REPORTS 2.8V...

  • Page 9: Installation

    Note: 1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data. 2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value, the device reports according to MinTime interval.

  • Page 10: Important Maintenance Instruction

    7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely. •...
