Model：R313CA
Wireless Dry Contact Sensors
Wireless Dry Contact Sensor
R313CA
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R313CA and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R313CA

Summary of Contents for netvox R313CA

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ......................... 2 2. Appearance ......................... 3 3. Main Features ......................3 4.Set up Instruction ......................4 5. Data Report ......................... 5 6. Installation ........................8 7. Important Maintenance Instruction ................10...

  • Page 3: Introduction

    1. Introduction The R313CA is a dry contact detection device for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with LoRaWAN protocol. When any dry contact of R313CA detects a change, R313CA will send a message to the gateway.

  • Page 4: Appearance

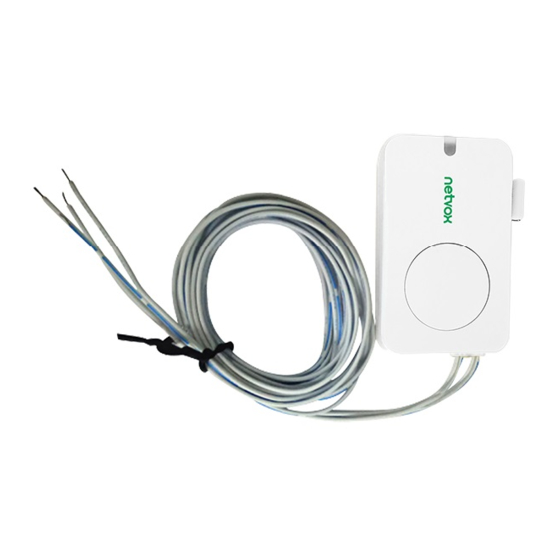

    2. Appearance Fig. R313CA appearance 3. Main Features  2 x 3V CR2450 button batteries  Compatible with LoRaWAN  Adopt SX1276 wireless communication module  Dry contact detection  Frequency hopping spread spectrum technology  Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional) ...

  • Page 5: Set Up Instruction

    4.Set up Instruction On/Off Power on Insert batteries (users need a flat blade screwdriver to open) The device (unjoin the network) is power off according to default when the battery is installed. Turn on Currently, press any button of the device shortly. After release, the red and green indicators will flash one time simultaneously that means the device turns on successfully.

  • Page 6: Data Report

    Triggering the dry contact: When the dry contact detects the state changing, the report will be sent immediately. Open:1 Close: 0 The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/page/index...
  • Page 7 0x82 (4Bytes,Fixed eportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) 0x00) (1) Configure R313CA device parameter MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v Downlink： 014C003C003C0100000000 Device return： 814C000000000000000000 (configuration success) 814C010000000000000000 (configuration failure) (2) Read R313CA device parameter Downlink： 024C000000000000000000 Device return：...
  • Page 8 824C003C003C0100000000 (device current parameter) Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime MaxTime Sleeping(MinTime) Sleeping(MinTime) Wakes up and collects data Wakes up and collects data Wake up and collects data REPORTS 2.8V REPORTS 2.8V REPORTS 2.8V Note: MaxTime=MinTime.

  • Page 9: Installation

    When the dry contact is open, the state of that is “1”. The dry contact sensor (R313CA) can be applied to the following scenes:  Various switches and buttons ...
  • Page 10 External power supply R313CA External power supply Wired smoke sensor Fig. Diagram of connecting with the wired smoke sensor...

  • Page 11: Important Maintenance Instruction

    7. Important Maintenance Instruction The device is a product with superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits.
