WE-EF FLD111 4 LED Installation And Maintenance Instructions Manual

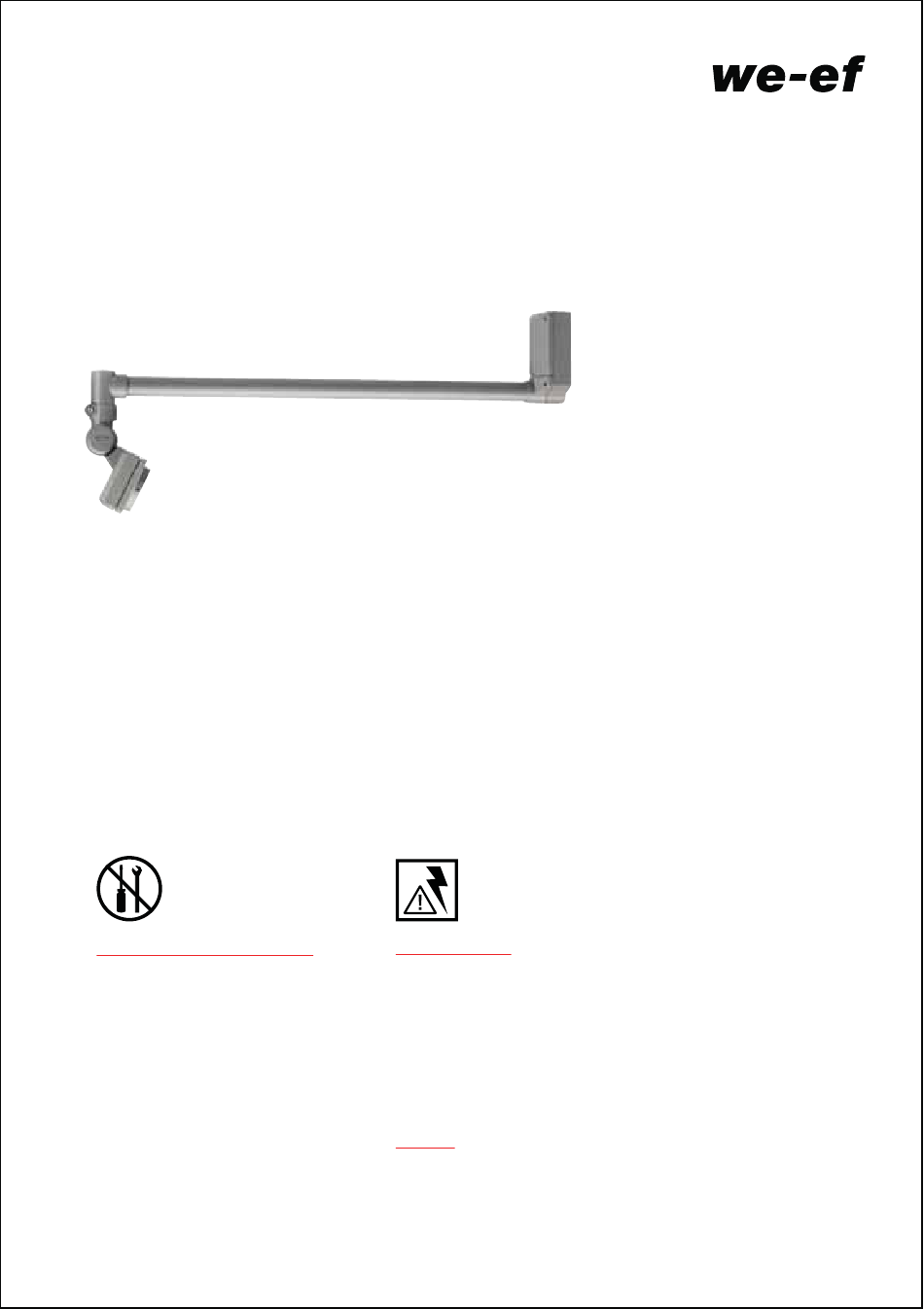

Bracket mounted projector

Download this manual

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product features built-in surge protection circuitry in compliance

with applicable standards.

For comprehensive protection of a luminaire installation against lightning

and electrical surges, it is essential to cover mains supply and data input

lines at the distribution board level, by using respective primary (Type 1)

and secondary (Type 2) surge arrestors in compliance with EN61643-11/

IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and

activated prior to luminaire installation. Also, disconnect luminaires

before operating high-power devices such as, for example, electrical

arc welders.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Bracket Mounted Projector

FLD111 #4 LED

Need help?

Do you have a question about the FLD111 4 LED and is the answer not in the manual?

Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Bracket Mounted Projector FLD111 #4 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance Refer to the instructions contained in this with applicable standards.
Page 2 Projector FLD111 #4 ø 6 IP66, Class I, ta = 40°C...
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on.
Page 4: Installation Procedure
Installation Installation Procedure The product must be installed and maintained A by loosening screws with latest building/construction and/or electrical B. Detach terminal connector C. regulations and relevant legislation. D (diameter ST4.8, type ISO 7049 or similar). Drill relevant Warning: holes E and insert nylon plugs F. installing and connecting the luminaire.
Page 6 Individual wiring Through wiring Individual wiring Through wiring...
