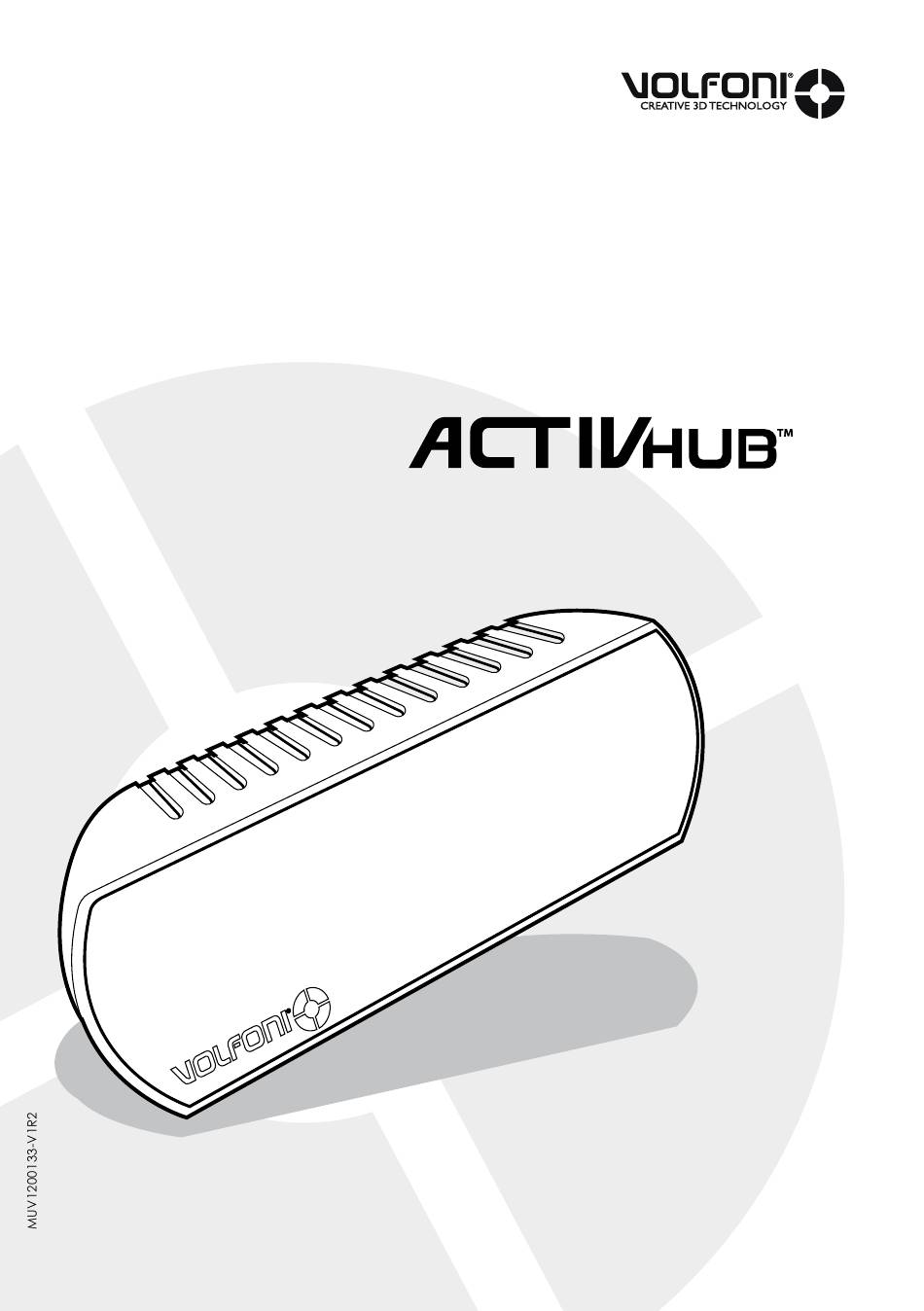

  • Page 1 User manual IR50 VPES-05000 model...

  • Page 2: Table Of Contents

    Content Page 1. OVERVIEW 2. cOntEnt/accESSORy 3. PROduct dEScRIPtIOn 3-7. 3.1 tEchnIcal SPEcIfIcatIOnS 3.2 hOW tO uSE thE actIVhub IR50 3.3 dEfault ROOm cOnfIguRatIOn 3.4 ElEctRIcal InfORmatIOn 3.5 actIVE 3d glaSSES 3.6 cEIlIng/Wall InStRuctIOnS 4. WaRRanty 5. REgulatORy StandaRdS 6. cOntactS...

  • Page 3: Overview

    1. PRODUCT OVERVIEW The Volfoni ActivHub IR50(REF VPES-05000) is a medium sized IR Emitter with a built-in synchro- nizer. Powerful and compact, the ActivHub IR50 designed for viewing 3D content in a small room, such as a theater or room up to 50 seats, for example.

  • Page 4: Content/Accessory

    2. CONTENTS / ACCESSORY The ActivHub IR50 includes: -1 IR Emitter -1 Power Supply (110V/240V) with US, EU, UK, AUS and CN adaptators -Universal mount with screws (ceiling moun- -2 cables for synchronization table) o1 SUB-D9/BNC cable o1 SUB-D9/VESA cable -User manual 3.

  • Page 5: How To Use The Activhub Ir50

    3.2 hOW tO uSE thE activhub IR50 3d The IR Emitter must be facing the screen and connected to the projector for synchroniza- tion. The IR Emitter emits the infra-red signal toward the screen. The signal bounces toward the audience wearing 3D active glasses.

  • Page 6: Active 3D Glasses

    3D video player Compatible 3D video projector HDMI cable BNC / SUB-D9 female or VESA Mini Din3 / Sub-D9 female ActivHub IR50 (2 meters by default - up to 30 meters) Power Supply 24V-240V (3 meters provided) Wireless Active 3D Glasses...

  • Page 7: Ceiling/Wall Instructions

    - Automatic infra-red synchronization, super wide receiving angle - Very low maintenance with high durability coating and generic low cost battery Refer to Volfoni website (www.volfoni.com) or contact Volfoni Offices to get more informa- tion on the EDGE 1.2 Active 3D Glasses.
  • Page 8 mOuntIng InStRuctIOnS (Step by Step) STEP STEP use the wall base to drill the holes with the given bit mark each hole to drill (for wood surface only) with a pencil. STEP STEP Insert wall anchors tightly screw the base to the wall (For solid concrete and drywall only) STEP assemble the arm to the base...

  • Page 9: Warranty

    4. WARRANTY The ActivHub IR50 is warrantied to the original purchaser for three to twelve months accor- ding to local legislation. Infra-red emitter/syn¬chronizer and cables should be returned in original box along with original proof of purchase. Infra-red emitter/synchronizers which are broken or scratched are not covered.
