Summary of Contents for Volfoni ActivHub IR100

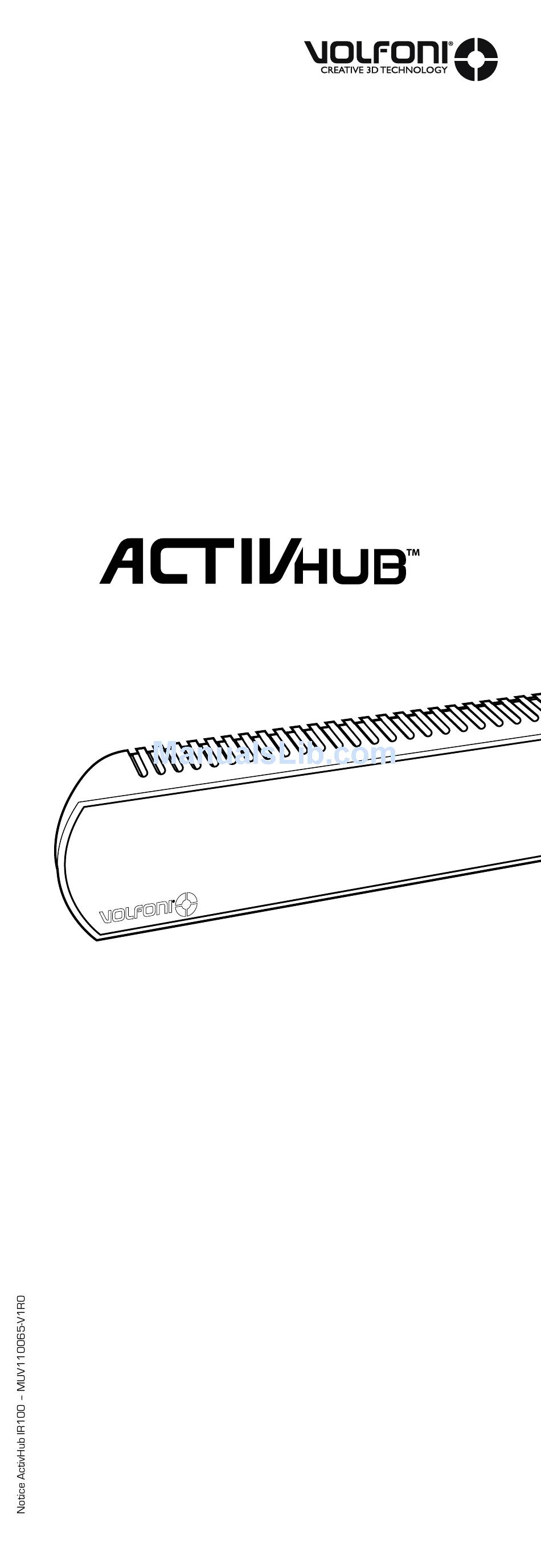

- Page 1 User Manual IR100 VPES-02000 models...
-
Page 2: Table Of Contents
SUMMARY Content Page 1. OVErViEw 1.1 - GEnEral PrESEntatiOn 1.2 - actiVHub ir100 cOmPOSitiOn 2. PrOduct dEScriPtiOn 2.1 - GlaSSES 2.2 - infra-rEd EmittEr 2.2.1 - EmittEr at a GlancE 2.2.2 - baSic SPEcificatiOnS 2.2.3 - dirEct infra-rEd SPrEad Of tHE EmittEr 2.2.4 - cOnfiGuratiOn rOOm... -
Page 3: General Presentation
• Antibacterial cleaning wipes • Adaptable “arms” to feet fit any head size 1.2 - activHub ir100 composition Thank you for using our ActivHub IR100. Before starting, please check if the following parts are included in the package. a full activHub ir100 includes: 1 •... -
Page 4: Product Description
2. PRodUct dEScRIPtIoN 2.1 - Glasses EdGE™ 1.2 The VOLFONI Active 3D Glasses use fast-response liquid crystal lenses to createthe best image quality. It is the brightest and most cost-saving 3D solution currently on the market. ir caPtOr keep it clean for... -
Page 5: Infra-Red Emitter
(bar, club, school, museum, events…) and small theater (up to 100 seats). Thanks to its lightweight design, the ActivHub IR100 enhances heat dissipation (LED life protection). It is provided with a universal mounting head for security and is easy to install. It is also convenient to target the screen with the emitter laser pointer. -
Page 6: Activhub Ir100 Fastening
3. ActIvHUB IR100 FAStENING INStALLAtIoN StEP Use the wall base to mark each hole to drill with a pencil. StEP Drill the holes with the given bit (for wood surface only) StEP Insert wall anchors (For solid concrete and drywall only) -
Page 7: Connection & Synchronization
HDMI cable SUB-D37 female / SUB-D9 female (3 meters by default - up to 30 meters) Power Supply 24V-240V (3 meters provided) Outlet ActivHub IR100 3D Ready PC System If the graphic card has 3 pin mini-DIN SYNC output port,... -
Page 8: Technical Specifications
We recommend to confide the set-up of 3D parameters and color adjustments directly to integrators. For any trouble, please consult our website www.volfoni.com, or send an email to support@volfoni.com. For any trouble, please consult our website www.volfoni.com,... -
Page 9: Warranty
5. Warranty The ActivHub IR100 is warrantied to the original purchaser for three to twelve months according to local legislation. Infra-red emitter/ synchronizer and cables should be returned in original box along with original proof of purchase.Infra-red emitter/synchronizer that are broken or scratched are not covered.
