Volfoni EDGE RF User Manual

1. PRODUCT OVERVIEW
1.1 Description
EDGE™ RF are active 3D glasses that use radio frequency
technology. These glasses synchronize with the RF signal of the
ActivHub RF. As a result of Volfoni's long experience in managing
the world's largest stock of active 3D glasses, the EDGE™ line of
glasses showcase the latest in 3D technical innovations, with
unmatched comfort and ease-of-use.
The quality:
- These glasses use ultra-fast-response liquid crystal lenses to
create the best image quality
- No silver screen required, high image quality preserved at all
seating positions
- Bright images and natural colors
The comfort:
- Volfoni's ergonomic design
- Weighing 56gr only
- Rubberized nosepiece and 3 sizes of adjustable arms
The efficiency:
- Extremely stable, long-range usage due to radio frequency
- Radio frequency synchronization avoids interference from other
devices
- Automatic power-off function (Auto OFF) saves energy
- Rechargeable glasses / Battery life up to 75 hours

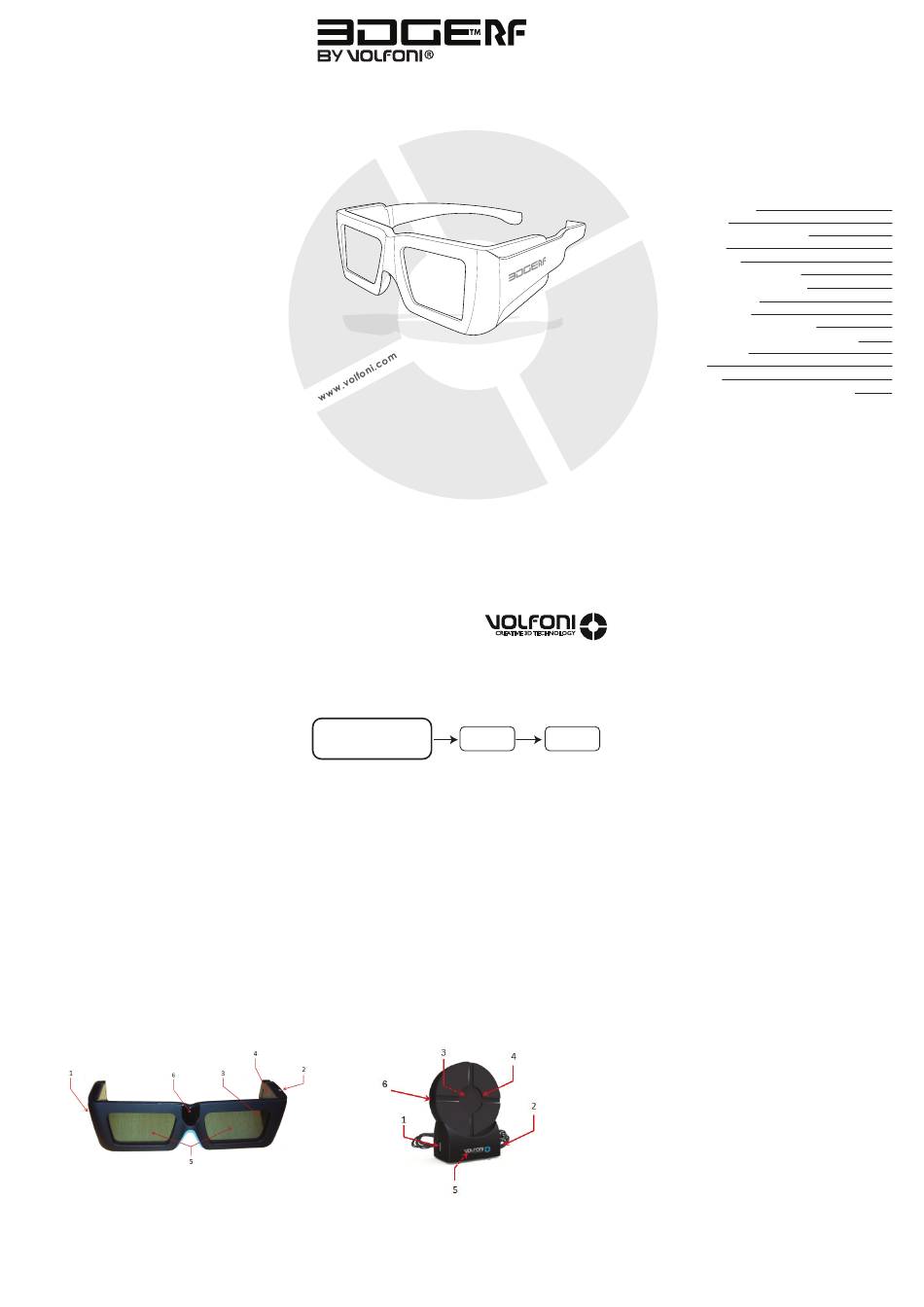

1. Battery compartment
2. ON/OFF button
3. µUSB connector (for charging & uploading)
4. Electronic component (with RF receiver)
5. LCD lenses
6. LED
1.2 Packaging composition
- EDGE™ RF (x1)
- MicroUSB cable (x1)
- User guide (x1)
- Microfiber cleaning wipe (x1)
3
User Guide
2. REQUIREMENTS
General set up overview
3D Source with one of these
types of synchronizations :
Infra-Red, DLP-Link or VESA
The 3D system is composed of three parts :
- 3D source: synchronization signal can be IR, DLP-Link or VESA
- ActivHub RF emitter receives the signal from the 3D source and
transmits it by radio frequency (Volfoni proprietary protocol).
Please refer to ActivHub RF user guide.
- EDGE™ RF glasses automatically receive the RF synchronization
signal.
ActivHub RF overview
ActivHub RF is a transmitter used to synchronize the EDGE™ RF 3D
glasses with the protocols currently used.
1. USB connector
2. Jack 3.5 connector
3. IR & DLP-Link reception window
4. RF emission window
5. Function selector with the rotary wheel (12 positions)
6. Power and Function LED
6
6
4
1. PRODUCT OVERVIEW
1.1 DESCRIPTION
1.2 PACKAGING COMPOSITION
2. REQUIREMENTS
3. EDGE RF FEATURES
4. USING YOUR EDGE RF
5. SOFTWARE UPDATES
6. VOLFONI MANAGER (OPTIONAL)
7. IMPORTANT SAFETY RECOMMENDATIONS
8. TROUBLESHOOTING
9. WARRANTY
10. REGULATIONS
11. MORE INFORMATION AND CONTACTS
3. EDGE
3.1 General Specifications
- Stylish, ergonomic design
- Rubber nosepiece provides universal comfort
- Unbeatable luminosity and natural colors
ActivHub RF EDGE RF
- Wide receiving angle and extremely stable range
VOLFONI VOLFONI
- Rechargeable battery (with µUSB/USB cable)
- Optimal circuit layout
- ON/OFF button
- Automatic OFF for glasses after 5 minutes no movement
- Automatic OFF for glasses after 10 minutes no RF signal
- Flashing glasses if battery too low (after restart if remaining
autonomy is less than 3 hours)
- 3 available sizes of removable arms (S, M, L)
3.2 Technical Specifications
- Sync operation: Radio-Frequency
- Frequency: 2.4Ghz
- Compatible with all refresh-rates up to 240Hz (including 96, 120,
144 and 192Hz)
- Optic Transmission: 34%
- Residual light: 16.5%
- Contrast: > 1:200 (no ghosting)
- Chromaticity: Color correction not mandatory
- Weight: 56 grams
- Autonomy: 75 hours in use, auto OFF
- Range with an ActivHub: > 30 meters
- Operating Temperature: 0°C ~ +40°C (32F-104F)
- Storage Temperature: -10°C ~ +50°C (14F-122F)
- CE certified
5
