Volfoni EDGE 1.2 User Manual

Volfoni EDGE 1.2 User Manual

3d cinema ir synchronizer kit

Advertisement

User Manual
3D CINEMA
IR SYNCHRONIZER KIT

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDGE 1.2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Volfoni EDGE 1.2

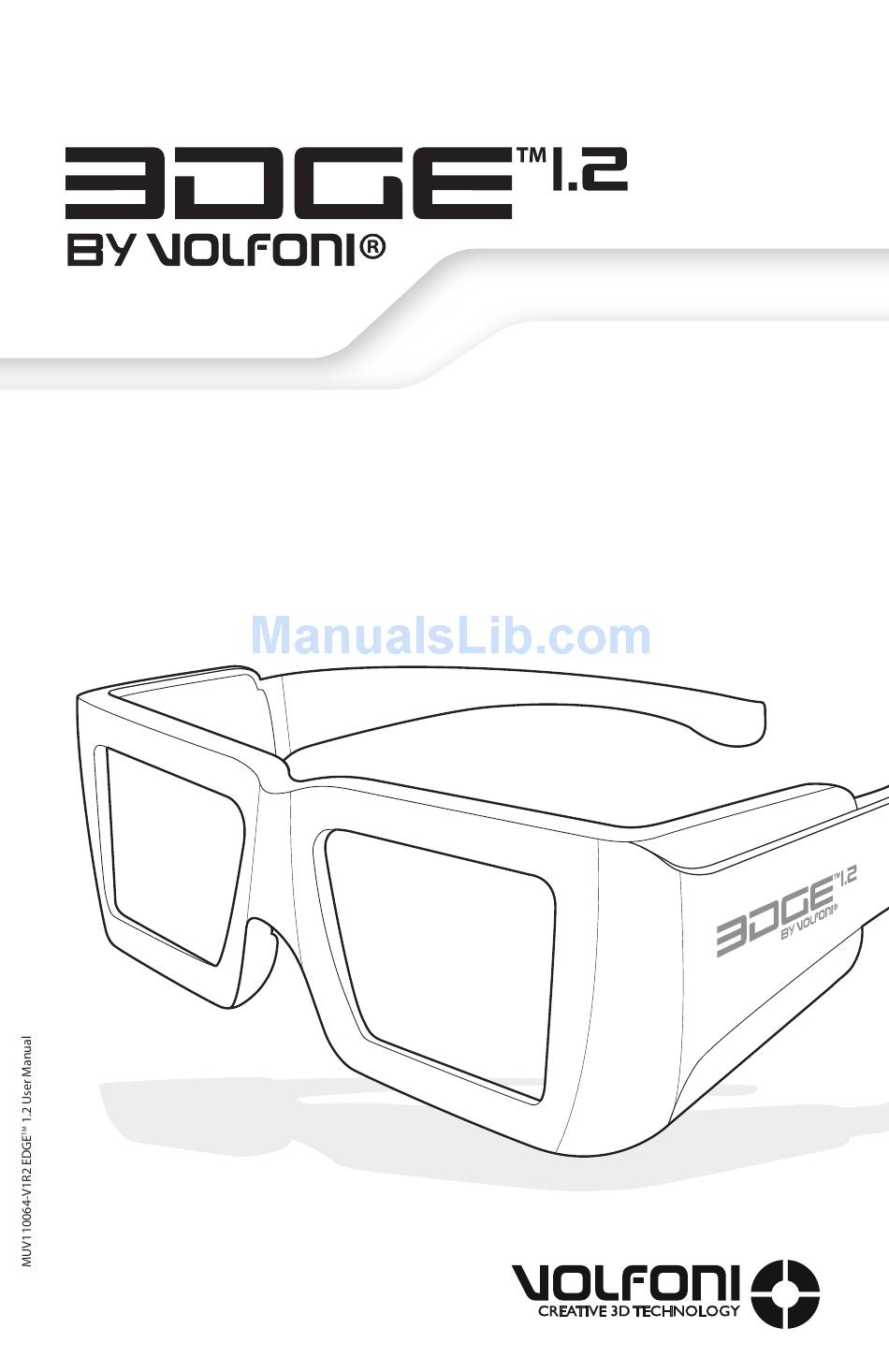

  • Page 1 User Manual 3D CINEMA IR SYNCHRONIZER KIT...
  • Page 3: Table Of Contents

    SUMMARY I. 3D KIT PRESENTATION 1. General presentation 2. 3D kit composition II. PRODUCT DESCRIPTION 1. Glasses 2. IR emitter 3. Tester 4. Synchronizer III. 3D KIT FASTENING IV. CONNECTION & SYNCHRONIZATION...
  • Page 4 1. GENERAL PRESENTATION As a result of Volfoni's long experience in managing the world's largest stock of active 3D glasses, EDGE 1.2 benefits from the latest ergonomic and technical innovations. EDGE 's comfort and easy use is unmatched. The power of EDGE Exceptional image quality without ghosting, wherever you sit.
  • Page 5: Kit Presentation

    I. 3D KIT PRESENTATION 2. 3D KIT COMPOSITION EDGE 1.2 GLASSES + battery tool + removable arms IR EMITTER + fixing + wire TESTER SYNCHRONIZER + power cord + GPIO synchronizer cable...

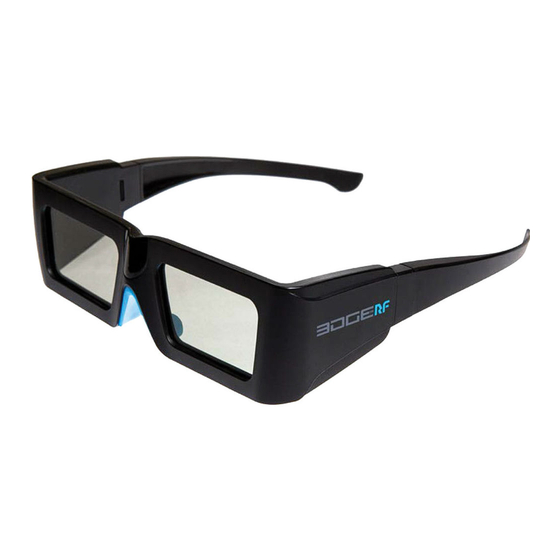

  • Page 6 Operating Temperature: 0°C -40°C (32F-104F) Storage Temperature: -10°C -50°C (14F-122F) 1. GLASSES The VOLFONI Active 3D Glasses use fast-response liquid crystal lenses to create the best image quality. It is the brightest and most cost-saving 3D solution currently on the market.
  • Page 7: Product Description

    To open the battery encasement on the right arm of the glasses: -Use an instrument such as the Volfoni's battery tool, a paper clip or a prong. -Put the glasses on a desk/table as it will be more convenient and easy -Find the small hole on the right arm of the glasses, where the arm connects with the battery encasement.
  • Page 8: Ir Emitter

    Thank you for using our STANDARD ACTIVE 3D DIGITAL CINEMA SYSTEM. Before starting, please check if the following parts are included in the package. 2. IR EMITTER Long Range IR Emitter Long Range IR Emitter VAIK-0100 is a compact and powerful unit. The emitter, with many built-in infrared LEDs, allows coverage all types of theater rooms, regardless of the number of seats.
  • Page 9: Tester

    II. PRODUCT DESCRIPTION Basic Specification IR Wavelength: 940 nm Power Consumption: 10W in active status Laser: Max Output: 0.5mW, Wavelength: 650 nm± 10 Dimension: 361 mm x 70 mm x 44 mm WARNING : The laser pointer of this emitter emits Class IIIA laser. Please DO NOT stare into beam or view directly with optical instruments.
  • Page 10: Synchronizer

    4. SYNCHRONIZER Power Module Multi-function Distribution Module The multi-function Distribution Module is a unit specially designed for mid size and large digital 3D cinemas. This unit is plugged into the digital projector and receives frame synchronizing signal via GPIO (DB-37). It extends to four DB-9 emitter outputs.
  • Page 11 II. PRODUCT DESCRIPTION LASER POINTER Laser Pointer ON/OFF LOCAL IR EMITTERS LOCAL IR EMITTERS Local IR Emitters ON/OFF SETUP FRAME SYNC Frame SYNC Setup Switch QUICK FRAME SYNC POWER EYE ROTATION Eye Rotation Switch OUTPUT TO IR EMITTERS FRAME SYNC FROM PROJECTOR Distribution Module Extension Port CH1,2,3,4 SYNC Port to IR Emitter Power Input Port...
  • Page 12 III. WALL FASTENER Before installing the emitter in the front of the screen, make sure you have all the needed tools and the instruction manual. This wall fixing part is provided with all the screws and wall anchors you might need. Follow the instructions to fasten this kit.
  • Page 13: Kit Fastening

    III. 3D KIT FASTENING INSTALLATION STEP STEP use the wall base to drill the holes with the given bit mark each hole to drill (for wood surface only) with a pencil. STEP STEP Insert wall anchors tightly screw the base to the wall (For solid concrete and drywall only) STEP assemble the arm to the base...
  • Page 14 Digital Projector GPI/O(DB37-F) GPI/O Extension (DB37-M) Power Adapter Power Adapter 24VDC/3A 24VDC/3A Distribution Module Distribution Module(Extension) DIN-3 DIN-3 Extension Cable Distribution Module Cable DB-9 IR Emitter 3 DB-9 IR Emitter 2 IR Emitter Cable DB-9 IR Emitter 1...
  • Page 15: Connection & Synchronization

    Warning: Depending on your equipment and the room configuration, you may have to adjust these parameters. We recommend that you confine the setup of 3D parameters and color adjustments directly to integrators. For further information please visit our website www.volfoni.com, or send us an email to support@volfoni.com.
  • Page 16 VOLFONI SAS 29, Rue Jean Jaques Rousseau 75001 Paris France VOLFONI GmbH Erzgießereistraße 38 80335 München Germany VOLFONI Ltd 21, Tower one Lippo center 89, Queensway Hong-Kong VOLFONI Inc 3450, Cahuenga Bd West. UNIT 504 Los Angeles, CA, 90068 VOLFONI Ltd.
