Volfoni Edge Universal User Manual

1. PRODUCT OVERVIEW
1.1 Description
EDGE™ Universal are active 3D glasses that use infra-red technol-
ogy. These glasses synchronize with most of the IR signal currently
available. As a result of Volfoni's long experience in managing
the world's largest stock of active 3D glasses, the EDGE™ line of
glasses showcases the latest in 3D technical innovations, with
unmatched comfort and ease-of-use.
The quality:
- These glasses use ultra-fast-response liquid crystal lenses, which
create the best image quality
- No silver screen required, high image quality preserved at all
seating positions
- Bright images and natural colors
The comfort:
- Volfoni's ergonomic design
- Weighs only 56gr
- Rubberized nosepiece and 3 sizes of adjustable arms
The efficiency:
- Best-in-class lenses with high contrast and light efficiency
- Software programmable 3D glasses (dark time, delay...)
- Automatic power-off function (Auto OFF) saves energy
- Rechargeable glasses / Battery life up to 45 hours
- Three-positions switch : 3D, 3D reverse, dual view
1. ON/OFF button
2. Programmable 3-positions switch
3. MicroUSB (µUSB) connection (recharging and updating)
4. Electronic component (with IR receiver)
5. Liquid crystal lenses (STN)
6. LED light
7. Interchangeable arms
8. Rubberized nosepiece
4 - 6
8
5
3

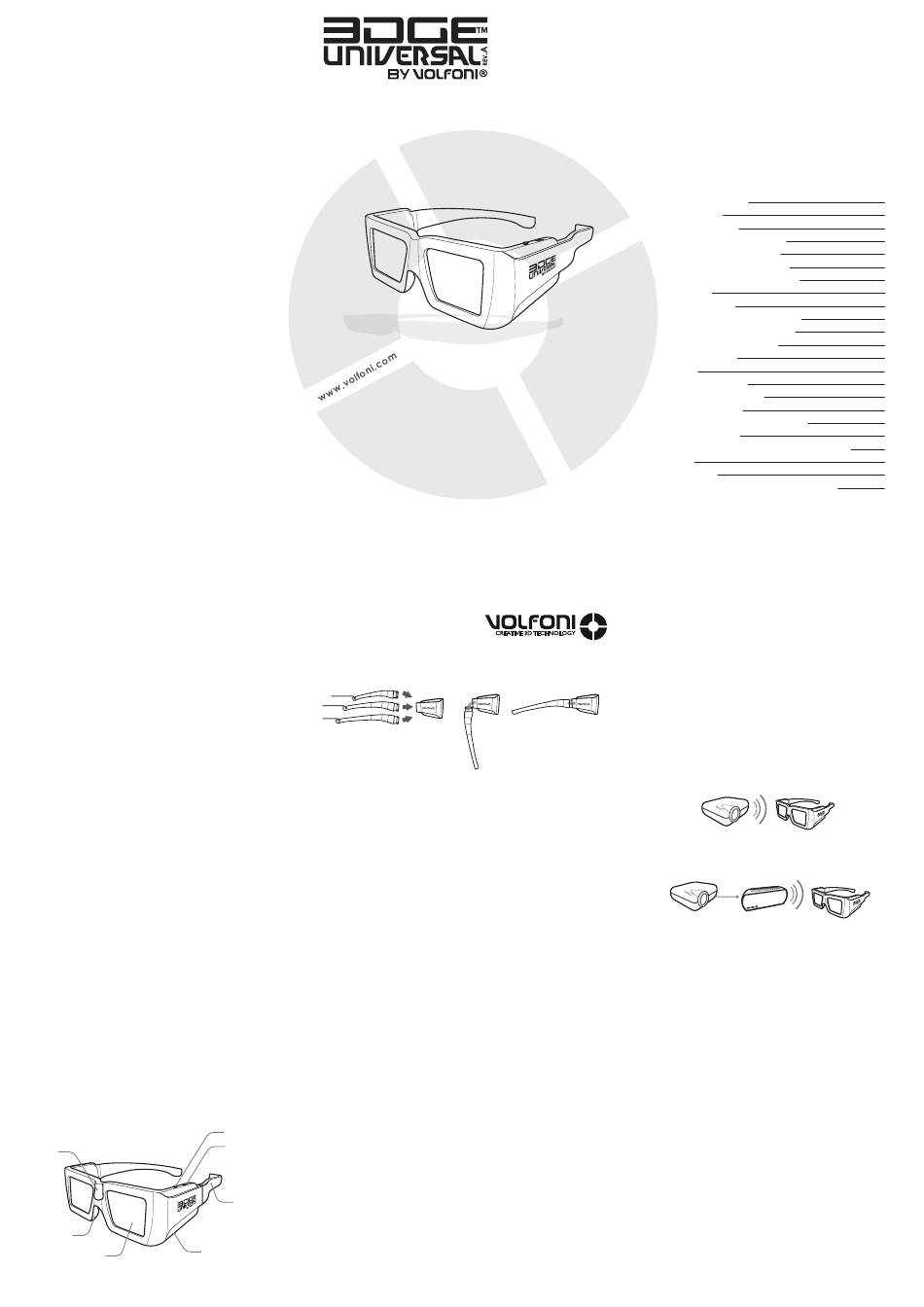

1.2 set up of arms
S size
M size
L size
1.3 Package composition
- EDGE Universal (x1)
TM
- MicroUSB cable (x1)
- Removable arms S, M, L (x1)
- User guide (x1)
- Microfiber cleaning wipe (x1)
2. EDGE TM
2.1 General Specifications
- Stylish, ergonomic design
- Rubber nosepiece provides universal comfort
- Unbeatable luminosity and natural colors
- Wide receiving angle and extremely stable range
- Rechargeable battery (with µUSB/USB cable)
- Optimal circuit layout
- ON/OFF button
- Three positions switch
- Automatic OFF for glasses after 5 minutes no movement
- Automatic OFF for glasses after 10 minutes no IR signal
- Flashing glasses if battery too low (after restart if remaining
autonomy is less than 3 hours)
- 3 available sizes of removable arms (S, M, L)
2.2 Technical Specifications
- Sync operation: infra-red
- Compatible with all refresh-rates up to 240Hz (including 96, 120,
144 and 192Hz)
1
- Optic Transmission: 38%
- Residual light: 18.6%
2
- Contrast: > 950:1 (no ghosting)
- Chromaticity: Color correction not mandatory
- Weight: 56 grams
- Autonomy: 45 hours in use, auto OFF
- Operating Temperature: 0°C ~ +40°C (32F-104F)
7
- Storage Temperature: -10°C ~ +50°C (14F-122F)
- CE certified
-ROHS certified
3
4
User Guide
model
VPEG-04010
UNIVERSAL FEATURES
SUMMARY
Content
1. PRODUCT OVERVIEW
1.1 DESCRIPTION
1.2 SET-UP OF ARMS
1.3 PACKAGE COMPOSITION
2. EDGE UNIVERSAL FEATURES
2.1 GENERAL SPECIFICATIONS
2.2 TECHNICAL SPECIFICATIONS
3. REQUIREMENT
3.1 GENERAL SETUP
3.2 IR COMPATIBLE PROTOCOLS
4. USING YOUR EDGE UNIVERSAL
4.1 ON/OFF AND AUTO OFF
4.2 SWITCH BUTTON
4.3 BATTERY
4.3.1 BATTERY LEVEL
4.3.2 BATTERY CHARGE
5. SOFTWARE UPDATES
6. VOLFONI LOADER - PARAMETERS
7. TROUBLESHOOTING
8. IMPORTANT SAFETY RECOMMENDATIONS
9. WARRANTY
10. REGULATIONS
11 MORE INFORMATION AND CONTACTS
3. REQUIREMENTS
3.1 General setup
EDGE IR glasses are only compatible with the IR protocols listed
in part 3.2, or with one of Volfoni's ActivHub IR emitters.
To synchronize your glasses directly to your 3DTV's IR emitter,
proceed as follows:
Compatible 3D
video projector / TV EDGE UNIVERSAL
If you have an ActivHub IR (ActivHub IR50, ActivHub IR100,
ActivHub IR Cinema) to sync, proceed as follows:
Compatible 3D
video projector / TV
Active HUB IR
The glasses are programmed to search for any IR protocol in the
immediate vicinity.
3.2 IR compatible protocols
The EDGE™ Universal 3D glasses are compatible with all infra-red
3D sync protocols currently available:
KONKA®
ARCELIK®
SHARP®
SONY® (*)
PANASONIC® (*)
LG®
MITSUBISHI®
SAMSUNG® (*)
NuVisionXPAND® (unencrypted)
HI-SENSE®
NVIDIA® (including "light boost")
* Bluetooth® and Full HD3D™ not supported
New IR protocols entering the market will be available on the
Volfoni website via software update. Please refer to part 5 of this
user guide for updating the software of the EDGE™ Universal
glasses.
5
Page
3.
3.
4.
4.
4.
4.
4.
5.
5.
5.
6.
6.
6.
6.
6.
7.
7.
8.
9.
10.
10.
11.
11.
EDGE UNIVERSAL
