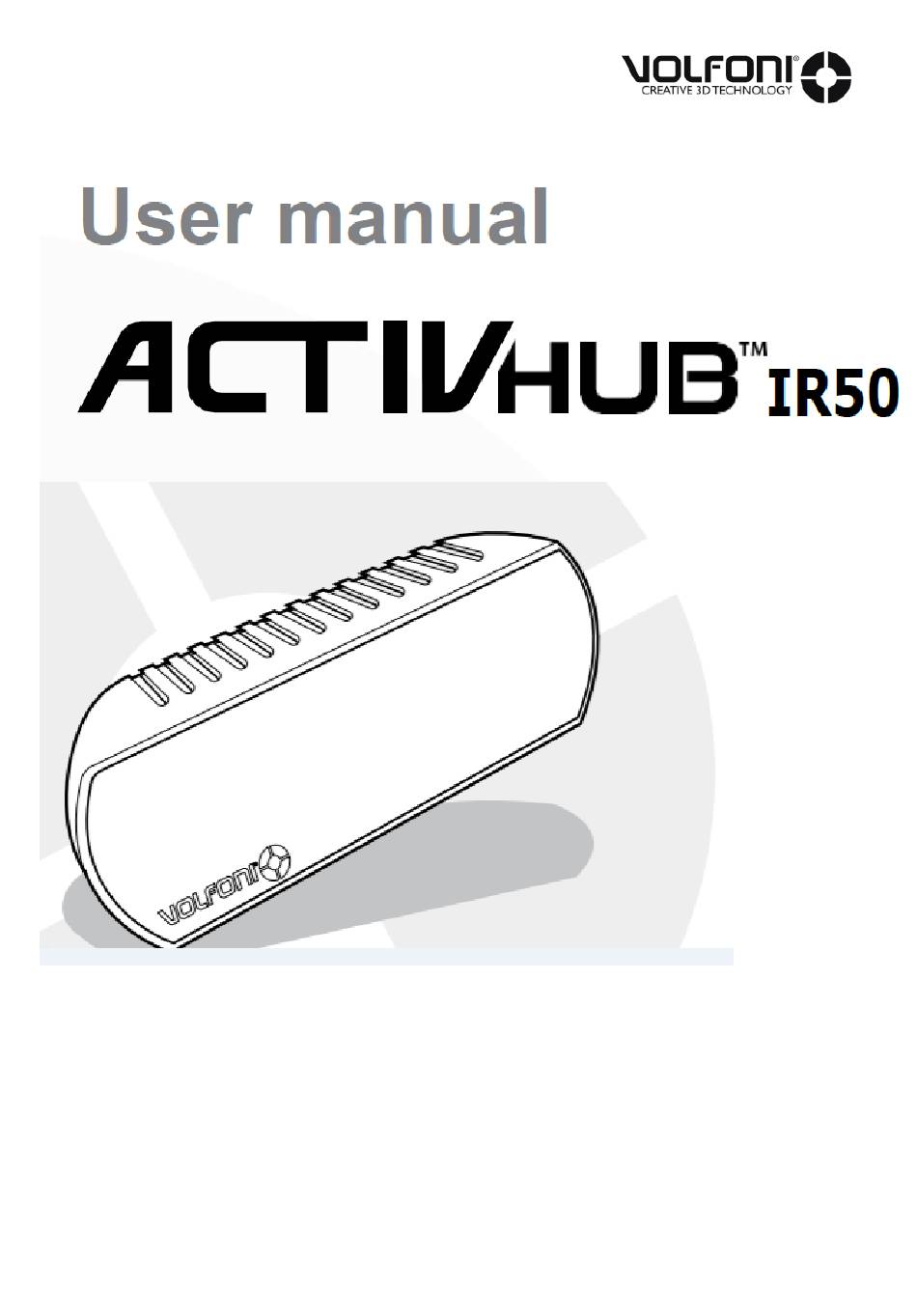

- Page 1 Model VPES-05000-A Document : MUV120133-B00 ActivHub_IR50_User_Manual Compatible with EDGE1.2 glasses (VPEG-01100)
-
Page 2: Table Of Contents
SUMMARY 1. Overview 2. Content / Accessories 3. Product Description Specification How to use the ActivHub IR50 Default Room Configuration System Connection Technical Specifications Ceiling / Wall Instructions 4. Warranty 5. Regulatory Standards 6. Contacts... -
Page 3: Overview
1. OVERVIEW The Volfoni ActivHub IR50(REF: VPES-05000-A) is a medium sized IR Emitter with a built-in synchronizer. Powerful and compact, the ActivHub IR50 designed for viewing 3D content in a small room, such as a theater or room up to 50 seats, for example. -
Page 4: Content / Accessories
2. CONTENT / ACCESSORIES The ActivHub IR50 includes: ActivHub IR50 1 SUB-D37/SUB-D9 cable 1 SUB-D9/VESA cable 1 SUB-D9/BNC cable 1 Universal mount fastening 1 Power supply adapter 1 Power supply cable 1 Activ 3D glasses tester with 3 batteries Systems are provided with a new universal mount making installation... -
Page 5: Product Description
3. PRODUCT DESCRIPTION SYNC IN (DB9) Mounting hole Power on emitter by using power supply adapter : LED will be off Connect synchronization cable to emitter: If a signal coming from projector is detected (2D or 3D mode), LED will be fixed red Specification: - Power supply : 24VDC, 1A 110-240V Universal Power Adapter - Dimension : 182 x 70 x 44 mm (14.1 x 2.75 x 1.8 inches) -
Page 6: How To Use The Activhub Ir50
The IR Emitter emits the infra-red signal toward the screen. The signal bounces toward the audience wearing 3D active glasses. Screen Viewers with active 3D glasses Default Room Configuration Maximum Size of Movie Theater with 1 ActivHub IR50 For other configurations, please refer to your technical support... -
Page 7: System Connection
3D video player Compatible 3D video projector HDMI cable BNC / SUB-D9 female or VESA Mini Din3 / Sub-D9 female ActivHub IR50 (3 meters by default - up to 30 meters) Power Supply 24V-240V (3 meters provided) Wireless Active 3D Glasses... -
Page 8: Technical Specifications
Technical Specifications... -
Page 9: Ceiling / Wall Instructions
Ceiling / Wall instructions MOUNTING OVERVIEW Before installing the emitter facing the screen, make sure you have all the needed tools and the instruction manual. This wall fixing part is provided with all the screws and wall anchors you might need. Follow the instructions to fasten this kit. Parts Product description Mounting plate... - Page 10 Mounting Instructions (step by step) STEP Use the wall base to Drill the holes with the given mark each hole to drill bit (for wood surface only) with a pencil. STEP STEP4 Insert wall anchors Tightly screw the base to the wall (For solid concrete and drywall only) STEP5 Assemble the arm to the base...
-
Page 11: Warranty
4. WARRANTY The ActivHub IR50 is warrantied to the original purchaser for three years according to local legislation. Infra-red emitter and cables should be returned in original box along with original proof of purchase. Infra-red emitter which are broken or scratched are not covered.
