TANGO55/
& TANGO56/
I
•

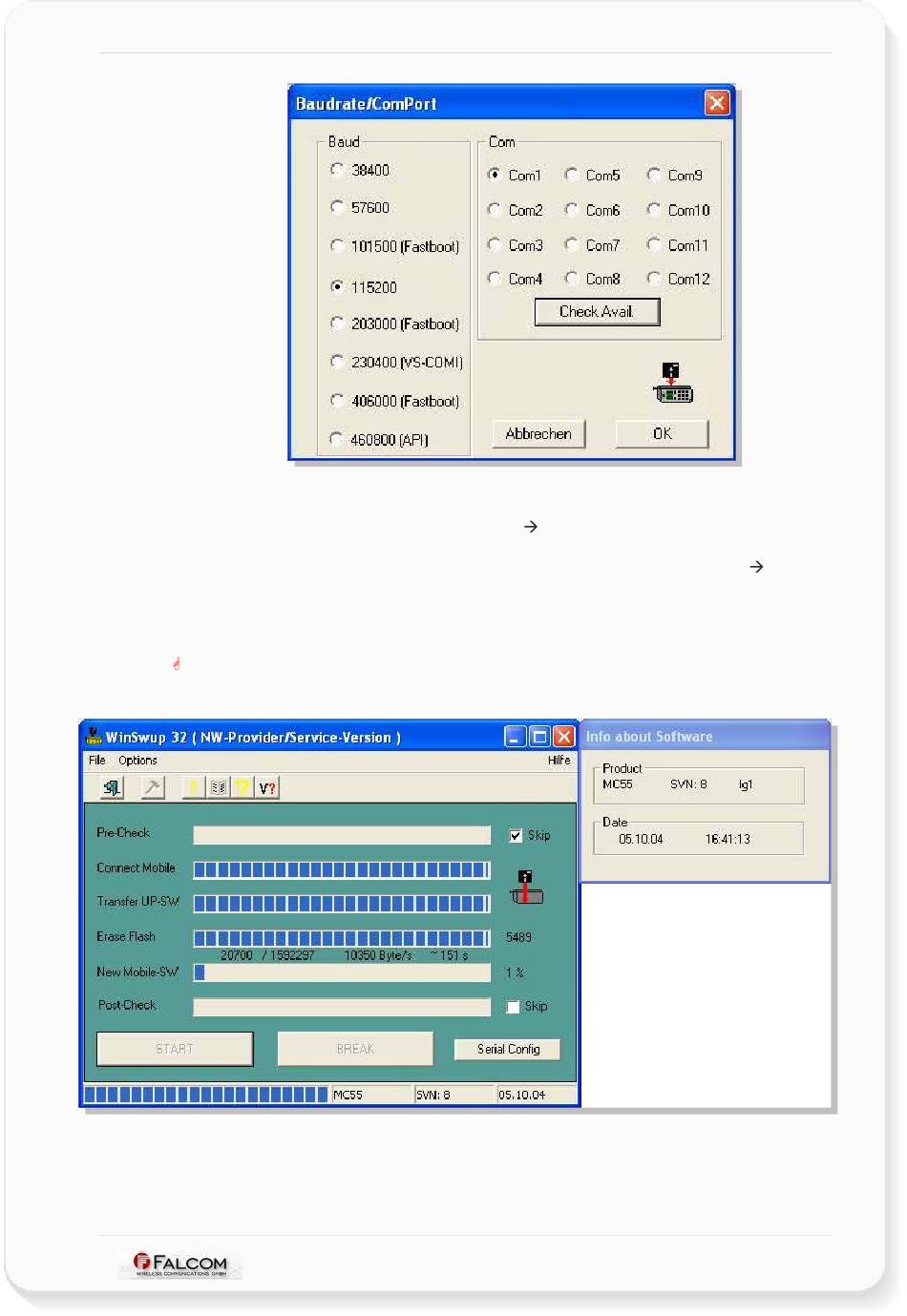

Close this dialog box by clicking on the OK button.
•
Now,
(imoprtant
to the external power source (set to HIGH
the "START" button and within 1 second after the "START" button has been
clicked, connect the V+ line to the external power source (set to HIGH
10.8 to 32 VDC).
•
The current positions of the programming progress will be displayed in the
progress bars. The update procedure takes approximately 4 minutes.
Note: Do not interrupt this procedure. A partially reprogrammed flash
memory could lead to invalid operation of the terminal and permanent
damage of the components.
•
If any error is generated after clicking the "START" button or during flash
programming (see figure below), check cables and retry the operation. If the
the "START" button is pressed and within 1 second the V+ and IGN lines have
not been connected to the external power source (set to HIGH), the error
shown in the figure below will be occurred.
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
I
!!!!) to start the firmware update, firstly connect the IGN line
from 10.8 to 32 VDC), then press
V
1.03
ERSION
from
