Terminal Emulator Setup; Checking The Modem (Using Microsoft Windows™ Hyper Terminal As Example) - FALCOM TANGO55/i Hardware Description

TANGO55/ & TANGO56/
I

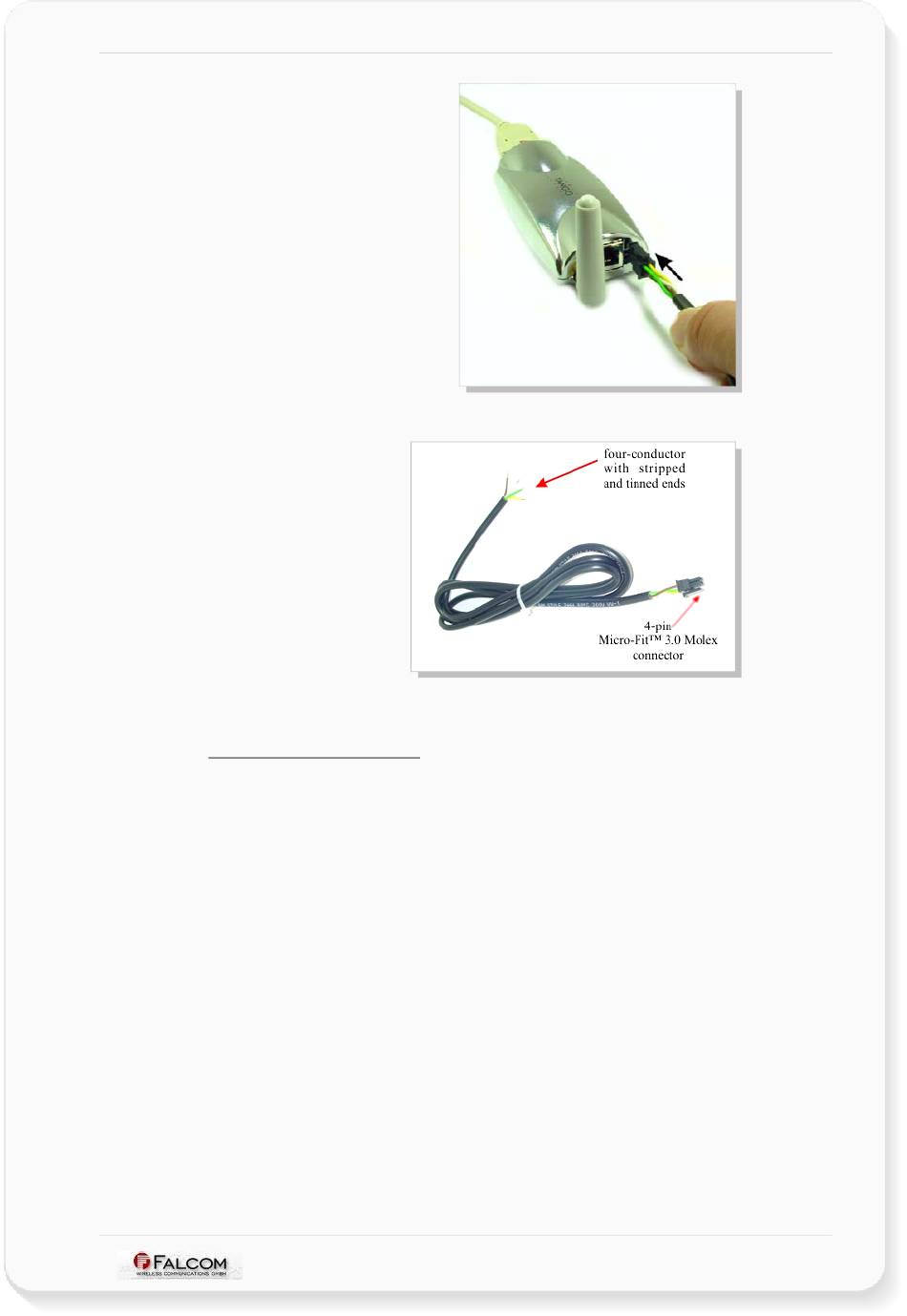

Figure 14.a: Connect the DC power supply
Figure 14.b: Power supply cable (see Figure 2, for Pin-out)

5.2.2 Terminal emulator setup

Below is an example based on the Windows™ Hyperterminal application (terminal
emulator program).
The instructions below describe how to use the TANGO55/56 Modem with a PC
running Windows 2000.
5.2.2.1 Checking the Modem (using Microsoft Windows™ Hyper
Terminal as example)
By usning a terminal program you can communicate with the modem through
one of the provided RS232 serial ports, see example below:
