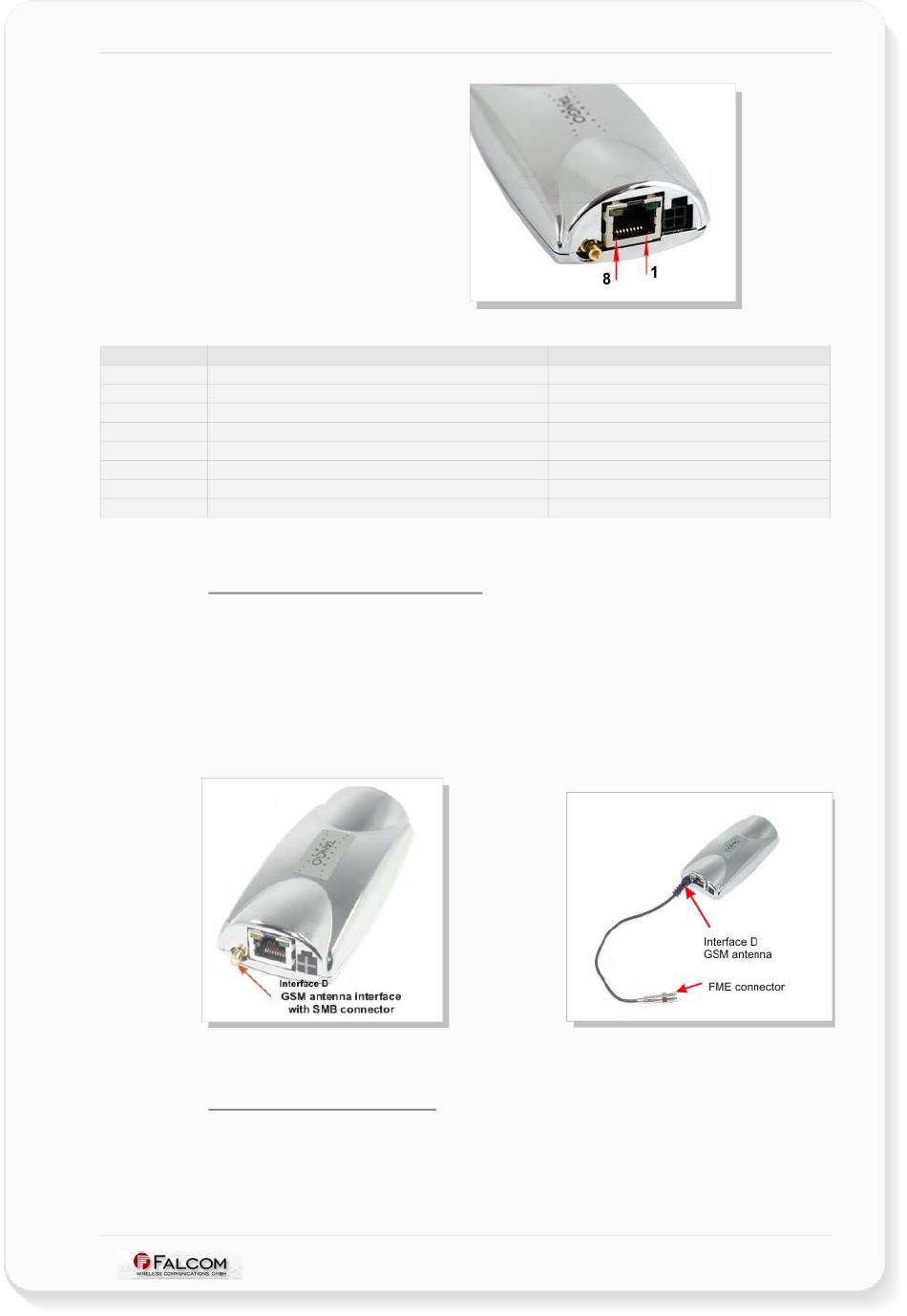

Figure 4: Audio interface pin-out (interface C)
Pin Description
1 Power output 10V ± 5% 150mA
2 TxD ↔ Transmitted Data
3 RxD ↔ Received Data
4 Ground
5 SPK+
6 SPK-
7 MIC+
8 MIC-
Table 11: Pin assignment of RJ45

4.1.4 Interface D (antenna interface)

There are two TANGO55/56 versions as far as the antenna interface is concerned.
The specifications and functions of the modems are the same. The difference
between both equipments can be recognised by looking at the GSM antenna on
the left side of the modems: the first one provides an antenna with SMB connector
interface (Figure 5.a); the second one provides an antenna with FME connector
interface (Figure 5.b). The length of antenna cable integrated on the TANGO55/i
and TANGO56/i is 23.3 cm.
Figure 5.a: TANGO55/56 modem with SMB
antenna connector

4.1.5 Interface E (SIM interface)

The SIM interface controls a 3V SIM Card. This interface is fully compliant with GSM
11.11 recommendations concerning SIM functions.
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
I
Direction
OUT
IN
OUT
-
OUT
OUT
IN
IN
Figure 5.b: TANGO55/56 modem with FME
antenna connector
