Mounting The Terminal; Mounting The Cradle And Placing The Terminal - FALCOM TANGO55/i Hardware Description

TANGO55/ & TANGO56/
I
5.2.1.3

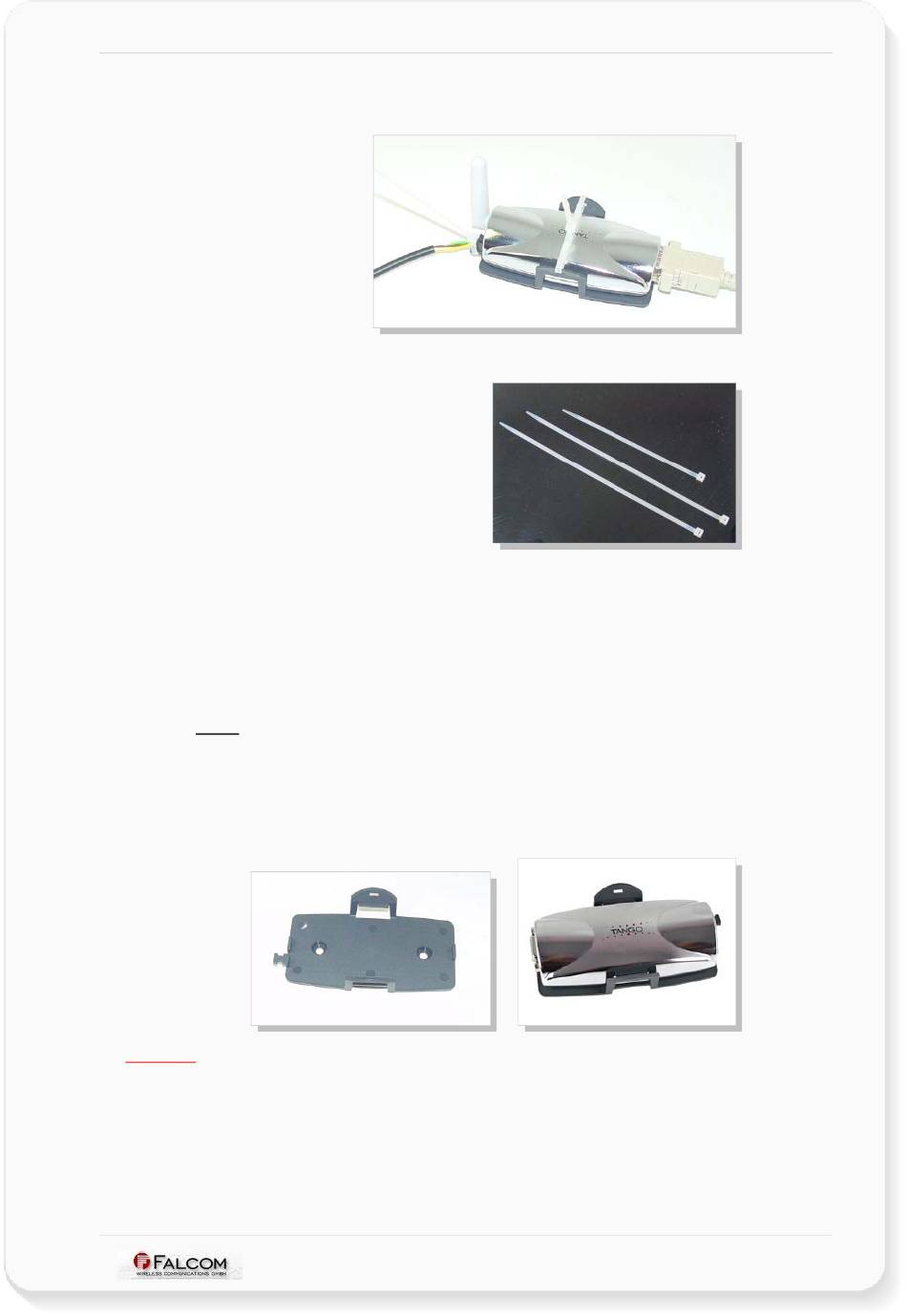

Mounting the terminal

Figure12.a
Figure12.b Cable ties
Place the modem (if it is needed) on the cradle and push it down, make sure that
the modem does not move up and down inside the cradle, the cradle is in the sales
package. After that, the user have to use the cables ties for fixing (figure 12.a) the
modem and the power supply cable. For power supply cable use the small cable
ties and for modem use one of the length cable ties. The dimensions of cable ties
are 200 x 3.5 mm and 140 x 3.5 mm.
Note: If you want to mount the modem on a wall or vehicle, first attach
the cradle to the wall or vehicle as described on the chapter
below before placing the modem on the cradle.
5.2.1.4

Mounting the cradle and placing the terminal

CAUTION: IN ORDER TO COMPLY WITH RF EXPOSURE REQUIREMENTS, INSTALL THE
MODEM SO THAT A MINIMUM DISTANCE OF 20 CM CAN BE MAINTAINED
BETWEEN THE ANTENNA AND ALL PERSONS. IF YOU USE AN EXTERNAL
ANTENNA, INSTALL THE ANTENNA SO THAT A MINIMUM DISTANCE OF 20 CM
CAN BE MAINTAINED BETWEEN THE ANTENNA AND ALL PERSONS, WITH
ANTENNA GAIN NOT EXCEEDING 3 DBI.
Place the modem in a proper location, for example on the desk far enough from
your PC or . It is also possible to install the terminal to a wall or a vehicle:
