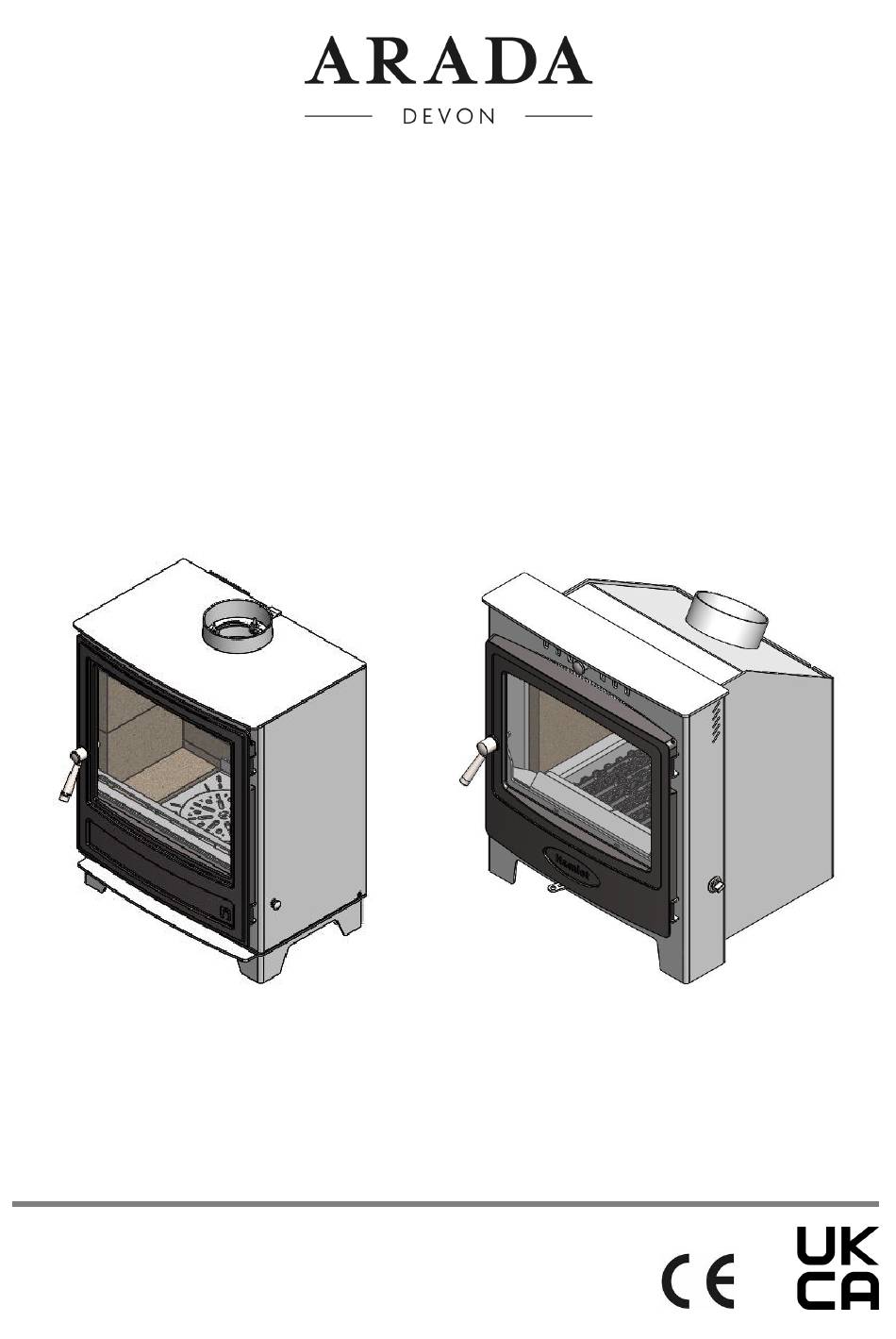

- Page 1 Dry stove installation guide Suitable For Freestanding and Inset Appliances FREESTANDING INSET BK545 REV 14 Issue Date: 15/09/2022 BS EN 13240:2001 +A2:2004 BS EN 13229:2001 +A2...
- Page 2 Should you have any questions about our stoves that are not covered in this manual, please contact the Arada retailer in your area, or call our technical support department on +44 (0)1297 632052. Arada has a policy of continuous product development and therefore we reserve the right to amend specifications without prior notice.
-
Page 3: Table Of Contents
Inset stove specific instructions ......10 Inset stoves flue connection ....... 10 Adjusting the self-levelling feet (Cam style) ............11 Adjusting the self-levelling feet (Levelling screw style) …………………………………….11 Firebox liner panels .......... 12 COMMISSIONING THE STOVE ......13 Page 3 BK545 Rev 14... -
Page 4: Warnings
Any manufacturer’s instructions must not be taken as overriding statutory requirements. Arada Ltd will not be responsible for any consequential or incidental loss or injury however caused. Page 4 BK545 Rev 14... -
Page 5: Installation Requirements
500mm forward of the front of the appliance and 150mm at the sides. The surface of the hearth should be free of combustible materials. The superimposed hearth for Page 5 BK545 Rev 14... -
Page 6: Combustible Materials
5kW and an additional 850mm for each kW output over 5kW. If there is more than one appliance in the property then each appliance must be supplied with adequate Page 6 BK545 Rev 14... -
Page 7: Flues And Chimneys
If you plan to use an external air supply on a suitable flue gases are kept warm and that the flue size suits stove, and have bought the appropriate Arada the stove. The termination of the outlet at the top of... - Page 8 Check the existing flue is in good condition with suitable access for collection and removal of debris. It is also important that suitable flue pipe Page 8 BK545 Rev 14...
-
Page 9: Installing The Stove
Figure 1: Bars shown seated on their comb outside the stove. opening of the stove. Once the throat plate has been removed you can also remove the rear liner(s). To replace the liners/throat plate follow the steps above in reverse. Page 9 BK545 Rev 14... -
Page 10: Fitting The Spigot Outlet To The Stove
Spigot vermiculite granules or mineral wool when installed for the interest of safety and heat efficiency . Figure 2: Fitting the flue pipe inside the spigot collar Page 10 BK545 Rev 14... -
Page 11: Adjusting The Self-Levelling Feet (Cam Style)
Repeat for the remaining other corners. Using a spirit level adjust until the stove canopy is horizontal side to side and front to back. Levelling Screw Foot Retaining Screw Page 11 BK545 Rev 14... -
Page 12: Firebox Liner Panels
Installing the stove Dry Stove Installation Guide Firebox liner panels / ‘liners’ Most Arada stoves use firebox liner panels to the sides and back. Some Villager wood burners also have firebox liners in the base of the stove. For detailed fitting instructions for Villager stoves please refer to www.aradastoves.com/support. -
Page 13: Commissioning The Stove
Ensure a Carbon Monoxide alarm is fitted. This must be between 1m to 3m from the appliance, and approximately 150mm below the ceiling level. A fireguard conforming to BS 8423:2010 +A1:2016 should be used in the presence of Page 13 BK545 Rev 14... - Page 14 NOTES Arada Ltd, The Fireworks, Weycroft Avenue, Axminster, Devon. EX13 5HU United Kingdom Tel: +44(0)1297 632052 www.aradastoves.com Dry Stove Installation Guide — BK545 Rev 14...
