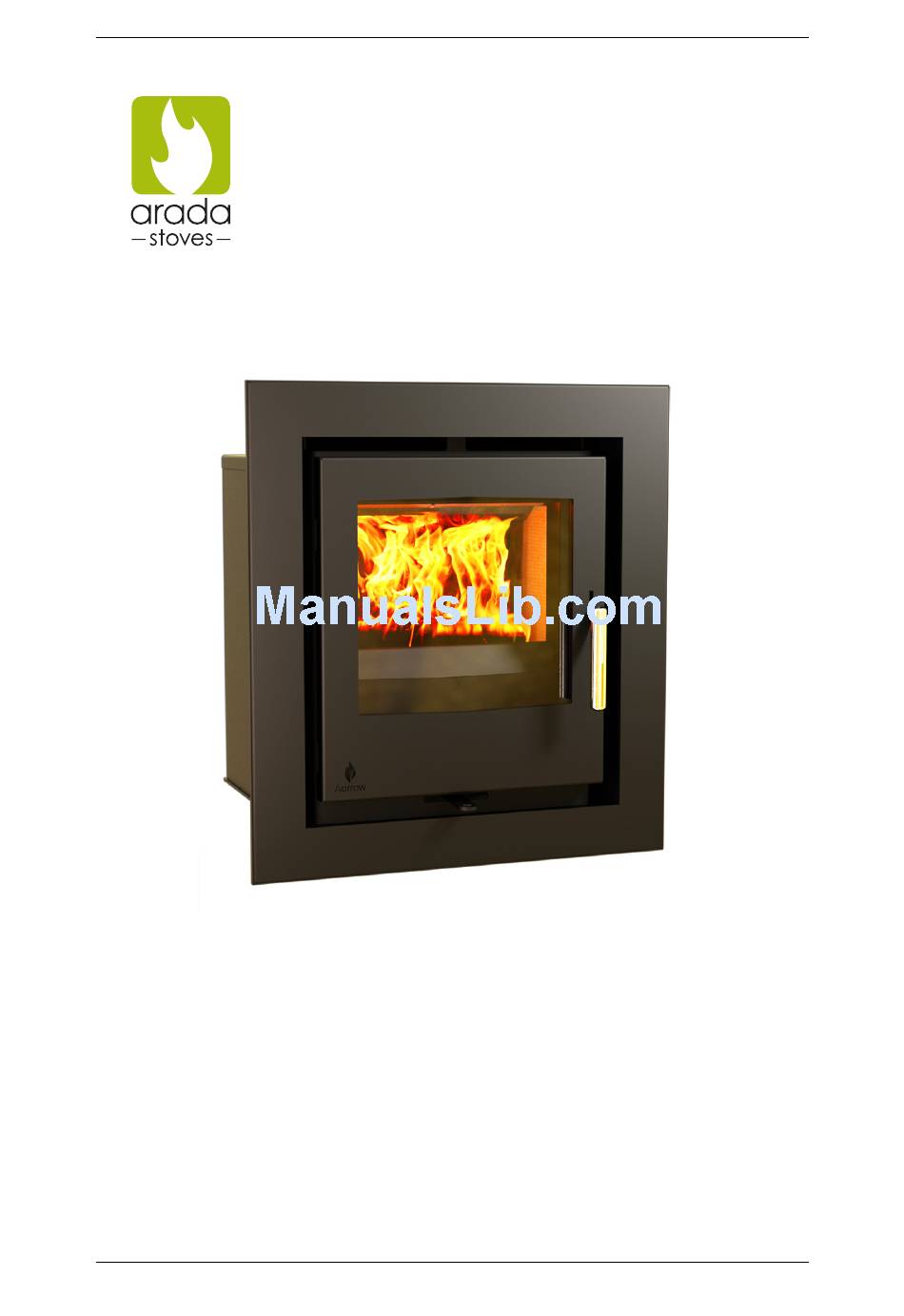

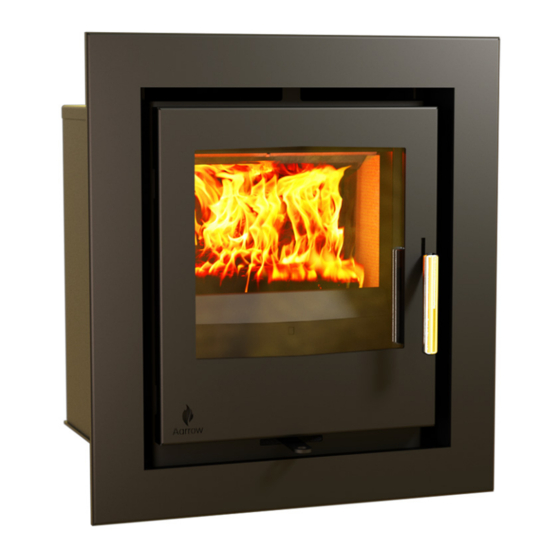

- Page 1 Cassette Stove Installation Guide Cassette Stove Installation Guide June 2014 EN 13229:2001 CE BK605 Rev01...
- Page 2 Should you have any questions about our stoves that are not covered in this manual, please contact the Arada retailer in your area, or call our technical support department on 44 (0)1297 35998. You should retain these instructions for future reference.
-
Page 3: Table Of Contents
Cassette Stove Installation Guide Contents 1 Warnings 2 Health and Safety 3 Installation Requirements 3.1 Hearths and Recesses ....3.2 Combustible Materials .... -
Page 4: Warnings
Any manufacturer's instructions must not be taken as overriding statutory requirements. Arada Ltd will not be responsible for any consequential or incidental loss or injury however caused. Any further warnings in this document will be marked out in a box such as this one. Ignoring the warnings could lead to damage/injury to persons and/or property. -
Page 5: Installation Requirements
Cassette Stove Installation Guide Please consult health and safety guidelines for advice on handling heavy and/or large items. During installation ensure that adequate precautions are taken to avoid unnecessary risk to yourself or any householder. The danger from the caustic nature of fire cement, should be avoided by using these accepted methods: Wear gloves when handling fire cement. -
Page 6: Combustible Materials
Cassette Stove Installation Guide Dimensions of the constructional hearth for all stoves (including any 'hole in the wall’ type installation) should project at least 500mm forward of the front of the appliance and 150mm at the sides. The surface of the hearth should be free of combustible materials. -
Page 7: Air For Combustion
Cassette Stove Installation Guide system and any combustible material. This gap must be at least 3X the outside diameter of the flue pipe, or 1.5X the flue diameter to non combustible surfaces. Please consult the flue manufacturers specification for insulated flues. -
Page 8: Flue And Chimneys
HETAS Guide which can be found on the HETAS website. If you plan to use an external air supply on a suitable stove, and have bought the appropriate Arada External Air Supply Kit, please refer to the instructions included with the kit on how to install it. - Page 9 Cassette Stove Installation Guide To ensure a good up draught it is important that the flue gases are kept warm and that the flue size suits the stove. The termination of the outlet at the top of the flue also needs to comply with Building Regulations.
- Page 10 Cassette Stove Installation Guide performance designation required for use with solid fuel burning stoves is T450 N2 S D3. The flue and chimney installation must be carefully checked by a competent person before fitting the stove to ensure it is suitable and will work safely.
-
Page 11: Installing The Stove
Cassette Stove Installation Guide If the stove appears to be working hard but produces very little output to the room it is likely that excess draw is present in the chimney, and that heat is being sucked out of the appliance and up the chimney. -
Page 12: Assembling The Grate Bars
Cassette Stove Installation Guide With the fire door removed or open push up on the throat plate with the palm of one hand. With the other, remove the side liners and then lower the throat plate forward. It is easier to lower one side of the throat plate first to help remove it from its position and to allow it to fit through the opening of the stove. -
Page 13: Fitting The Spigot Outlet To The Stove
Cassette Stove Installation Guide 'H' and 'L' alternate on each comb. When assembling the grate, fit bars to the low sections of the comb first by seating the ends marked 'L' onto the low part of the comb, whilst the ends marked 'H' should then be seated on the high sections. -
Page 14: Sealing The Stove To The Fire Surround
Cassette Stove Installation Guide 5.6 Sealing the stove to the fire surround In order for the stove to operate correctly and at maximum efficiency it is necessary to achieve a good seal between the back face of the stove convector section, the stove back base sections and the decorative fire surround and recess. - Page 15 Cassette Stove Installation Guide as imposed by the Government. Otherwise please ensure the installation is approved by your local building control officer. • Ensure a Carbon Monoxide alarm is fitted. This must be between 1m to 3m from the appliance, and approximately 150mm below the ceiling level.
- Page 16 Cassette Stove Installation Guide Manual last updated: June 2014 © Arada Ltd 2014 T: +44 (0)1297 35700 info@aradastoves.com - www.aradastoves.com Arada Ltd - Weycroft Avenue - Axminster - Devon - EX13 5HU BK605 Rev01...
