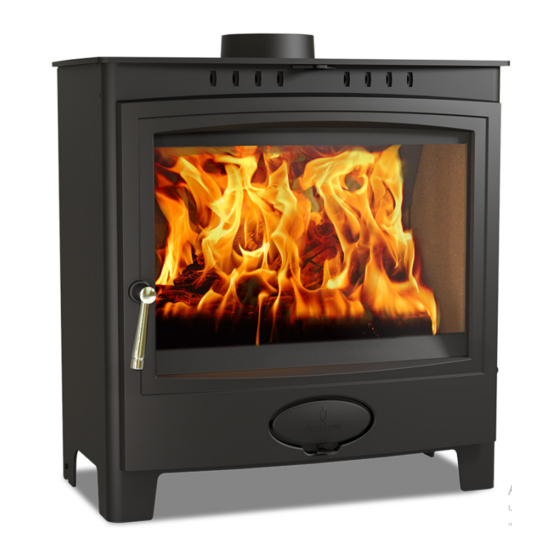

Arada BK545 Installation Manual

Arada BK545 Installation Manual

Dry stove
Hide thumbs Also See for BK545:

Advertisement

Quick Links

Dry Stove Installation Guide
Dry Stove Installation Guide
January 2014
BS EN 13240:2001 +A2:2004 CE
BK545 Rev06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BK545 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arada BK545

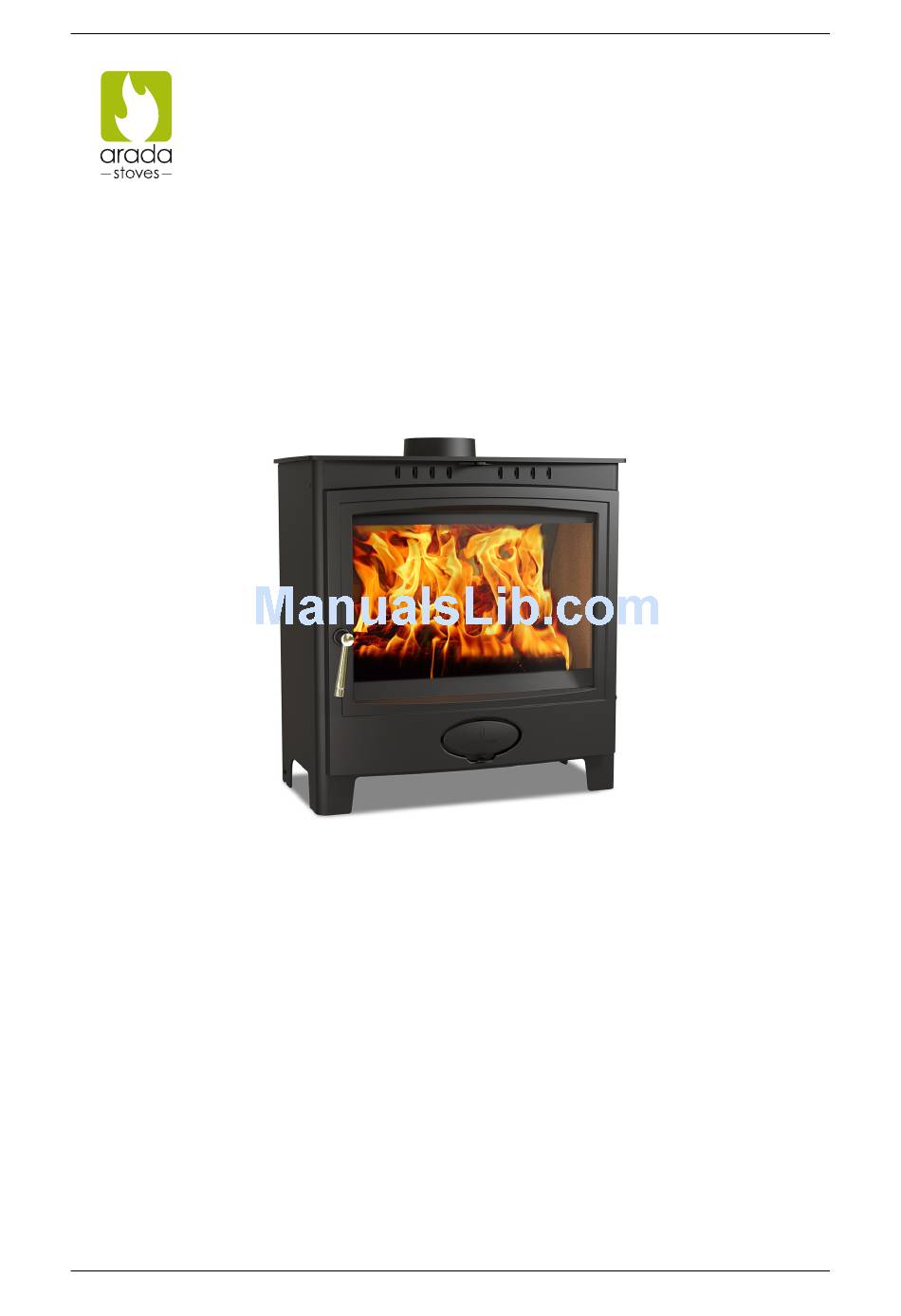

  • Page 1 Dry Stove Installation Guide Dry Stove Installation Guide January 2014 BS EN 13240:2001 +A2:2004 CE BK545 Rev06...
  • Page 2 Please carefully read through the entirety of this installation guide before commencing installation. Should you have any questions about our stoves that are not covered in this manual, please contact the Arada retailer in your area, or call our technical support department on 08448 567181. You should retain these instructions for future reference.
  • Page 3: Table Of Contents

    5.9 Adjusting the self-levelling feet (if applicable) ... . . 5.10 Firebox liner panels ......6 Commissioning the stove BK545 Rev06...
  • Page 4: Warnings

    Any manufacturer's instructions must not be taken as overriding statutory requirements. Arada Ltd will not be responsible for any consequential or incidental loss or injury however caused. Any further warnings in this document will be marked out in a box such as this one. Ignoring the warnings could lead to damage/injury to persons and/or property.
  • Page 5: Installation Requirements

    220mm above, and the full width of the fire. You should also use a suitably heat resistant plaster which should be allowed sufficient time to fully dry before using the stove or cracking is likely to occur. BK545 Rev06...
  • Page 6: Combustible Materials

    5kW and an additional 850mm for each kW output over 5kW. If there is more than one appliance in the property then each appliance must be supplied with adequate combustion air so that all appliances can be lit simultaneously. BK545 Rev06...
  • Page 7: Flue And Chimneys

    HETAS Guide which can be found on the HETAS website. If you plan to use an external air supply on a suitable stove, and have bought the appropriate Arada External Air Supply Kit, please refer to the instructions included with the kit on how to install it.
  • Page 8 Suitable access should be provided into the flue for regular inspection and sweeping of the flue ways. The installer should comply with Building Regulations requirements in respect of providing a Notice Plate giving details on the chimney, flue lining, hearth and fireplace installation. BK545 Rev06...
  • Page 9: Installing The Stove

    It is easier to lower one side of the throat plate first to help remove it from its position and to allow it to fit through the opening of the stove. Once the throat plate has been removed you can also remove the rear liner(s). BK545 Rev06...
  • Page 10: Assembling The Grate Bars

    5.5 Connecting the spigot outlet to the flue system The flue pipe must be fitted inside the outlet spigot as shown in Figure 2 on the following page. Failure to do so could result in the spillage of condensation running down the flue. BK545 Rev06...
  • Page 11: Sealing Of Terminals

    • On the rear leg of the stove, loosen the pozi screw, and rotate the inner ‘cam’ shaped levelling foot until this touches the hearth. • Re-tighten the pozi screw. Check the stove is level with a spirit level. • Repeat for the other rear leg. BK545 Rev06...
  • Page 12: Firebox Liner Panels

    For the majority of Arada stoves, the throat plate sits on top of the side and rear panels. These should come fitted to your stove, if however they are not, proceed as follows to fit them: •...
  • Page 13 The importance of an adequate air supply to the room. The importance of regularly having the chimney swept / inspected. That a protective glove should be used when operating the stove. How changes in the weather can effect the performance of the stove. Using the correct fuels. BK545 Rev06...
  • Page 14 Dry Stove Installation Guide Manual last updated: January 2014 © Arada Ltd 2014 Arada Ltd - The Fireworks - Weycroft Avenue - Axminster - Devon - EX13 5HU T: +44 (0)1297 35700 - F: +44 (0)1297 35900 info@aradastoves.com - www.aradastoves.com...
