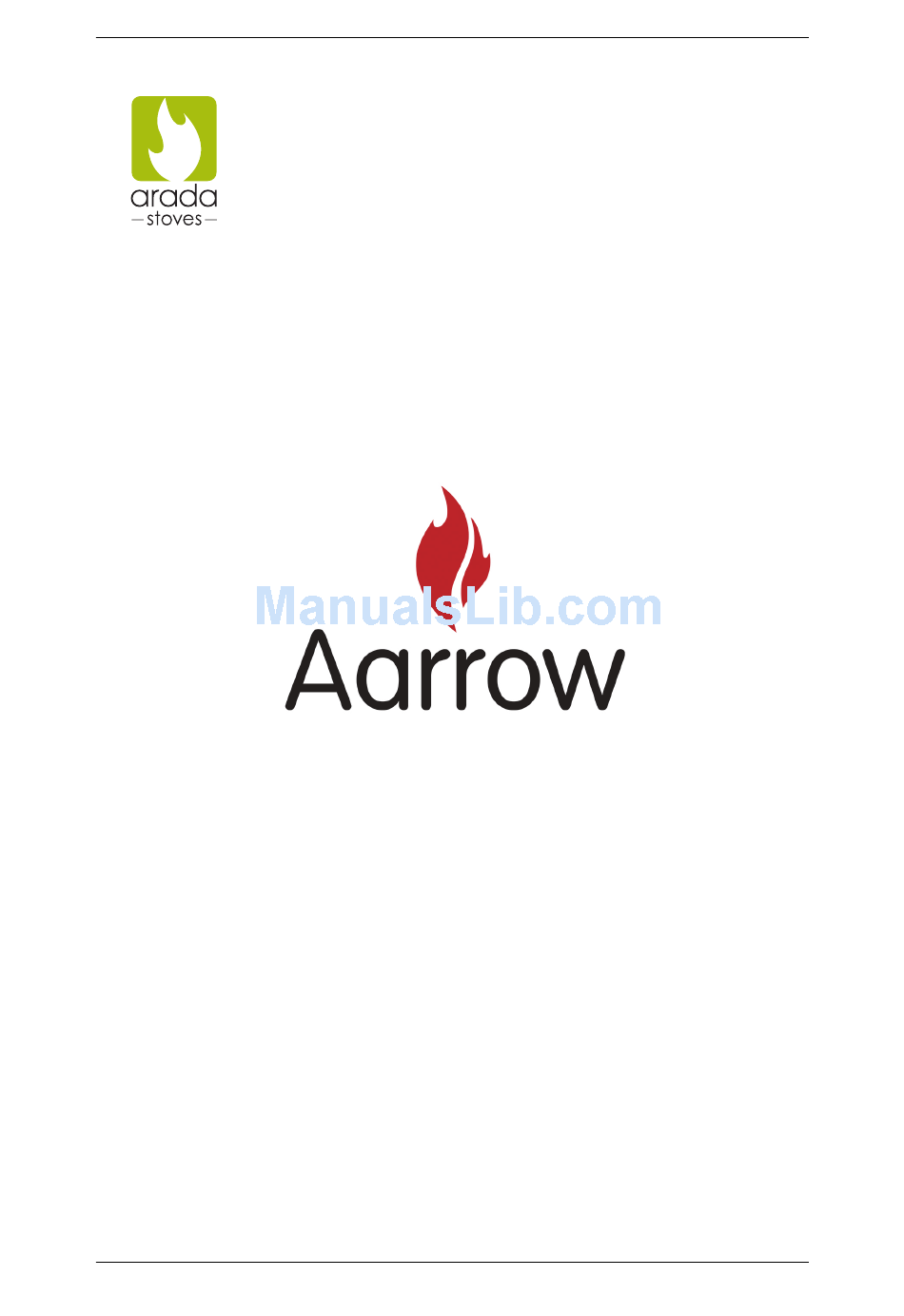

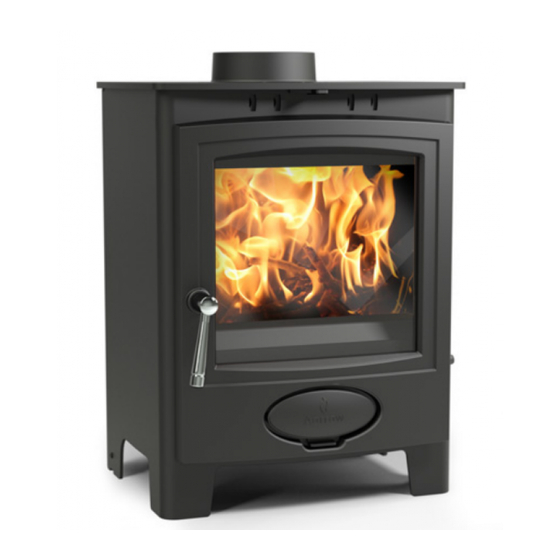

Aarrow Stove User Guide
Aarrow Stove User Guide
March 2015
BS EN 13240:2001 +A2:2004 CE
BK530 Rev11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aarrow and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arada Aarrow

Summary of Contents for Arada Aarrow

  • Page 1 Aarrow Stove User Guide Aarrow Stove User Guide March 2015 BS EN 13240:2001 +A2:2004 CE BK530 Rev11...
  • Page 2 Your Aarrow stove is built to the highest standard of craftsmanship using the best materials and the most modern equipment available. It is a highly e cient and sophisticated piece of machinery and when properly installed and operated it should provide a lifetime of heating satisfaction.

  • Page 3: Table Of Contents

    Aarrow Stove User Guide Contents Warnings Health and Safety ..... . . Smoke control areas ..... .
  • Page 4 8.2 Convected heat ......9 Ongoing care for your Aarrow stove Adjusting the door hinges ....

  • Page 5: Warnings

    Do not use aerosol sprays or any other ammable materials near the appliance when in use. Arada Ltd will not be responsible for any consequential or incidental loss or injury however caused. Any manufacturer’s instructions must not be taken as overriding statutory requirements.

  • Page 6: Smoke Control Areas

    Aarrow Stove User Guide 1.2 Smoke control areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an o ence to emit smoke from a chimney of a building, from a furnace or from any xed boiler if located in a designated smoke control area.

  • Page 7: Solid Fuel

    Arada recommends the use of HETAS approved smokeless fuels which have been deemed suitable for use on closed appliances including multi fuel stoves, these are:...

  • Page 8: Before Using Your Stove

    (www.solidfuel.co.uk) or HETAS (www.hetas.co.uk). 3 Before using your stove Aarrow stoves are designed to be operated with the re door(s) closed at all times, apart from refuelling (when alight) or cleaning (when cold). Never leave the appliance unattended for an extended length of time with the door(s) open.

  • Page 9: Air Inlet Controls

    4 Air inlet controls If you have an Aarrow iSeries stove please turn to section 4.2.1 on page 7 for information on how your air control system works and should be operated as it di ers from the information below.

  • Page 10: Primary Air

    Aarrow Stove User Guide The primary air inlet provides under draught to the base of the re chamber and the airwash system (secondary air) provides overdraught and airwash jets. The exact controls may di er from those illustrated in this manual but will work in the same way.

  • Page 11: Series Air Controls

    This is to prevent shut down of the appliance. 4.2 i Series air controls 4.2.1 i Series Cassette Stoves The Aarrow i Series cassette stove range features a single air control slider which correctly and conveniently con gures both the primary and secondary air ow.
  • Page 12 Aarrow Stove User Guide Figure 2: i Series air inlet controls. BK530 Rev11...

  • Page 13: Series Freestanding Stoves

    Aarrow Stove User Guide 4.2.2 i Series Freestanding Stoves The Aarrow i Series freestanding stove features two air control sliders. The slider on the right hand side is used when burning solid fuels, whereas the slider on the left is used when burning wood. Keep the unused slider in the closed position.

  • Page 14: Fuel Overloading

    Aarrow Stove User Guide out onto a su cient quantity of glowing embers and ash that the new fuel charge will ignite in a reasonable period. If there are too few embers in the re bed, add suitable kindling to prevent excessive smoke 5.1.2 Fuel overloading...

  • Page 15: Burning Solid Fuels

    Aarrow Stove User Guide On stoves with a riddling lever On stoves with a riddling lever at the front of the stove body, to the side of the stove, lever push the control inwards. the control upwards. 2. Set the re by using scrunched up newspaper and placing a layer of dry kindling wood on top of this.
  • Page 16 Aarrow Stove User Guide Solid fuel burns best with its air supply for combustion coming from underneath the fuel. To achieve this the burn will be controlled by the primary air control (see section 4 on page 5). This allows you to control the ow of air underneath the grate.

  • Page 17: Burning Solid Fuels In An I Series Stove

    Aarrow Stove User Guide Whilst burning solid fuel it can be bene cial to occasionally riddle the grate bars so any burnt fuel will fall between the grate bars into the ash pan below. This will ensure a good under draught is maintained. This should be done with the supplied operating tool whilst wearing protective gloves.

  • Page 18: Warning - Fume / Smoke Emissions

    Aarrow Stove User Guide below. This will ensure a good under draught is maintained. This should be done with the supplied operating tool whilst wearing protective gloves. 5.5 Warning - Fume / Smoke emissions Warning: Properly installed, with a suitable ue or chimney, operated and maintained correctly, this appliance will not emit fumes into the dwelling.

  • Page 19: Further Information For All Stove Owners

    Aarrow Stove User Guide 6 Further information for all stove owners 6.1 Door glass The door glass should remain clear during normal burning. However under certain conditions, such as burning at a low rate, using damp wood or overnight burning, the glass may become somewhat blackened. To remedy this, operate the appliance at a fast rate.

  • Page 20: Replacement Parts

    All replacement parts or accessories can be ordered from your local stove dealer or online direct from Arada at visit www.aradastoves.com/support. It is worth noting that the tting of non-o cial Arada parts to your stove may invalidate its guarantee. 6.5 Ash removal...

  • Page 21: Further Information For Multi Fuel Stove Owners

    7 Further information for multi fuel stove owners 7.1 Multi fuel or Flexifuel grates The grate in your Aarrow stove comprises of a series of reciprocating cast iron bars seated on a pivoted comb. These should come pre-assembled in your new stove.

  • Page 22: How Heat Is Delivered By Your Stove

    8 How heat is delivered by your stove 8.1 Radiant heat All Aarrow stoves radiate heat into the room. The radiated heat is most intense at the front of the stove and less intense the further you move away from the stove.

  • Page 23: Convected Heat

    Aarrow i Series cassette stoves bene t from having a convection system which further encourages this movement of air supplying additional heat to the room. The colder air is drawn into a chamber at the base of the stove and warms up as it goes around the back of the stove before entering the room from the top of the stove.

  • Page 24: Liners / Rebricks

    Aarrow Stove User Guide If the re door needs to be raised, please follow the instructions below: When the appliance is cold, open the re door so that it is at right angles to the front of the stove and lift the re door up o the hinges.

  • Page 25: Further Resources / Reading

    However if you have any queries, doubts or would like further advice please do not hesitate to speak to your Aarrow dealer or call us. You will nd our contact details after this paragraph as well as a list of resources where you can discover more information about your stove and associated articles.

  • Page 26: Guarantee

    Aarrow Stove User Guide 11 Guarantee When you buy an Arada stove, you are not only buying a rst class appliance, you are receiving a commitment from us to look after you and your appliance. 11.1 Guarantee If any part of the main body of the stove fails due to a manufacturing or...
  • Page 27 2. You must be the original purchaser of the stove in order to make a claim. This guarantee is not valid in relation to any claims made by someone who did not originally purchase the stove from Arada or an approved Arada dealer.

  • Page 28: General

    11. The guarantee is only valid where any spare parts used are supplied by Arada or an approved Arada dealer. The use of spares other than those supplied by Arada Limited shall invalidate the guarantee. Parts can be sourced through an approved dealer or directly from Arada online at www.aradastovesandspares.com.
  • Page 29 Aarrow Stove User Guide March 2015 BK530 Rev11...
  • Page 30 Aarrow Stove User Guide This page is left intentionally blank BK530 Rev11...
  • Page 31 Aarrow Stove User Guide Manual last updated: March 2015 ©Arada Ltd 2015 T: +44 (0)1297 35700 info@aradastoves.com Arada Ltd - Weycroft Avenue - Axminster - Devon - EX13 5HU www.aradastoves.com BK530 Rev11...
