Matrix MyRide Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
M y R i d e S e R V i C e M A N U A l

Advertisement

loading
Need help?

Need help?

Do you have a question about the MyRide and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix MyRide

Summary of Contents for Matrix MyRide

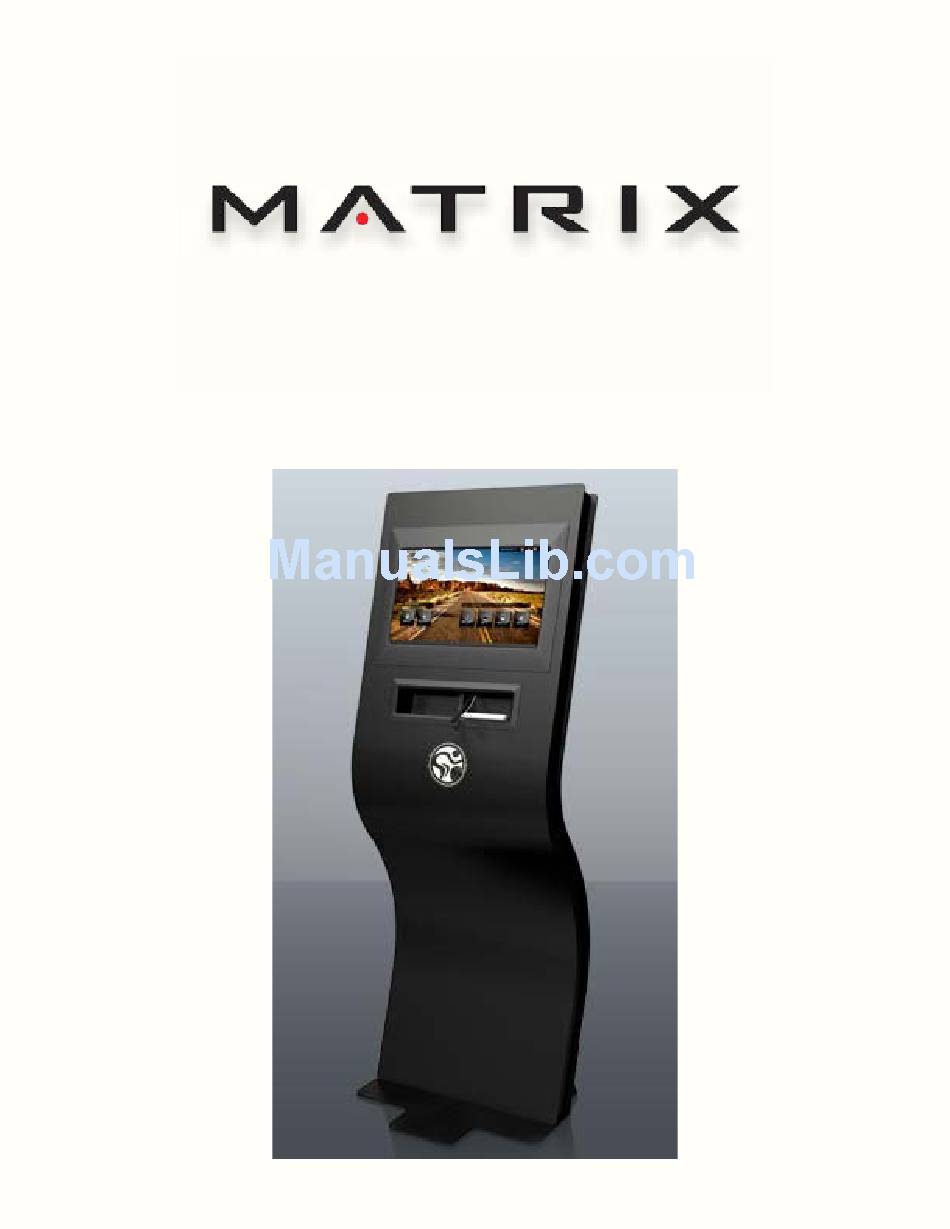

  • Page 1 M y R i d e S e R V i C e M A N U A l...

  • Page 2: Parts List

    (Figure C). 6. Install the large fin with one bolt at the top of the fin and one at the bottom to hold the large fin to the MyRide frame (Figure D). Push up on the large fin so that the holes in the fin align with the bottom of the slots, then install the remaining mounting bolts.
  • Page 3 MyRide ASSeMBly GUide 1.1 ASSeMBly iNSTRUCTiONS - CONTiNUed 7. Once all the bolts and washers along with the fins have been installed, tighten the hardware in a crisscross fashion while making sure the edges of the fins are the at top of the plate.
  • Page 4 (see Figure A for locations). 2. Insert the USB flash drive into the USB slot on the back of the unit (see Figure A for location) and power up the MyRide. 3. The unit will power up and go to the update screen after it flashes a sliding bar. Follow the on screen instructions when the monitor asks that the USB flash drive be removed.
  • Page 5 "Register Later" (Figure C). 7. On the main start up screen, touch and release the white emblem, then the words "MYRIDE V3". The monitor should switch to the administration window. Press and release on the check mark inside the web box to remove it. Press and release on the TV to add the check mark if not there to activate the TV tuner.
  • Page 6 An email should have been sent with a 16 digit registration number. Record this number. f. Go back to the registration window on the MyRide unit (it should now show a number and keypad). Enter the 16 digit registration number.
  • Page 7 MyRide TROUBleSHOOTiNG 2.1 TROUBleSHOOTiNG - NO CONSOle diSPlAy SyMPTOM: 1) The console turns on, but has the message "No Signal Input:. 2) The monitor does not turn on at all. SOlUTiON: 1) Check the VGA cable (Figure A) that connects the monitor to the mini PC. Make sure that both ends are attached properly.
  • Page 8 MyRide TROUBleSHOOTiNG 2.2 TROUBleSHOOTiNG - BlUe OR WHiTe SCReeN SyMPTOM: 1) The monitor is stuck on a blue or white screen. SOlUTiON: 1) The VGA cable (Figure A) is not connected properly or is damaged. a. Verify the connection of the VGA cable at the monitor and mini PC. Check that all 4 cable screws are attached properly (Figure B).
  • Page 9 1) The monitor has power, but is frozen or the touch screen aspect does not work. SOlUTiON: 1) Reset the power on the Myride. This could be caused by a software issue, and resetting power will resolve the issue. This should always be the first attempted fix.

  • Page 10: Troubleshooting - Audio Issues

    MyRide TROUBleSHOOTiNG 2.4 TROUBleSHOOTiNG - AUdiO iSSUeS SyMPTOM: 1) The sound is non-existent or very low volume. SOlUTiON: 1) The first thing to try is to attempt to recreate the issue with a different set of headphones, preferably ones that are a different brand than the ones having the issue.
  • Page 11 MATRix FiTN e S S S y STe M S C O R P. 1610 LANDM ARk D R IV E C OTTAG E GR O V E W I 53 52 7 U S A w w w. m a t r i x f i t n e s s . c o m TOLL FREE 866.693.
