KEY:
B = Back
R = Roof
RS = Right Side
H = Handle
F = Front
G = Grille
LS = Left Side
T = Tray
1
PIECES
]
R s
]
]
s
F
]
R
]
1307 — 09 /22 — A4
Made in China for Prevue Pet Products, Inc., 224 N Maplewood Ave, Chicago IL 60612 USA • 1 [312] 243-3624 • www.prevuepet.com • customerservice @ prevuepet.com

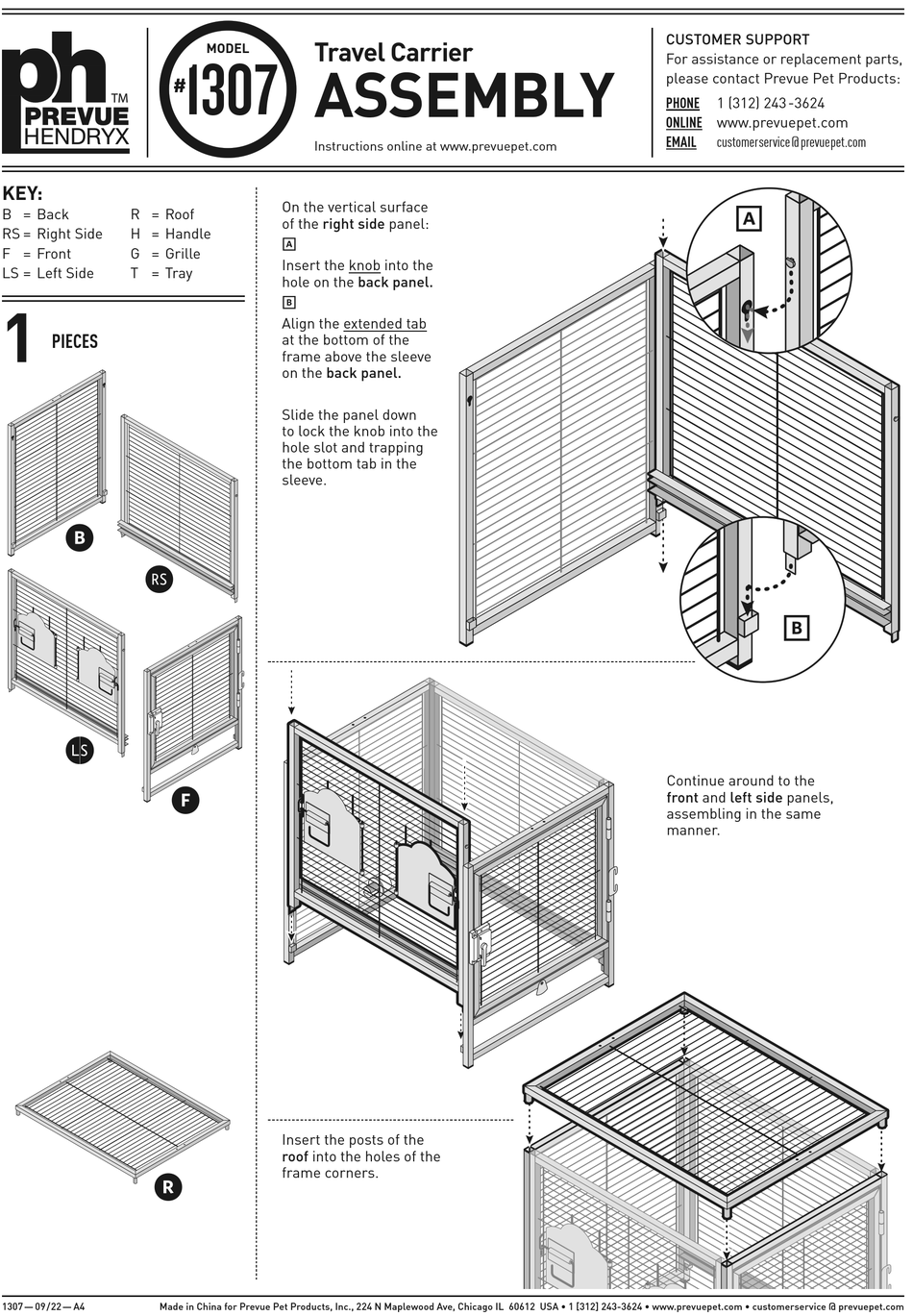

Travel Carrier
MODEL
13 7
ASSEMBLY
Instructions online at www.prevuepet.com
On the vertical surface
of the right side panel:
Insert the knob into the
hole on the back panel.
b
Align the extended tab
at the bottom of the
frame above the sleeve
on the back panel.
Slide the panel down
to lock the knob into the
hole slot and trapping
the bottom tab in the
sleeve.
Insert the posts of the
roof into the holes of the
frame corners.
CUSTOMER SUPPORT
For assistance or replacement parts,
please contact Prevue Pet Products:
PHONE
1 (312) 243 -3624
ONLINE www.prevuepet.com
EM IL
customerservice@prevuepet com
]
B
]
Continue around to the
front and left side panels,
assembling in the same
manner.
