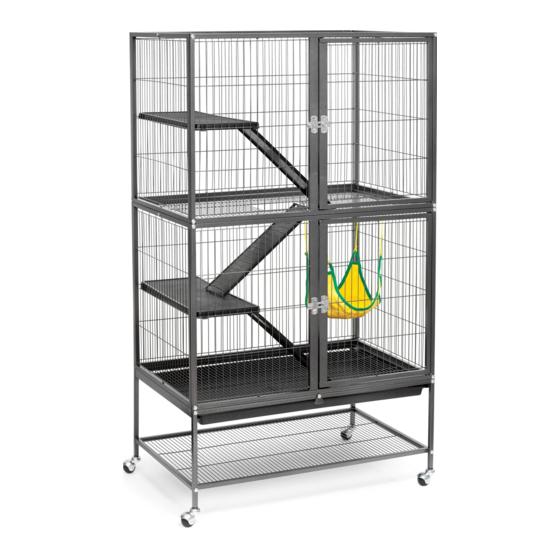

Prevue Hendryx 485 Manual

Feisty Ferret
Home
Model: # 485 (A)
1
To assemble the BASE, you
will need these pieces:
× 4
(long )
× 4
2
To assemble the first level
CAGE FRONT & BACK,
you will need these pieces:
× 4
(long)
3
To assemble the first level
CAGE FLOOR & SIDES,
you will need these pieces:
× 4
(long)
485 (A) — 07/15 — USL
read first
• TOOLS: Allen wrench (included).
Have needle nose pliers (not included)
on hand. If using power tools, be
careful not to over-tighten screws.
Attach the storage shelf to the leg frames with
one long screw in each corner. Note: the
windbell lock on the front leg frame faces out.
Guide the lower level front panel (with door)
and back panel into the leg frames as illustrated.
Note: the lower panels have openings at the
top corners.
Attach the grille/tray track frames. Secure the
tracks in place with one long screw in each
corner (lower hole). Note: the track
orientation is with the open end
facing the front.
Slide the first floor panel
down into place.
Made in China for Prevue Pet Products, Inc., Chicago IL USA
REVIEW BEFORE ASSEMBLY
For assistance or replacement parts,
please contact Prevue Pet Products:
TOLL-FREE 800.243.3624
ONLINE
EMAIL
Flip unit over and fully insert
casters into frame legs.
Slide the lower level side panels into place.
Note: the track that will hold the mid-level
floor is at the top and facing in.
Secure the panels with one
long screw in each
bottom corner.
