Prevue Hendryx 3154 Assembly Instructions

cage assembly instructions
Select Cage

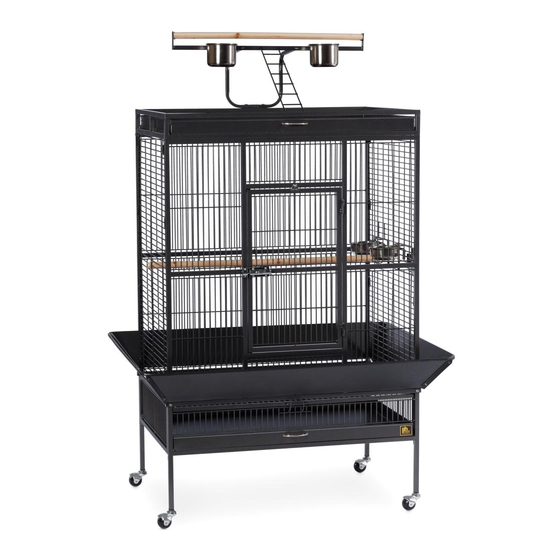

Model: # 3154
Hammertone Models

getting started!

READ THESE NOTES FIRST:
• Enlist A Friend: While this large cage may be assembled
by one person, the assembly would be made easier with two
people.
• Count Hardware: Extra screws may be included. If the
screw count is short, please contact Prevue Customer Service.
• Review All Parts: If wires are bent during shipping,
they may be straightened with needle nose pliers. For seriously
damaged pieces, please contact Prevue Customer Service.
parts
L2
KEY:
F2
PT = Playtop
L = Left panels
F = Front panel
L1
R = Right panels
B = Back panel
F1
G = Grille
T = Tray
SG = Seed Guards
G
T1
exterior: 35⅜"L × 23½"W × 67"H (floor to playtop perch)
w/seed guards: 43¾"L × 32"W
interior: 34½"L × 22¾"W × 36½"H
wire: [gauge] 9 & 9 [spacing] ¾"
• Tools: An allen wrench is included. You will need a small-head
slot or phillips screwdriver.You may need needle nose pliers to remove
slugs or straighten wires. You may use your own hand tools, but we
recommend power tools! Parts can be over-tightened
DO NOT
and damaged. Prevue is not responsible for this type of damage.
Review these instructions thoroughly before attempting to
assemble the cage. If you require assistance, please contact
Prevue Customer Service at 800.243.3624 or through links
online at prevuepet.com
touch-up
paint & brush
PT
B2
PT1
R2
B1
R1
SG3
SG2
T2 SG1 SG4
steps
a
1
Assemble the base: Insert the tabs on side
lower (L1 & R1) panels into the sleeves on the
legs of front lower (F1) & back lower (B1) frame
panels (see detail). The tray/grille channels on
the side panels should face the inside of the cage.
b
1
Insert the front upper (F2) panel over the corner
posts of the front lower frame.
Secure the front panel with a long hex screw
in each lower corner. The hex screw will pass
through the hole in the front upper panel frame
leg, through the hole in the front lower panel
corner post, and to the threaded receiving hole
in the opening of the side lower panel.
Follow the same procedure for the back. Insert
the back upper (B2) panel over the corner posts
of the back lower frame, align the side frames
and secure the corners with the long hex screws.
{ 8 } long hex screws
{ 4 } short hex screws 2
{ 8 } short hex screw & Assemble the sides: Slide the right side upper
nut pairs for seed guard
(R2) panel down through the channel guides along
{ 1 } allen wrench
the inner front & back panel frame legs. The third
channel guide down is hooked for an extra level of
{ 2 } sets of hardware for
tray handles
stability (see detail).
Three heavy vertical wires on the side panel
{ 4 } cup holders
extend below lowest horizontal wire. Align the
{ 4 } stainless steel cups
extended wires with the corresponding holes
(short cups for Playtop)
along top surface of the side lower panel.
{ 2 } wood dowel perches
Repeat for the left side upper (L2) panel.
(long dowel for cage;
short dowel for Playtop)
a
3
{ 4 } rolling casters
If you have someone helping you, have them
assemble the playtop tray (T2) and bottom
{ 1 } grille safe-clip
tray (T1) handles.
Put a washer on the small slothead screw, poke
the washer/screw combo through the hole from tray
inside, align it with the handle, and tighten snuggly.
L1
B1
F1
R1
F2
B2
NOTE: Side upper panels may
be switched R to L—just
L2
R2
make sure cup doors and
heavy vertical wires on either
side panel swing/face out.
T1
T2
