Summary of Contents for thomann Thon DJ Table 1500

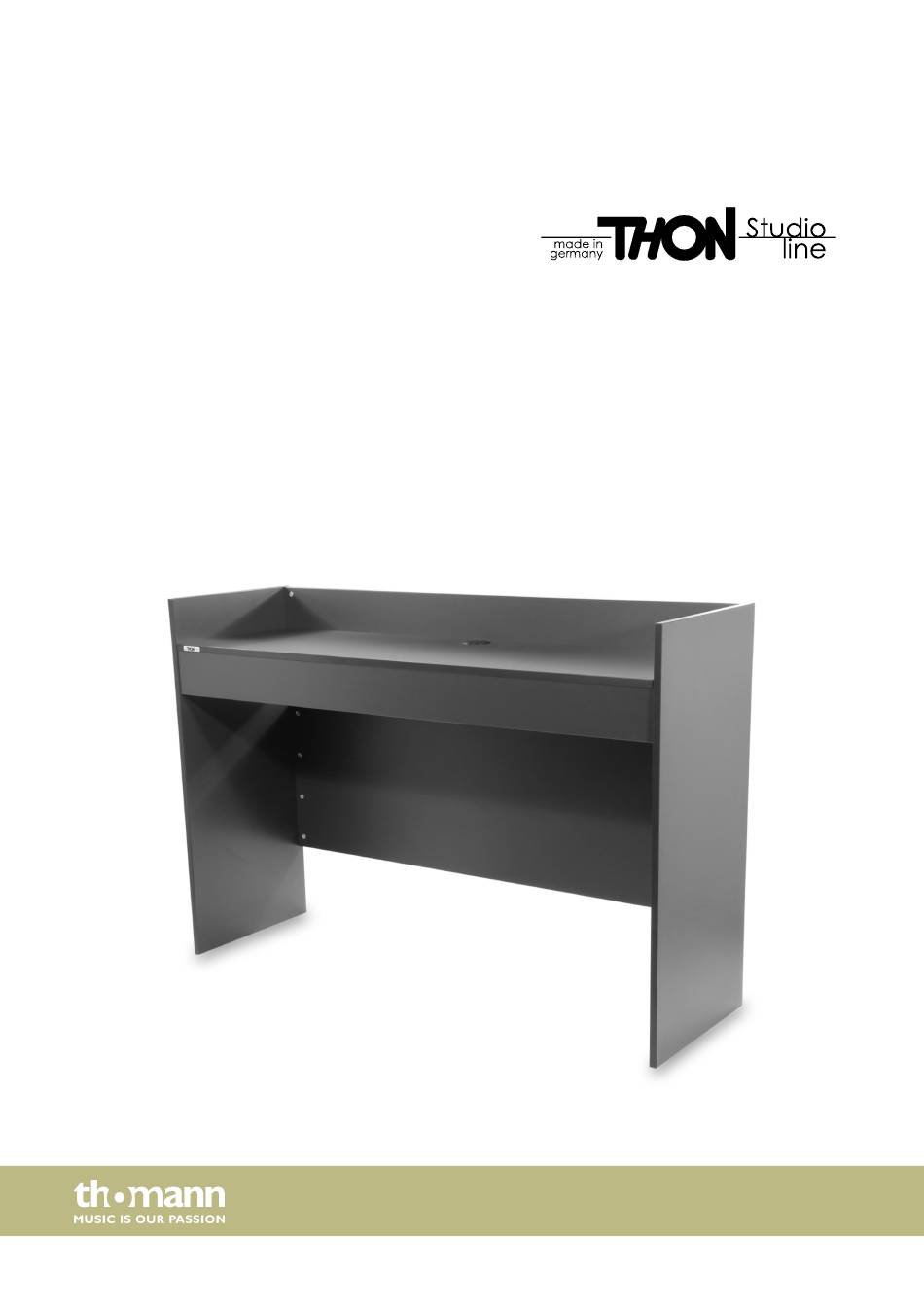

- Page 1 Thon DJ Table 1500 studio desk assembly instructions...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 15.11.2021, ID: 503688, 503689...
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Installation............................................6 Technical specifications......................................12 Protecting the environment....................................13 Thon DJ Table 1500... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke! Never let children play unattended with the product. -
Page 5: Scope Of Delivery
Scope of delivery Before you assemble the studio desk, make sure the contents of package is complete according to the following list. Thon DJ Table 1500 2 × side panel, 19 mm FPY chipboard 1 × upper rear wall, 19 mm FPY chipboard 1 ×... -
Page 6: Installation
Installation Installation Place all components on a suitable mounting surface for mounting. Use a soft padding to prevent damages to the surfaces. Overview The following figure shows an overview of the individual components. ö & Right side panel Lower rear wall Left side panel Connector bolt Upper rear wall... - Page 7 Position all connector housings so that the respective connecting bolts can be completely sunk into the holes and the arrow posi‐ tion of the connector housings points towards the hole. Upper rear wall Connector bolt Connector housing Wooden dowel Thon DJ Table 1500...
- Page 8 Installation Place the connector housings, the connecting bolts and the wooden dowels into the holes provided in the table top (5 × connection bolts, 14 × connector housing, 12 × wooden dowel). Table top Connector bolt Connector housing Wooden dowel Place the connector housings and the wooden dowels into the holes provided in the front panel (9 ×...
- Page 9 Put the front panel onto the connecting bolts of the table top and tighten the connector housings of the front panel clockwise to lock the connection with the inserted connecting bolts. & Table top Front panel Thon DJ Table 1500...
- Page 10 Installation Put the table top onto the connecting bolts of the upper rear wall and tighten the connector housings of the table top clockwise to lock the connection with the inserted connecting bolts. Upper rear wall Table top – mounted to the front panel studio desk...
- Page 11 Check all connections for tight fit. Place the cable feed-through in the recess of the table top. ö ö Right side panel Left side panel Table top – mounted with front panel and upper rear wall Lower rear wall Cable feed-through Thon DJ Table 1500...
-
Page 12: Technical Specifications
Technical specifications Technical specifications Thon DJ Table 1500 WH, white Item number 503688 Thon DJ Table 1500 BK, graphite Item number 503689 Dimensions (W × H × D) 1500 mm × 900 mm × 450 mm Weight approx. 36 kg... -
Page 13: Protecting The Environment
Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging. Thon DJ Table 1500... - Page 14 Notes studio desk...
- Page 16 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
