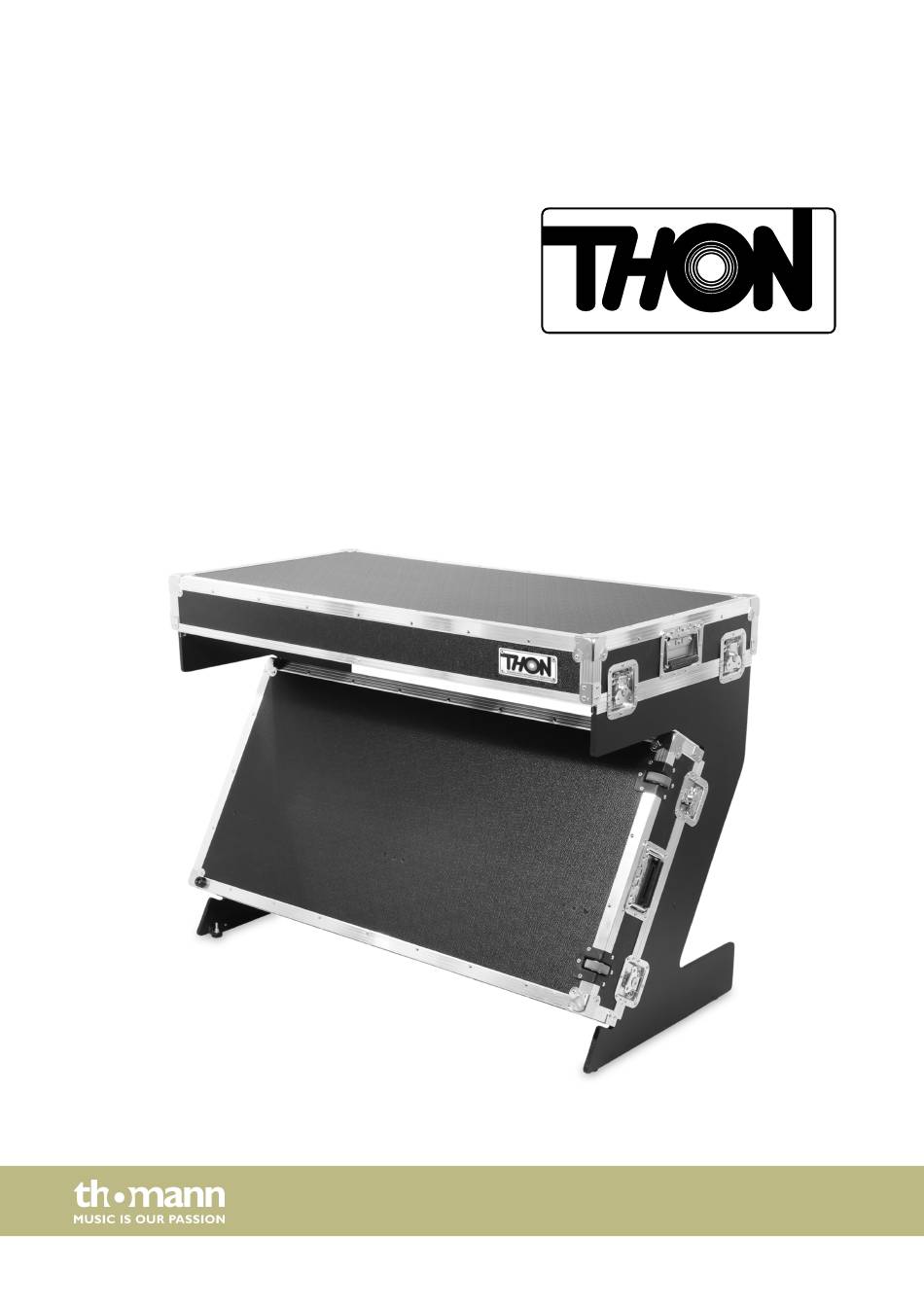

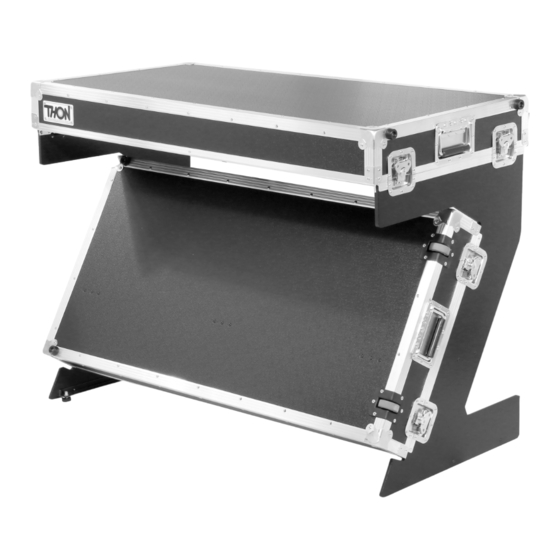

- Page 1 Thon DJ Table Z-Style DJ Table assembly instructions...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 23.03.2022, ID: 462836...
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Installation............................................6 Technical specifications......................................10 Protecting the environment....................................11 Thon DJ Table Z-Style... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke! Never let children play unattended with the product. -
Page 5: Scope Of Delivery
Scope of delivery Scope of delivery Thon DJ Table Z-style with the following components: – 8 × spring-loaded butterfly lock – 4 × folding handle – 8 × flat steel corner – 6 × rubber foot – 2 × recessed edge castor on the case –... -
Page 6: Installation
Installation Installation To assemble the case, place it on a suitable mounting surface with the edge castors facing up. Use a soft padding to prevent dam‐ ages to the surfaces. Open the butterfly locks and put the case lid with the edge castors next to the case bottom with the Z-shaped side panels. Open the lashing strap that secures the Z-panels in the bottom of the case. - Page 7 Installation Set up the upper Z-panel and close the lateral butterfly locks so that the Z-panel is fixed. Then set up the lower Z-panel and close the lateral butterfly locks so that the Z-panel is fixed. Thon DJ Table Z-Style...
- Page 8 Installation Mount the case lid for stabilizing the DJ Table! Lay the case on the mounting surface as shown. Lay the case lid flush with the butterfly locks on the Z-panels as shown and close the butterfly locks so that the case lid is fixed. DJ Table...
- Page 9 Set up the fully assembled unit. Open the bungee loop of the tray on the inside of the case lid and carefully lay the tray onto the Z-panel brackets. Secure the tray to the Z-panels with the two factory-installed star knob screws. Thon DJ Table Z-Style...
-
Page 10: Technical Specifications
Technical specifications Technical specifications Working height tabletop approx. 900 mm Material 7 mm birch multiplex 30 mm × 30 mm aluminium profiles Colour Black Item no. 462836 Dimensions case (W × H × D) 1224 mm × 604 mm × 275 mm Weight 24.1 kg DJ Table... -
Page 11: Protecting The Environment
Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging. Thon DJ Table Z-Style... - Page 12 Notes DJ Table...
- Page 13 Notes Thon DJ Table Z-Style...
- Page 14 Notes DJ Table...
- Page 16 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
