Summary of Contents for Clarion VMA1891

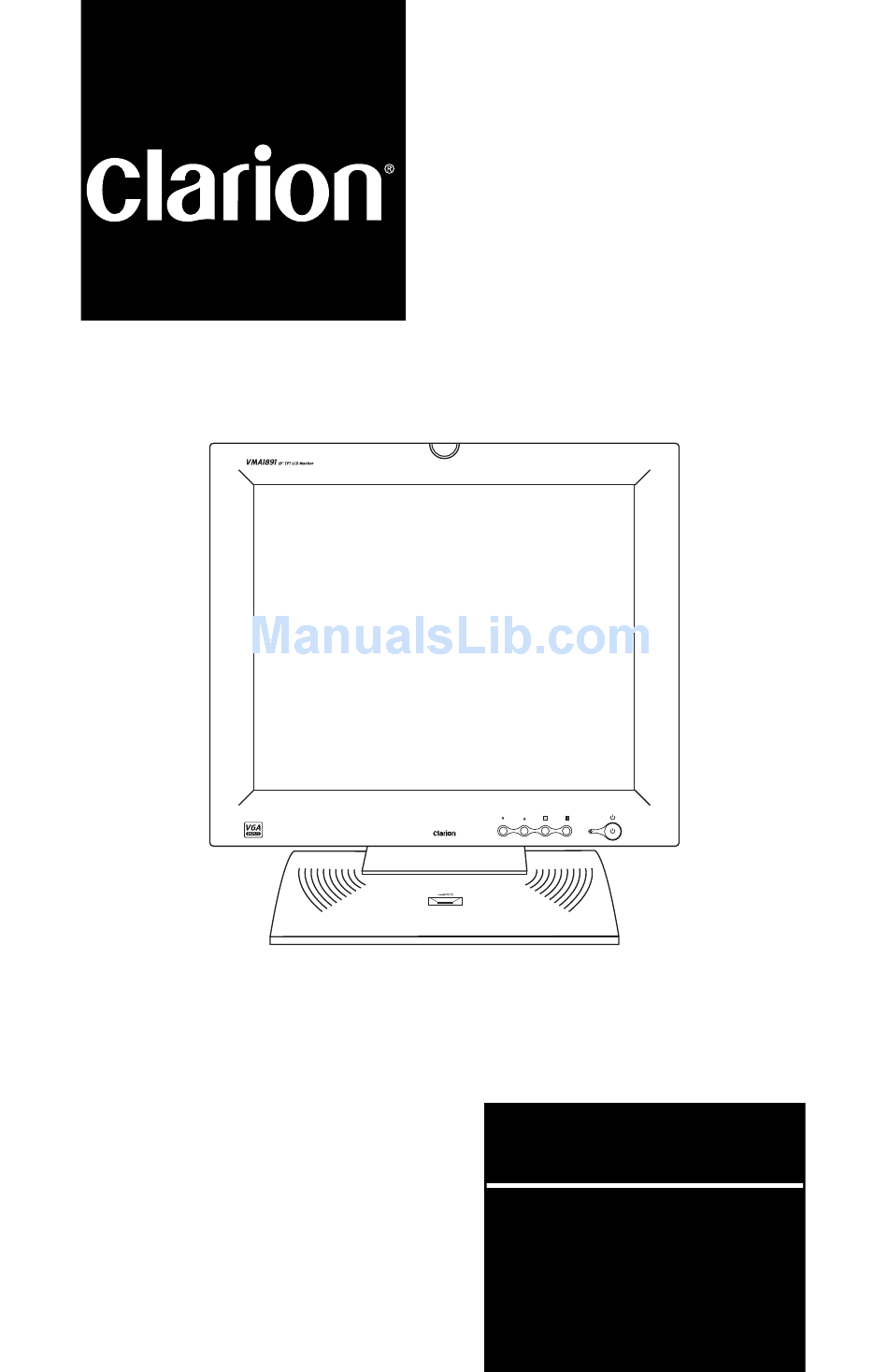

- Page 1 VMA1891 18.1” TFT LCD COLOR M O N I T O R OWNER’S MANUAL INSTALLATION GUIDE...
-
Page 3: Table Of Contents
NTRODUCTION The Clarion VMA1891 is a full-featured 18.1" TFT LCD Color Monitor. It can be used as: • A stand-alone monitor with a home PC or Laptop Computer. • A monitor integrated into a Clarion mobile multimedia system using auxiliary built-in Video Composite (RCA) or S-Video inputs. -
Page 4: Package Contents
• Small black and shiny dots inside the liquid crystal panel are normal for liquid crystal products. ACKAGE ONTENTS The Clarion VMA1891 comes with the following items: • RGB Cable for PC or Laptop Connection • Video RCA Connector • Three Conductor AC Power Cord •... -
Page 5: Connector Locations
ONTROLS AND VGA Input Connector S-Video Input Connector Composite Video Input RS232 Port (Not Available) USB Input Connector PERATION ESCRIPTIONS When using this monitor in a 110Vac home environment. Plug the monitor into a 110Vac wall socket with the supplied AC power cable. Turn the rear AC Power switch to the ON position. -
Page 6: Osd Operation Descriptions
VMA1891 18.1” TFT LCD Color Monitor OSD O PERATION 1. Press the OSD Menu button or DN button to scroll forward or backwards for each monitor settings. 2. Press the OSD Menu button individual function operations. OSD F UNCTIONS AND... -
Page 7: Cleaning The Cabinet
OSD F UNCTIONS AND Icons Sub Menus Auto 1) All 2) Auto Position Adjust 3) Auto Phase 4) Exit Input 1) RGB 2) Video (RCA) Source 3) S-Video Display 1) Normal 2) Expand Size 3) Full Language 1) English 2) German 3) French 4) Italian 5) Spanish... -
Page 8: Ac Home Pplications
1. Connect the L/R audio outputs of the VCR player to the R-AUDIO-L inputs. 2. Connect the video output to the Video input on the VMA1891. NOTE: Since there is only one set of L/R audio inputs on the VMA1891, additional components must route their audio signals through the VCR A/V inputs. -
Page 9: Wiring Precautions (+12V Operation )
NOTE: If there is no S-Video output on your DVD/CD player, connect its video output to the video input on the VMA1891. The S-Video output connection is preferred over the composite video output due to better signal quality. (+12V IRING RECAUTIONS Read all wiring precautions. -
Page 10: About Installation
Installation of mobile audio and video components requires experience with a variety of mechanical and electrical procedures. Even though this manual provides general application drawings for your new Clarion VMA1891, it does not show the exact installation methods necessary for your particular vehicle. -
Page 11: Specifications & Troubleshooting
PECIFICATIONS Power Requirement: Power Consumption: Weight: Dimensions: Panel Only: 17-11/16 x 15-3/16 x 3-5/16 in. (449 x 385 x 84 mm) With Stand 17-11/16 x 18-9/16 x 8-7/8 in. (449 x 470 x 225 mm) View Angle: Tilt Angle of Hinge Audio Output Display Type: Screen Size:... -
Page 12: Fcc Statement
Clarion Corporation of America 661 West Redondo Beach Blvd Gardena, CA 90247 800-Go-Clarion www.clarion-usa.com ©2000 Clarion Corporation, Gardena, CA 2000-VMA1891-10 Rev. 2 (8/00)
