- Page 1 7” LCD Color Monitor 8” LCD Color Monitor OWNER’S MANUAL...
-
Page 2: Table Of Contents

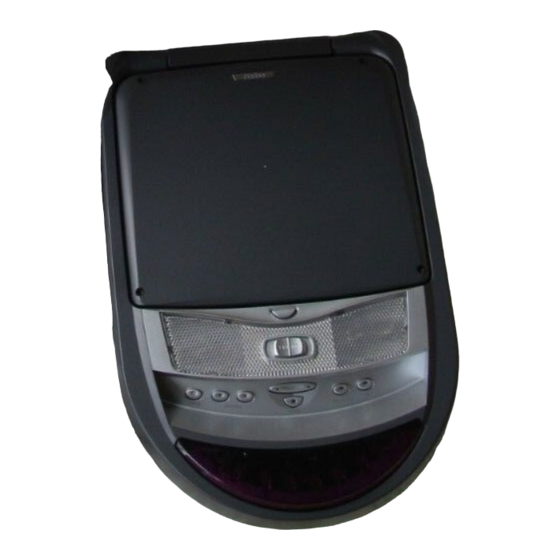

OHM720, OHM820 INTRODUCTION The Clarion OHM720/OHM820 is a full-featured 7”/8” LCD Color Monitor that can be used as a stand-alone monitor, or can be integrated into a mobile multimedia system. The OHM720/OHM820 has the following features: TFT Active Matrix Display... -
Page 3: Precautions
The OHM720/OHM820 is a TFT active matrix color LCD monitor that delivers a striking picture and superior image resolution. The OHM720/OHM820 can be used to enjoy video images with the Clarion video sources, even if no TV tuner is connected. -
Page 4: Monitor Button Functions
OHM720, OHM820 4. MONITOR BUTTON FUNCTIONS 5. DESCRIPTION OF IR REMOTE CONTROL Button Functions Monitor Release Button Dome Light Switch Power Button Channel Select Up Channel Select Down Mode Selector FM Modulator On/Off Button Auxiliary Input Selector Power LED 10 IR Sensor... - Page 5 1 Power Button for Monitor Powers on monitor 2 TV/Video Button Switches between A/V1, A/V2, TV. 3 FM Modulator Button Turns FM Modulator ON/OFF. 4 Auto Memory Button for TTX001 (TV Tuner) Locks channels with good reception. 5 Channel Up for TTX001 (TV Tuner) Changes TV channels up.
-
Page 6: Using Remote Control
6. USING REMOTE CONTROL Inside the vehicle, simply aim the IR Remote Control directly at the OHM720/ OHM820, or at a Clarion monitor, or video source with an IR eye input and press any desired button for better results. Also note the following: Aim the IR Remote Control from no further than 7 feet away and no more than 3 feet on either side of the sensor. -
Page 7: Installation Instructions
The OHM720/OHM820 is an overhead, flip-down 7"/8” monitor with an infrared (IR) eye. It will accept a video signal from any video source with composite video out. The IR eye will work directly with any Clarion video source product with an IR Eye Input. -
Page 8: Dome Light Wiring
White: Door Switch 11. DOME LIGHT ON/OFF SWITCH DESCRIPTION A three-position slide switch controls the lights integrated into the OHM720/ OHM820. Sliding the switch to the ON position will turn the lights on. The OFF position will prevent the lights from turning on at all times, and the auto position will allow the lights to turn on and off with the vehicle interior lighting. -
Page 9: Picture Adjustments
To adjust the picture use the mode button to select the mode feature you would like to adjust. Adjustment selections are as follow: Contrast Brightness Color Wide screen ON/OFF (OHM720 only) Tint Press the up button to increase and the down button to decrease. 14. FM MODULATOR (FM200) SYSTEM DIAGRAM OWNER’S MANUAL... -
Page 10: Tv Tuner (Ttx001) Installation Instructions And System Diagram
DIAGRAM 1. Insert the tuner into the back of the OHM720/OHM820. 2. Plug the ribbon cable into the back of the OHM720/OHM820. Connect another side of this cable to the TV Tuner (TTX001) 3. Screw the tuner down to the existing tuner holes. -
Page 11: Complete A/V System Diagram
OWNER’S MANUAL 16. COMPLETE A/V SYSTEM DIAGRAM... -
Page 12: Care And Maintenance
OHM720 Dimensions: OHM820 Dimensions: OHM720 Weight: OHM820 Weight: Operating Temperatures: Monitor Specification Display Type OHM720 Display Screen size 7.0" OHM820 Display Screen size 8.0" Format Screen Resolution Video Signal Video System Car Battery (DC 9-16V) DC 12V 15W (without Dome lights) Less than 1.5A (without Dome lights) -
Page 13: Warranty Information
5. The sole responsibility of Clarion Corporation under this Warranty shall be limited to the repair or replacement thereof, at the sole discretion of Clarion Corporation. - Page 14 661 West Redondo Beach Blvd. Gardena, CA 90247 1-800-GO-CLARION www.clarion.com OHM720-820 Rev.0 (12/01)
