Summary of Contents for Sunjoy L-GZ1035PAL

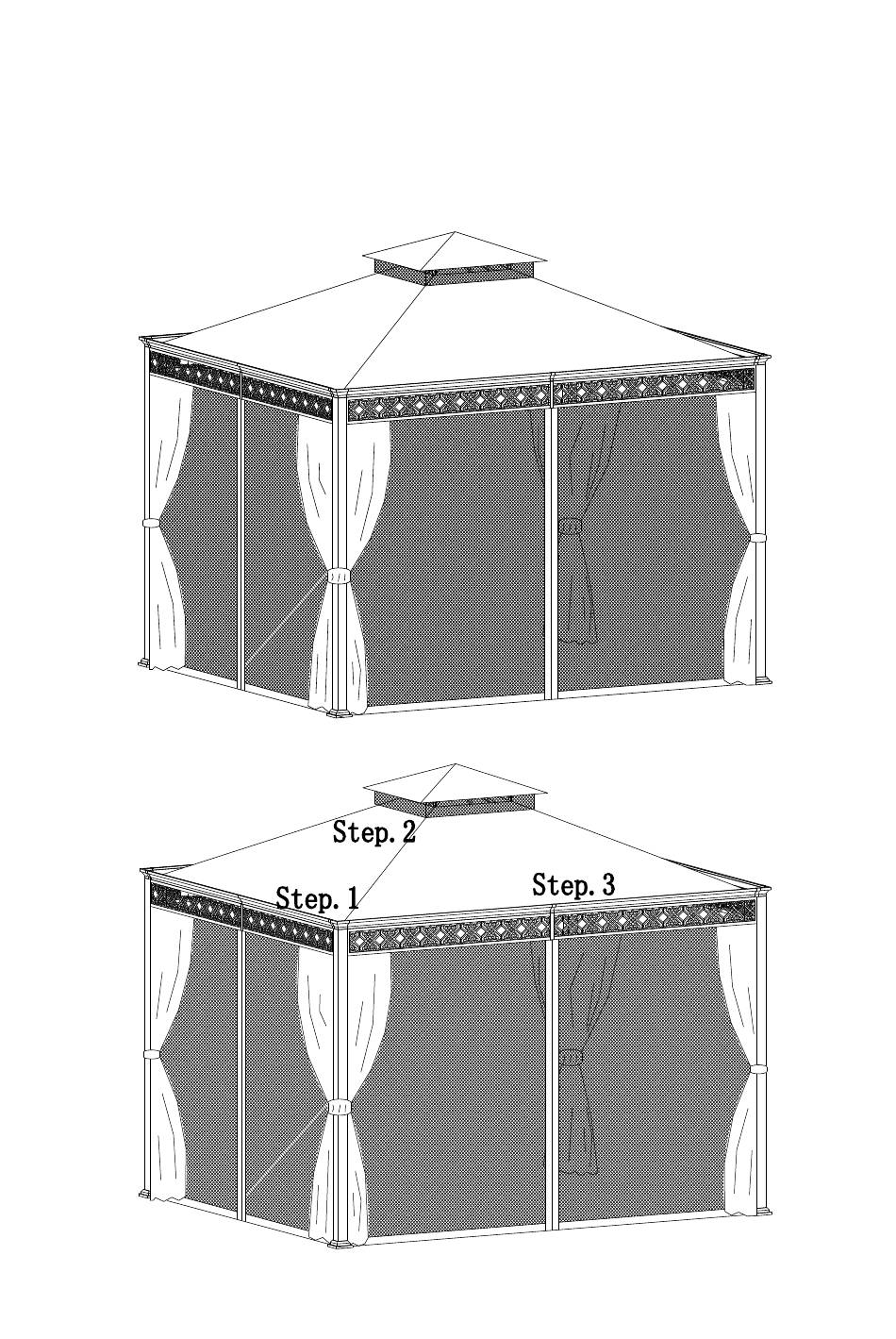

- Page 1 Assembly Instructions SUNCREEK SOFT TOP GAZEBO Item#L-GZ1035PAL SKU#7252133...
- Page 2 Warning To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. • Always place and assemble the gazebo on flat, level and horizontal ground. • Consult with your local governing authority/local municipal codes regarding installation of temporary structures before assembly.
- Page 3 Parts List Post Long side long screen Long side short screen Short side long screen Short side short screen Stake piece Stake cover Oblique beam Oblique beam connector Long central sill Long central sill connector Short central sill Short central sill connector corner decor Big canopy connector...
- Page 4 Big canopy fabric Netting Curtain...
-
Page 5: Hardware Pack
Hardware Pack 1 M6*20 Outer 64PCS hexagon bolt M6 Washer 80PCS M6 Nut 8PCS M6*25 Outer 8PCS hexagon bolt Fig.2 Insert the tube of Long side Fig.1 Cover the Post Fig.3Use bolt (AA) and long screen (B) into the Long (A) with stake cover washer (BB) to fasten side short screen (C), and... - Page 6 Fig.4 Fasten the screen Fig.5 Fasten the corner Fig.5-1. Fasten (B, C, D, E) on the post décor (K) on the post oblique beam (P3) on using bolt (AA) (A) using bolt (AA) and the screen using bolt washer (BB). washer (BB).
- Page 7 Fig.6. Insert the oblique Fig.7 Insert the oblique support Fig.8 Fasten the assembled support (H1) into the (H1) into the connector (M1) oblique support on the connector (H2). post (A) using bolt (AA) and washer (BB). Fig.9 Insert the central Fig.10 Attach hook (M3) on the Fig.11 Fasten...
- Page 8 Hardware Pack 3 Netting ring 104PCS Stake ￠8X180 16PCS Fig.16 Hang Netting（S） and Fig.17 Use Stake to fix Fig.15 Unfold curtain （ T ） on the Long canopy fabric （ R ） , then the gazebo on the netting tube（P1）and Short hook the canopy fabric to lawn.
- Page 9 Technique assistance: If you need tech. assistance, please call Sunjoy Group at 1-866-578-6569 from 8:00 am to 8:00 pm eastern standard time or email to customer.care@sunjoygroup.com.
