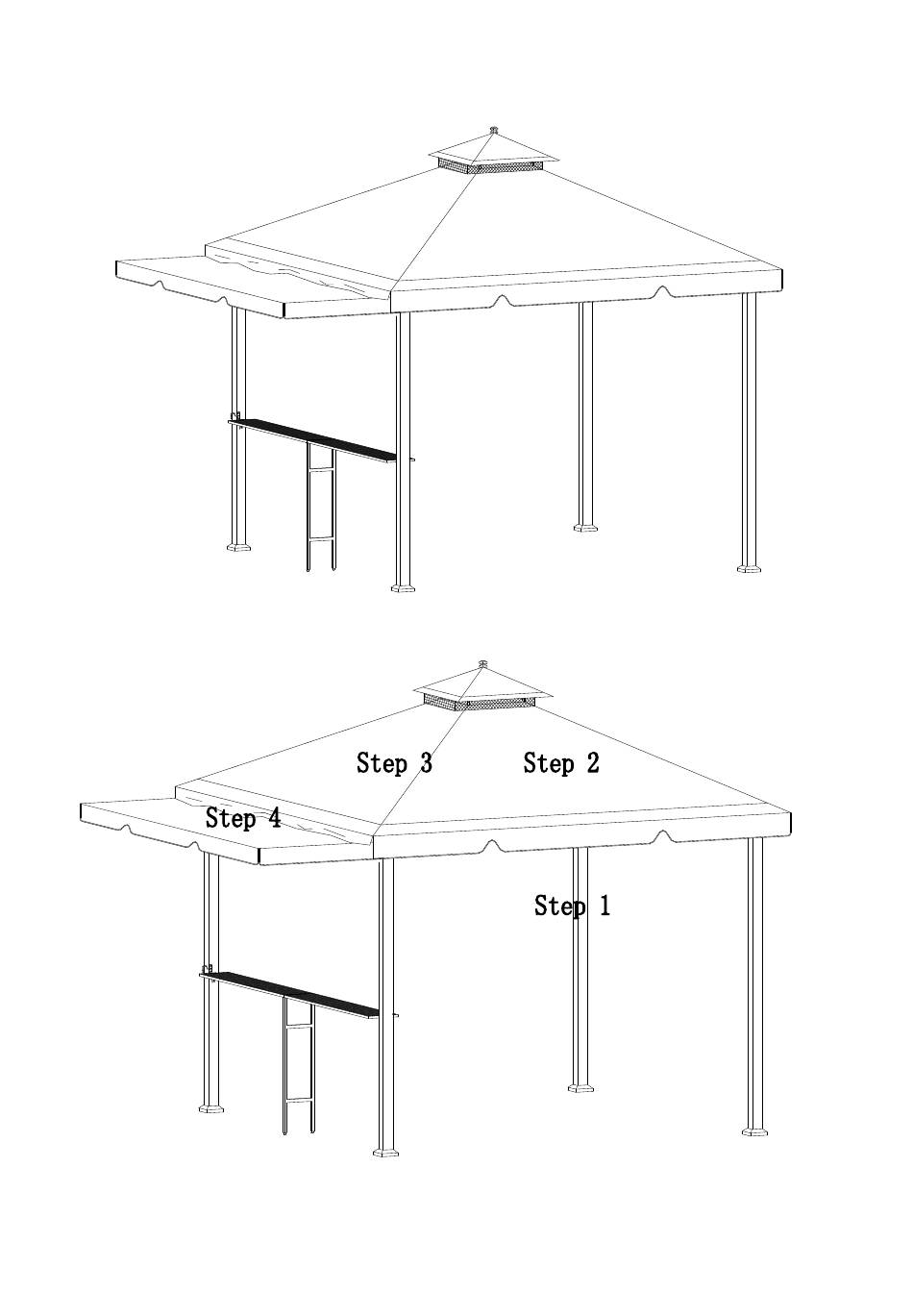

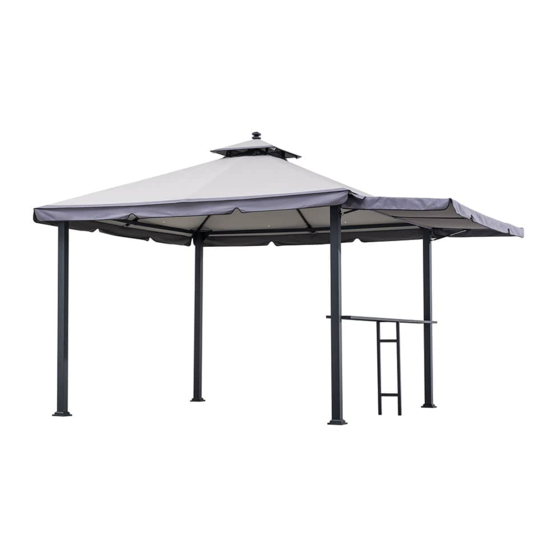

- Page 1 Assembly Instructions Model: L-GZ1023PST-A SKU: 2721826 10x10 Gazebo W/ Awning...
- Page 2 Congratulations on your purchase of our SUNJOY 10x10 Gazebo W/ Awning. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. IMPORTANT: 1. When installing and assembling your gazebo, it is recommended that two or more adults are involved.
- Page 3 Parts List Stake Cover Decorative part Stake plate Post 1 Post 2 Post 3 Short beam Long beam Beam support tube Middle beam connector Oblique beam Oblique beam down tube Middle beam Middle beam down tube Tabletop Tabletop support Small top connector Small top oblique beam Big top connector Hook...
- Page 4 Awning frame horizontal pipe 1 Awning frame horizontal pipe 2 Awning frame vertical pipe 1 Awning frame vertical pipe 2 Awning frame support pipe Awning frame locating piece Big canopy Small canopy Awning Hardware Pack 1 M6*15 Flat bolt 16PCS M6 Washer 58 PCS M6*15 Hex bolt...
- Page 5 Fig.1: Firstly attach the bottom of posts (D1,D2, D3) into stake cover(A) and raise them up. Then use bolt (AA) and washer (BB) to fasten the stake plate(C) on the bottom of posts. Fig.2: Attach the short beam (E1) with long beam (E2) tightly using bolt (CC) and washer (BB). Fig.3: Use bolt (AA) and washer (BB) to fasten the middle beam connector (F) on the assembled beams.
- Page 6 Fig.7: Insert the oblique beam (G1) into the down tube (G2). Fig.8: insert the oblique beam (G1) into the big top connector (M). Fig.9: Use bolt (EE), washer (BB) and nut (DD) to fasten the oblique beam down tube (G2) on the U plate of posts (D1, D2, D3).
- Page 7 Fig.16: Attach the assembled small top on the tube of oblique beam (G1) through small top oblique beam (L). Fig.17-1: Cover the big canopy (P) on the big top, then button up canopy on the oblique beam down tube (G2). Fig.17-2: Cover the four cloth buttons which in the middle of big canopy (P) on the middle beam down tube (H2).
- Page 8 Fig.18 Insert the awning frame part into the awning (R) as the pic. shows, and use velcro to fasten the vertical pipe ((O4,O5)) on the awning (R). The outside horizontal pipe (O2， O3) and support pipe(O6) also use velcro to fasten to awning (R),but the inside horizontal pipe (O2,O3) insert to awning (R). Fig.18-1: Insert the horizontal pipe 2 (O3) into the horizontal pipe 1(O2), then use bolt (CC) and washer (BB) to fasten it.
- Page 9 Your 10x10 gazebo is now ready for use. Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy Industries at 1(866) 578-6569 from 8:00 AM to 8:00 PM EST or Email menards@sunjoygroup.com...
