Jumper Settings
Before applying power to the NANO830/831, please make sure all of the
jumpers are in factory default position.
Jumper Description
LVDS Voltage Selection
JP1
Default: +3.3V level
JP2
COM1 RS-232/422/485 Mode Setting
JP3
Default: RS-232
JP4
COM2 Data/Power Selection
(NANO830 only)
Default: RS-232 Data
JP5
COM2 Data/Power Selection
(NANO831 only)
Default: RS-232 Data
COM1 Data/Power Selection
JP6
Default: RS-232 Data
LVDS Brightness Control Mode Setting
JP8
Default: PWM Mode
Restore BIOS Optimal Defaults
JP9
Default: Normal Operation
Auto Power On
JP10
Default: Disable

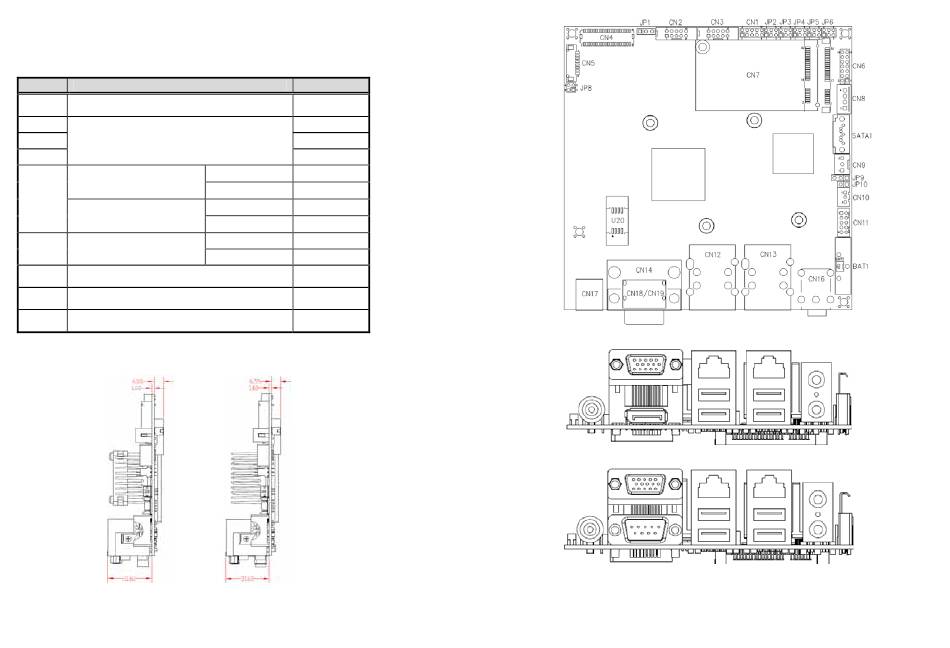

Board Layout
NANO830
Side View
2
Setting
1-2 Close
3-5, 4-6 Close
3-5, 4-6 Close
1-2 Close
CN2 Pin 1: DCD 3-5 Close
CN2 Pin 8: RI 4-6 Close
CN19 Pin 1: DCD 3-5 Close
CN19 Pin 9: RI 4-6 Close
CN3 Pin 1: DCD 3-5 Close
CN3 Pin 8: RI 4-6 Close
1-2 Close
1-2 Close
Close
NANO831
Side View
