Printed Matter No. 9839 0891 01
Publication Date 2018-08-29
Valid from Serial No. -
W2621 (5- 68 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8431035021
WARNING
W2621

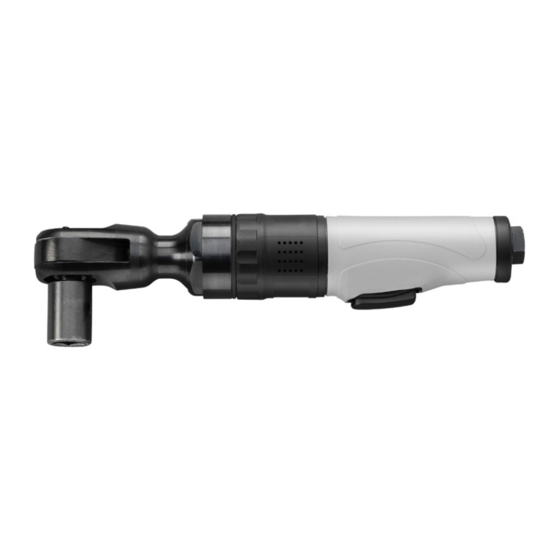

Ratchet wrench
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco W2621
Summary of Contents for Atlas Copco W2621
- Page 1 Printed Matter No. 9839 0891 01 Ratchet wrench Publication Date 2018-08-29 Valid from Serial No. - Product Instructions W2621 (5- 68 Nm) 8431035021 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Air lubrication guide ................ 5 Compressed air connection.............. 5 Operation ......................... 6 Ergonomic guidelines .................. 6 Service ........................ 7 Maintenance instructions .................. 7 Service recommendations .............. 7 Lubrication instructions .................. 7 Lubrication guide ................... 7 Recycling ......................... 8 Recycling instruction.................. 8 © Atlas Copco Industrial Technique AB - 9839 0891 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Website
Log in to Atlas Copco: www.atlascopco.com. You can find information concerning our products, accessories, spare parts and published matters on our website. Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco. For more information, consult the website: www.atlascopco.com/sds Warning WARNING Polymer hazard The vanes in this product contain PTFE (a synthetic fluoropolymer). -
Page 5: Installation
Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 6: Operation
Adapt the torque setting to the operator's strength and posture and use a torque arm or reaction bar if the torque is too high. ■ Use dust extraction system or mouth protection mask in dusty environments. © Atlas Copco Industrial Technique AB - 9839 0891 01... -
Page 7: Service
Mobil Mobilegrease XHP 222 NLG 2 Klüber Lub. Klübersynth UH 1 14-151 Texaco Multifak EP2 Molykote BR2 Plus * Not for angle gears. Brand Angle gears Molykote Longterm 2 Plus © Atlas Copco Industrial Technique AB - 9839 0891 01... -
Page 8: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9839 0891 01... - Page 12 Original instructions Atlas Copco Industrial © Copyright 2018, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
