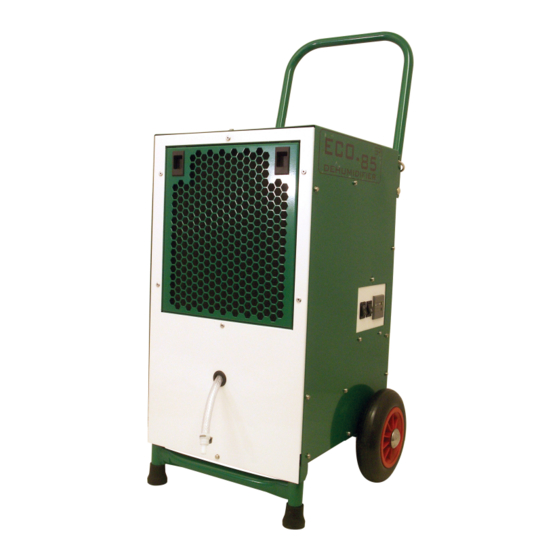

- Page 1 Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 ECO85 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12 Get In Touch Our Address Call: 0845 6880112 Puravent, Adremit Limited, Unit 5a, Commercial Yard, Settle, North Yorkshire, BD24 9RH...
- Page 2 Date : - 17/01/17 INTRODUCTION Designed for a wide range of applications, the ECO85 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The ECO85 has a number of special features: •...
-
Page 3: Specifications
Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 SPECIFICATIONS : ECO85 ODEL : 700mm EIGHT : 480mm IDTH : 390mm EPTH 50 kg EIGHT : 650 M IRFLOW : 30L / Day XTRACTION : 230V / 110V - 50Hz / 1 ph... -
Page 4: Operation
ONCE THE UNIT HAS BEEN SWITCHED OFF, WAIT AT LEAST FIVE MINUTES BEFORE RESTARTING. After using the ECO85, turn it off for 5 minutes to allow the condensate on the coils to drain into the pump reservoir, then turn it back on and press the momentary purge switch for twenty to thirty seconds to evacuate the water from the pump reservoir. -
Page 5: Routine Service
Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. - Page 6 Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 7: Troubleshooting
Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 1. Fan motor burnt out 2. - Page 8 Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 ECO85 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Defrost Timer 1619508 Terminal Block 3031460 Capillary Tube 3014254 2 x 24” Solenoid Valve 3020837 Filter Dryer 3020909 Compressor 3944932...
- Page 9 Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
- Page 10 Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 Page 10 of 12 Get In Touch Our Address Call: 0845 6880112 Puravent, Adremit Limited, Unit 5a, Commercial Yard, Settle, North Yorkshire, BD24 9RH Email: info@adremit.co.uk...
- Page 11 Drawing : - TPC390 Issue : - 5 Date : - 17/01/17 Page 11 of 12 Get In Touch Our Address Call: 0845 6880112 Puravent, Adremit Limited, Unit 5a, Commercial Yard, Settle, North Yorkshire, BD24 9RH Email: info@adremit.co.uk...
- Page 12 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 12 of 12 Get In Touch Our Address Call: 0845 6880112...
