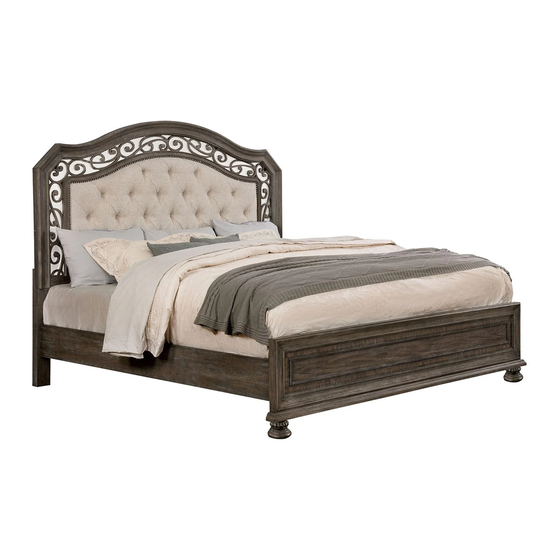

Furniture of America CM7661CK Assembly Instructions

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM7661CK

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

(Not Included)

Rev: 18-01-06

Need help?

Do you have a question about the CM7661CK and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM7661CK ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being Wrench easy and 5 being difficult).
Page 2 SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 8pcs Headboard Bolt Ø5/16" x 2-1/4" #2 x 2pcs #B x 10pcs H/Board Leg (R/ L) Bolt Ø5/16"...
Page 4 DO NOT FULLY TIGHTEN BOLTS UNTIL ALL BOLTS ARE IN. Align HB legs (#2) to the holes of the headboard (#1), then secure by using bolts (#A,B). Align HB leg rail (#3) to the holes of the HB legs (#2), then secure by using #A x 8pcs bolts (#B).
Page 5 Attach support legs (#7) to the holes of the slats (#6). Adjust leveler of the support legs (#7) according to ground level. Align slats (#6) to the side rails (#5), then secure by using screws (#I). #I x 8pcs Page 5 of 5...
