VERSION # 20-07-2 9
1 / 8
MODEL #
CM7682EK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7682EK
Summary of Contents for Furniture of America CM7682EK

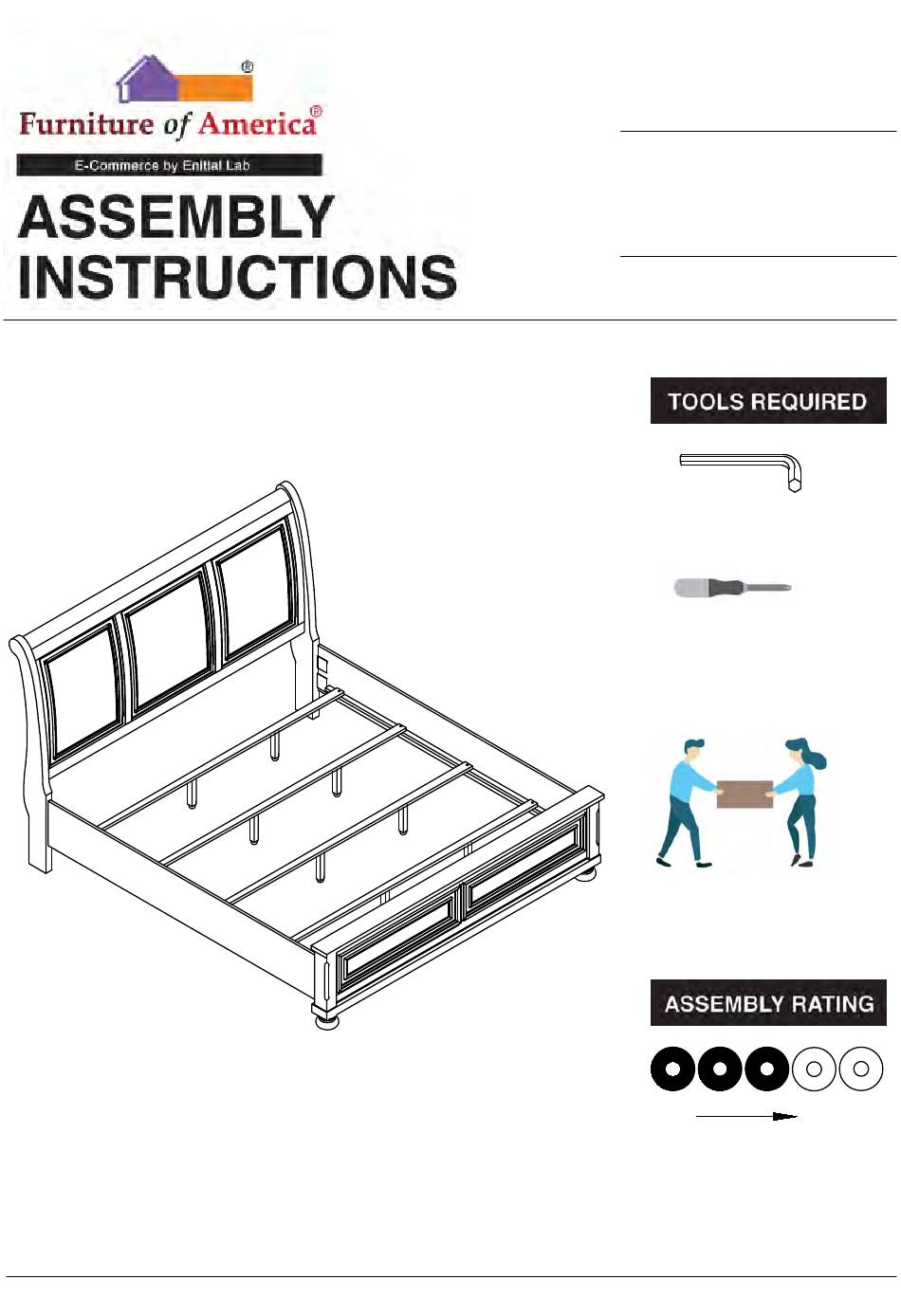

- Page 1 MODEL # CM7682EK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 CM7682EK #1 1pc #2 2pcs #3 1pc #4 2pcs Headboard Headboard Leg(L/R) Footboard Side Rail #5 4pcs #6 8pcs Slat Leg32x32x195mm #A 6pcs #B 6pcs #C 6pcs #D 1pc Allen Wrench M5 Bolt Ø5/16x1-3/4" Lock WasherØ5/16 Flat WasherØ5/16 #E 8pcs #F 2pcs Screw #8x1-3/16"...
- Page 6 3 cases CM7682EK Disignation Part Hardware Carton #A x 6pcs Head board #B x 6pcs CM7682EK-HB #Cx 6pcs #D x 1pc Headboard Leg #Fx 2pcs Footboard Slat CM7682EK-FB #Ex 8pcs CM7682EK-R Side Rail 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS 1) Attach wood dowels (#F) to the top hole of each headboard legs (#2R/L). Part #1 x1pc Part #2 x2pcs Hardware #A x6pcs Hardware #B x6pcs Hardware #C x6pcs Hardware #F x2pcs #B #C 2) Prepare 6 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A).
- Page 8 ASSEMBLY INSTRUCTIONS Attach support legs (#6) to the holes of the slats (#5). Part #5 x4pcs Part #6 x8pcs Adjust floor protectors according to ground level. Align slats (#5) to the side rails (#4). Secure with screws (#E). Hardware #E x8pcs 8 / 8...
