Summary of Contents for Logik L26DVDB10

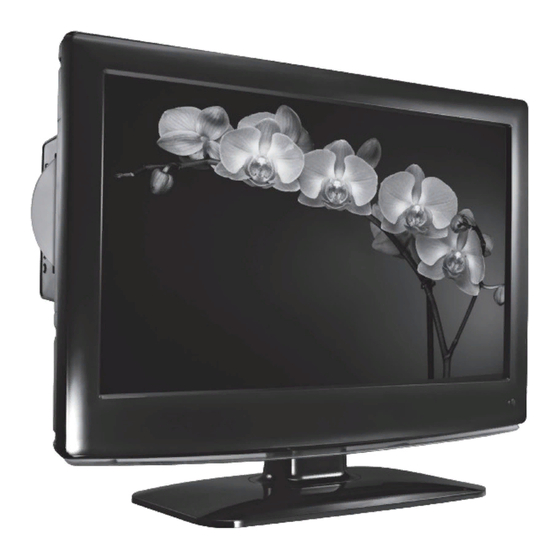

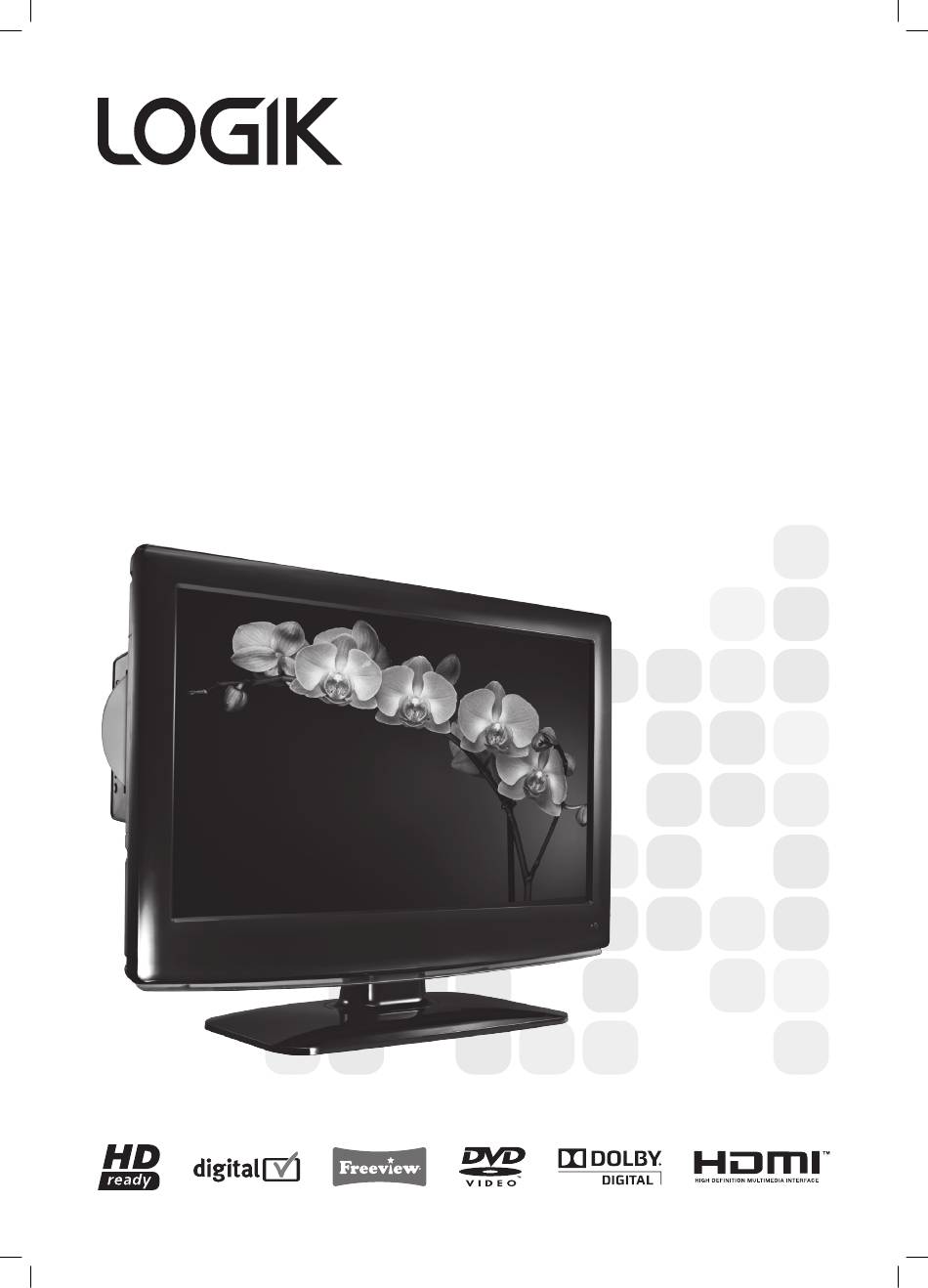

- Page 1 26” HD Ready Digital LCD TV with DVD Player Instruction Manual L26DVDB10 L26DVDB10_IB_final110210_running change3.indd 1 10/02/2011 3:36 PM...
-
Page 2: Table Of Contents
Contents Preparation ....................................4 Unpacking the TV ........................................4 Installing / Removing the Base Stand ................................5 Front View and Controls .......................................6 Rear View and Sockets ......................................7 Installing Batteries in the Remote Control ..............................8 Remote Control Operation Range ..................................8 Remote Control ........................................9 Connections .................................... - Page 3 Using the DVD Features .................................34 Using the Built-in DVD Player ..................................34 Compatible Disc Types ...................................... 34 − Supported Formats ....................................34 − Region Code ......................................34 Basic DVD Playback Functions ..................................35 − Playing the DVD ....................................... 35 − Menu Playback (for DVD) ..................................35 −...
-
Page 4: Preparation
Preparation Congratulations on the purchase of your new Logik 26" HD Ready Digital LCD TV with DVD Player. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. -
Page 5: Installing / Removing The Base Stand
Installing / Removing the Base Stand The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack. -
Page 6: Front View And Controls
Front View and Controls Item Description Illuminates green when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode. The LED will illuminate green when the timer programming has started in the standby mode. Receives IR signals from the remote control. -
Page 7: Rear View And Sockets
Rear View and Sockets HEADPHONE Video COMMON INTERFACE HDMI 1 AUDIO CARD FACE FRONT AC-INPUT SCART VGA INPUT VGA INPUT 100-240V~ 50/60Hz HDMI 2 SPDIF Item Description AC~INPUT Connects the mains cable to the mains socket. To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray HDMI1 / 2 disc player or AV receiver. -
Page 8: Installing Batteries In The Remote Control
Installing Batteries in the Remote Control 1. Press and lift the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment. -
Page 9: Remote Control
Remote Control STANDBY Switches the TV between on and standby mode. 2 MUTE STANDBY MUTE Mutes and restores your TV sound. 3 0-9 Number Button TV AUDIO Press to select a programme. RECALL/GOTO 4 TV AUDIO Switches between different audio languages (only applicable when the TV programme has this feature). - Page 10 20 EPG Displays the EPG (Electronic Programme Guide). (DTV mode) STANDBY MUTE Press to start playback or pause. (DVD mode) TV AUDIO 21 FAV Displays the Favourite Channel List. (TV / DTV mode) RECALL/GOTO Stop Press to stop playback. (DVD mode) 22 INFO Displays the present screen information such as the TV MENU...
- Page 11 27 REVEAL Reveals hidden information such as the answer to a quiz in Teletext. (TV mode) STANDBY MUTE HOLD Freezes a multi-page passage on screen in Teletext. (TV TV AUDIO mode) LIST RECALL/GOTO • The user can set four favourite pages to be directly linked to the four colour keys.
-
Page 12: Connections
Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete. -
Page 13: Connecting A Computer With A Vga Cable
Connecting a Computer with a VGA Cable 1. Use a VGA cable to connect the TV’s VGA input Rear View of TV socket to a computer’s VGA output socket. Use an COMMON INTERFACE HDMI 1 AUDIO CARD FACE FRONT AC-INPUT SCART VGA INPUT VGA INPUT... -
Page 14: Connecting An Av Device With A Scart Cable
Connecting an AV Device with a SCART Cable Rear View of TV 1. Use a SCART cable to connect the TV’s SCART input COMMON INTERFACE HDMI 1 AUDIO AC-INPUT CARD FACE FRONT SCART VGA INPUT VGA INPUT socket to an external AV device’s SCART output 100-240V~ 50/60Hz HDMI 2 SPDIF... -
Page 15: Connecting A Spdif Audio Receiver
Connecting a SPDIF Audio Receiver Rear View of TV For better sound quality, you may want to play the COMMON INTERFACE HDMI 1 AUDIO AC-INPUT CARD FACE FRONT SCART VGA INPUT VGA INPUT DVD audio through your multi-channel audio receiver. 100-240V~ 50/60Hz HDMI 2 SPDIF... -
Page 16: Connecting The Aerial
Connecting the Aerial Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket at the bottom of your TV. Do not connect the TV to the mains supply until you have completed all the connections. -
Page 17: Initial Setup
Initial Setup Turning the TV on for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. Switch on the POWER ON/OFF switch at the back of the TV. At STANDBY this stage, the TV switches to standby mode. -
Page 18: Selecting The Input Source
Selecting the Input Source 1. Press the SOURCE button to display the input source list. 2. Press the buttons to select the input source that you want: DTV / TV / Input Source Scart / AV / DVD / YPbPr / PC / HDMI1 / HDMI2. 3. -
Page 19: Using The Features
Using the Features Customising the Channel Setting (TV, DTV or Radio Mode) Auto Install Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house. 1. -
Page 20: Dtv Manual Install
DTV Manual Install Allows you to make manual fine tuning adjustments of the channel under DTV mode. 1. Press the TV MENU button and then press the buttons to select the CHANNEL menu. 2. Press the button to select DTV Manual tuning and then press the OK CHANNEL button or the button to confirm. -
Page 21: Channel Edit
3. The ATV Manual Install screen will pop up. Use the buttons to select the following options and the buttons to adjust the setting. ATV Manual Tuning Storage To Presets the channel number. Storage To System Selects the sound system: I / DK / L / BG (for SECAM). System Current CH Current CH... -
Page 22: Ci (Common Interface) Information
CI (Common Interface) Information The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider. -
Page 23: Customising The Picture Setting
Customising the Picture Setting Allows you to set your preferred picture mode. 1. Press the TV MENU button and then press the buttons to select the PICTURE menu. PICTURE PICTURE Colour Temperature Medium Picture Mode Dynamic Contrast Green Brightness Blue Colour Aspect Ratio 16:9... - Page 24 Aspect Ratio Allows you to watch the screen in various picture formats: 4:3 / Auto / 16:9 / Smart Zoom / Zoom / Subtitle. Input Signal 4:3 Input Signal 16:9 This selection will allow This selection will allow you to view a picture with you to adjust the picture an original 4:3 aspect horizontally, in linear...
-
Page 25: Customising The Sound Setting
Customising the Sound Setting Allows you to select an audio-enhancement technique. 1. Press the TV MENU button and then press the buttons to select the SOUND menu. SOUND Sound Mode Standard Treble Bass Balance Auto Volume Surround Sound Spdif 2. Press the button and then the buttons to select the following options. -
Page 26: Customising The Option Setting
2. Press the button and then the buttons to select the following options. Press the buttons to adjust each option’s setting. Clock The clock is set automatically when receiving a digital signal. Off Time Allows you to set the off time that the TV will switch off automatically. On Time Allows you to set the on time that the TV will switch on automatically and tune to the channel you select. -
Page 27: Audio Language (Dtv Mode)
Audio Language (DTV Mode) Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.) 1. Press the TV MENU button and then press the buttons to select the OPTION menu. 2. Press the button to select Audio Language and then press the OK button OPTION or the... -
Page 28: Subtitle Language (Dtv Mode)
Subtitle Language (DTV Mode) Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.) 1. Press the TV MENU button and then press the buttons to select the OPTION menu. -
Page 29: Customising The Lock Setting
Customising the LOCK Setting To access the LOCK menu, you must enter the password. Enter the default password “6666” for the first time use. To change the password, refer to “Change Password” (see below). Lock System Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes. -
Page 30: Block Channel
Block Channel Block Channel is designed to prevent children watching unsuitable programmes. The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered. 1. Press the TV MENU button and then use the buttons to select the LOCK menu. -
Page 31: Teletext (Tv Mode)
Teletext (TV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. -
Page 32: Digital Teletext (Dtv Mode)
Digital Teletext (DTV Mode) Some programmes are broadcast with digital teletext and special services, these can be identified in the Info screen when "MHEG" is displayed. Subtitles will vanish while the digital teletext is displayed. Teletext within Digital Service 1. In DTV mode, press the OK button to display the Channel List. Press the buttons and then press the OK button to select the teletext channel. -
Page 33: Epg (Electronic Programme Guide)
EPG (Electronic Programme Guide) EPG (Electronic Programme Guide) (DTV Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster). -
Page 34: Using The Dvd Features
Using the DVD Features Using the Built-in DVD Player 1. Press the SOURCE button and select DVD mode. 2. Insert a disc with the label side facing toward to you. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW). Allow 10 seconds for the player to load the disc. -
Page 35: Basic Dvd Playback Functions
Basic DVD Playback Functions Playing the DVD Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the button to toggle between Play and Pause mode. This product also supports Menu / Title / Sequential / Program Playback. Menu Playback (for DVD) For DVD discs, the screen will display the DVD Disc Menu (Root Menu). -
Page 36: Display (For Dvd)
Display (for DVD) Press the DISPLAY button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information. Press the DISPLAY button repeatedly to turn off the on screen display. For JPEG discs, press the DISPLAY button once to display the first page: Disc type, Track -/- (Current / Full). Press the DISPLAY button repeatedly to turn off the screen display. -
Page 37: Using The Dvd Language Setup Page
Using the DVD Language Setup Page In the DVD mode, press the DVD SETUP button on the remote control. Press the buttons to select the Language Setup buttons to select the menu options. Press the DVD Setup button to exit the menu. menu, and the In Setup mode, the disc playback function will not be available. -
Page 38: Using The Dvd Rating Setup Page
Using the DVD Rating Setup Page In the DVD mode, press the DVD SETUP button on the remote control. Press the buttons to select the Rating Setup menu, buttons to select the menu options. Press the DVD Setup button to exit the menu. and the In Setup mode, the disc playback function will not be available. -
Page 39: Playing Multimedia Discs
Playing Multimedia Discs MP3/WMA/JPEG PLAYBACK When you insert a MP3/WMA/JPEG disc while in DVD mode the menu on the right will appear. Press the buttons to choose the root directory and then press the OK button to enter into the sub directory. Press the buttons to choose the desired track and then press the OK button or the button to enjoy the music or movie. -
Page 40: Maintenance
Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the button on the side panel of the TV or on the remote control and disconnect the mains cable from the mains socket before any cleaning. -
Page 41: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. The TV does not operate properly. • Check that the TV is connected to the mains supply. TV cannot be switched on • Check that the mains switch is set to the ON position. - Page 42 There is a problem in PC mode. The signal is out of range (Invalid • Adjust the resolution, horizontal frequency, or vertical frequency. format) Vertical bar or stripe on background • Use Auto configure or adjust clock, phase, or H/V position. &...
-
Page 43: Display Modes
Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr Mode Resolution Vertical Frequency (Hz) -
Page 44: Specification
Specification Model L26DVDB10 Panel System 26 inch LCD Panel Display Resolution 1366 pixels (horizontal) x 768 pixels (vertical) Television System PAL I/BG/DK SEACAM L/BG/DK Brightness 400 cd/m Contrast Ratio 800:1 Inputs/Output SCART HDMI PC AUDIO YPbPr COMMON INTERFACE SPDIF Side AV... -
Page 45: Safety Warnings
Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit. - Page 46 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level.
- Page 47 L26DVDB10_IB_final110210_running change3.indd 47 10/02/2011 3:37 PM...
- Page 48 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number TV Base 102C2611111 Remote Control 504C2612102 AAA Batteries x 2 32200007158 Instruction Manual 4031C261207-V2 Quick Start Guide 4033C261205-V2 Digital TV Switchcover Addendum 4031C261210 Visit Partmaster.co.uk today for the easiest way to...
