Logik L32DIGB20 Instruction Manual
  1. Manuals
  2. Brands
  3. Logik Manuals
  4. LCD TV
  5. L32DIGB20
  6. Instruction manual

Logik L32DIGB20 Instruction Manual

32” hd ready digital lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

32" HD Ready
Digital LCD TV
Instruction Manual
L32DIGB20
L32DIGB20_IB_final110325_running change_PN not updated.indd 1
25/03/2011 7:11 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L32DIGB20 and is the answer not in the manual?

Questions and answers

Related Manuals for Logik L32DIGB20

Summary of Contents for Logik L32DIGB20

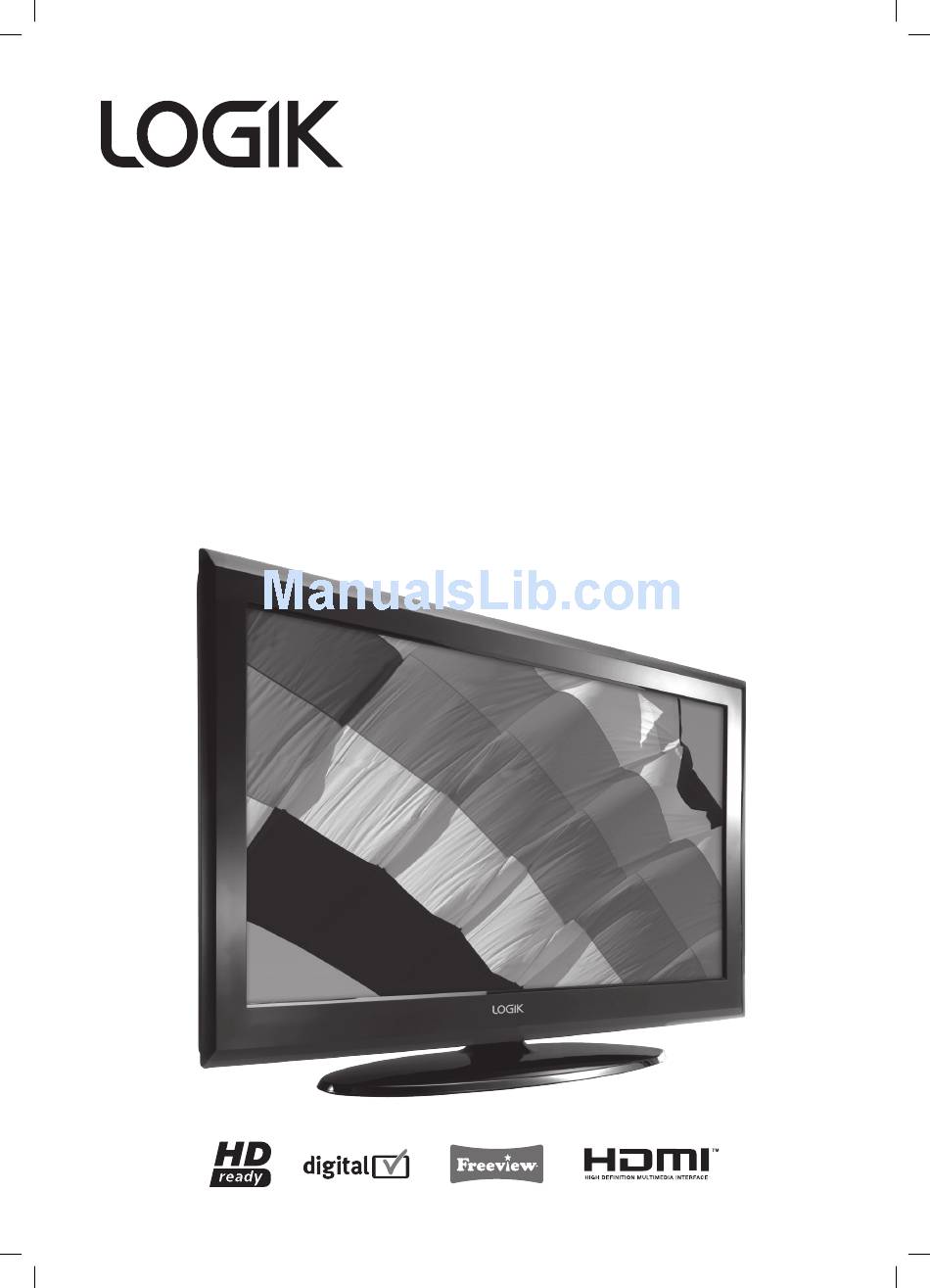

  • Page 1 32” HD Ready Digital LCD TV Instruction Manual L32DIGB20 L32DIGB20_IB_final110325_running change_PN not updated.indd 1 25/03/2011 7:11 PM...
  • Page 2 L32DIGB20_IB_final110325_running change_PN not updated.indd 2 25/03/2011 7:11 PM...

  • Page 3: Table Of Contents

    Contents Preparation ....................................5 Unpacking the TV ........................................5 Installing / Removing the Base Stand ................................6 Front / Side View and Controls ..................................7 Rear View and Sockets ......................................8 Installing Batteries in the Remote Control ..............................9 Remote Control Operation Range ..................................9 Remote Control ........................................10 Connections ....................................
  • Page 4 Customising the Setup Setting ..................................32 − Video Size (Aspect Ratio) ..................................32 − EPG (Electronic Programme Guide) ..............................33 − OSD Language ......................................34 − Screen Mode......................................34 − OSD Timeout mode ....................................34 − OSD Transparency mode ..................................35 −...

  • Page 5: Preparation

    Thank you for purchasing your new Logik 32” HD Ready Digital LCD TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features.

  • Page 6: Installing / Removing The Base Stand

    Installing / Removing the Base Stand Remove the base stand before mounting the TV onto the wall. The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

  • Page 7: Front / Side View And Controls

    Front / Side View and Controls Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as its function may be affected. Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode.

  • Page 8: Rear View And Sockets

    Rear View and Sockets S-VIDEO SCART2 SCART1 PC AUDIO COAXIAL HDMI2 HDMI1 S-VIDEO SCART2 SCART1 CARD FACE FRONT HDMI3 PC AUDIO COAXIAL HDMI2 HDMI1 Item Description Mains cable POWER ON/OFF Power switch RF (75 Ω) Connect to the aerial socket on the wall with the RF coaxial cable. S-VIDEO Connect to a VCR, DVD Player, or other AV devices with S-Video output sockets.

  • Page 9: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control 1. Press and lift the back cover up to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and (–) ends of the batteries with the (+) and (–) ends indicated in the battery compartment.

  • Page 10: Remote Control

    Remote Control Switch the TV between on and standby mode. 2. Transmission Indicator Illuminates red when you press a button. P.MODE S.MODE SLEEP 3. P.MODE Selects picture mode: Standard / User / Cinema / Sport / Vivid / Hi-Bright. 4. S.MODE Selects sound mode: Normal / Speech / Music.
  • Page 11 Press to start playback or pause. (MEDIA mode) Display the EPG. (Electronic Programme Guide) P.MODE S.MODE SLEEP Press to stop playback. (MEDIA mode) Display the Favourite Channel List. 21. MEDIA Enter the MEDIA mode. 22. ADD Add Favourite Channel. Delete Favourite Channel. Press to skip to the beginning of the previous chapter or track.

  • Page 12: Connections

    Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

  • Page 13: Connecting A Computer With A Vga Cable

    Connecting a Computer with a VGA Cable 1. Use a VGA cable to connect the TV’s VGA input Rear View of TV socket to a computer’s VGA output socket. Use an audio cable to connect the TV’s PC AUDIO input S-VIDEO socket to the computer’s audio output socket.

  • Page 14: Connecting An Av Device With A Scart Cable

    Connecting an AV Device with a SCART Cable • This TV has a total of 2 SCART input sockets, please make sure the correct input source is selected corresponding to your connected SCART input socket. 1. Use a SCART cable to connect the TV’s SCART input socket to an external AV device’s SCART output socket. 2.

  • Page 15: Connecting An Av Device With A Composite Cable

    Connecting an AV Device with a Composite Cable 1. Use the supplied AV cable to connect the TV’s AUDIO(L/R)/VIDEO input sockets to an external AV device’s composite audio/ video sockets. (Video = yellow, Audio Left = white, and Audio Right = red) 2.

  • Page 16: Connecting A Usb Storage Device

    Connecting a USB Storage Device 1. Switch off the TV before connecting any USB storage device. 2. Connect your USB storage device to the USB port of your TV. 3. Plug the connected devices into the mains socket before switching on the POWER ON/OFF switch at the right bottom of the 4.

  • Page 17: Initial Setup

    Turning the TV On for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. Switch on the POWER ON/OFF at the right side of the TV. At this S-VIDEO SCART2 SCART1 stage, the TV switches to standby mode.

  • Page 18: Selecting The Input Source

    Selecting the Input Source 1. Press the SOURCE button to display the input source list. 2. Press the buttons to select the input source that you want: TV / AV / S-VIDEO / SCART1 /SCART2 / YPBPR / VGA / HDMI1 / HDMI2 / HDMI3 / MEDIA.

  • Page 19: Using The Features

    Customising the Video Setting Video Mode Allows you to set your preferred video mode. 1. Press the MENU button and then use the buttons to select the Video menu and then press the button. 2. Press the buttons to highlight an individual Video option. Colour 3.

  • Page 20: Customising The Audio Setting

    Customising the Audio Setting Audio Mode Allows you to select an audio-enhancement technique. 1. Press the MENU button and then use the buttons to select the Audio menu and then press the button. 2. Press the buttons to highlight an individual Audio option. Equalizer Normal 3.

  • Page 21: Customising The Tv Setting

    Customising the TV Setting Country Allows you to select the country where you are using the TV. 1. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2. Press the buttons to select Country.

  • Page 22: Channels

    Channels Allows you to set Channel Scan / Update Scan / Manual Scan / Channel Skip / Channel Sort / Channel Edit / Channel Decode / Analogue Channel Fine Tune. Before tunning make sure the input source is set to TV. Channel Scan 1.

  • Page 23: Update Scan

    Update Scan 1. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2. Press the buttons to select Channels and then press the button. 3. Press the buttons to select Update Scan and then press the button.
  • Page 24 3. Press the buttons to select Manual Scan and then press the button. Analogue Channel Fine Tune 4. Press the buttons to select Digital Channel Range Scan / Analogue Manual Scan / Single RF Scan and then press the button. 5.

  • Page 25: Channel Skip

    Channel Skip 1. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2. Press the buttons to select Channels and then press the button. 3. Press the buttons to select Channel Skip and then press the button.
  • Page 26 2. Press the buttons to select Channels and then press the button. 3. Press the buttons to select Channel Sort and then press the button. Analogue Channel Fine Tune 4. Press the buttons to select Channel and then press the OK button. Check mark will appear on the right of the channel name.

  • Page 27: Channel Edit

    Channel Edit 1. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2. Press the buttons to select Channels and then press the button. 3. Press the buttons to select Channel Edit and then press the button.

  • Page 28: Channel Decode

    Channel Decode 1. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2. Press the buttons to select Channels and then press the button. 3. Press the buttons to select Channel Decode and then press the button.

  • Page 29: Analogue Channel Fine Tune

    Analogue Channel Fine Tune 1. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2. Press the buttons to select Channels and then press the button. 3. Press the buttons to select Analogue Channel Fine Tune and then press the button.

  • Page 30: Ci (Common Interface) (Tv Mode With Dtv Signal)

    CI (Common Interface) (TV Mode with DTV signal) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by Top Up TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

  • Page 31: Over Air Download Function

    4. Press the MENU button return back to the previous menu. Top Up TV Main menu 5. Press the EXIT button to exit the menu. Module information Smart card information Language Software Download Press Ok to select, or Exit to quit Over Air Download function The TV auto detects the latest firmware through the DTV signal and allows you to accept or refuse the firmware upgrade service.

  • Page 32: Customising The Setup Setting

    Customising the Setup Setting Video Size (Aspect Ratio) Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Smart zoom / Subtitle. Press the ASPECT button repeatedly to select the desired format. Input Signal 4:3 Input Signal 16:9 Auto...

  • Page 33: Select A Programme

    EPG (Electronic Programme Guide) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

  • Page 34: Osd Language

    OSD Language Allows you to select your preferred Teletext language. 1. Press the MENU button and then use the buttons to select the Setup menu and then press the button. Auto 2. Press the buttons to select OSD Language. 3. Press the buttons to change the settings.

  • Page 35: Osd Transparency Mode

    3. Press the buttons to change the settings: 10/20/30 sec. Auto Auto 4. Press the MENU button to save the setting and return back to the previous menu. 5. Press the EXIT button to exit the menu. Auto Standby OSD Transparency mode Allows you to select transparency of the on-screen menu.

  • Page 36: Subtitle

    Time 1. Press the MENU button and then use the buttons to select the Setup menu and then press the button. Auto 2. Press the buttons to select Time Setup and then press the button. 3. Press the buttons to select Time and then press the button.

  • Page 37: Teletext

    4. Press the MENU button to save the settings and return back to the previous menu. 5. Press the EXIT button to exit the menu. Teletext Allows you to select Digital Teletext Language / Decoding Page Language / TTX Presentation Level. 1.

  • Page 38: Auto Standby

    Auto Standby Allows you to set the TV to automatically enter standby mode if no button has been pressed. 1. Press the MENU button and then use the buttons to select the Setup menu and then press the button. Auto 2.

  • Page 39: Customising The Parental

    Customising the Parental Parental Mode Allows you to set Hotel Block / Channel Block / Program Block / Input Block / Change Password / Clean All function. 1. Press the MENU button and then use the buttons to select the Parental Password menu and then press the button.

  • Page 40: Programme Block

    Programme Block 1. Press the buttons to select the Programme Block and then press the Password button. 2. Press the buttons to select Age Rating: None / 4 / 5../18 age. Age Rating Open or close the TV time synchronization the stream time function.

  • Page 41: Change Password

    Change Password 1. Press the buttons to select the Change Password and then press the Password button. 2. Use the 0–9 buttons to input a 4-digit password as New Password. 3. Finish the New Password use the 0–9 buttons to input a 4-digit password as Confirm Password.

  • Page 42: Using The Features Via Usb Port

    USB Multimedia Operation • All multimedia operations are available only when an USB storage device is connected. The USB storage device is not included in this TV packing, please purchase it separately. Rear View of TV CARD FACE FRONT HDMI3 S-VIDEO SCART2 SCART1...

  • Page 43: Music Mode

    Music Mode 1. Press the buttons to select the Music mode, press the OK button to enter. 2. Press the buttons to select the music to play. 3. Press the OK button to play the music. 4. Press the button once to pause. • Press the button again to resume playback.

  • Page 44: Maintenance

    Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the POWER ON/OFF switch and disconnect the mains cable from the mains socket before you start any cleaning. 1. Use a soft dry cloth to wipe away the dust from the screen and surfaces. 2.
  • Page 45 The audio function does not work. • Press the VOL + / – buttons. Picture OK but no sound • Sound muted? Press the button. • Try another channel. The problem may be caused by the broadcaster. No output from one of the speakers • Adjust the Balance settings in the Audio menu.

  • Page 46: Display Modes

    Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr Mode Resolution Vertical Frequency (Hz)

  • Page 47: Specification

    Specification Model L32DIGB20 Panel System 31.5 inch LCD panel Display Resolution 1366 pixels (horizontal) x 768 pixels (vertical) Television System PAL I/BG/DK, SECAM L/BG/DK Brightness 330-400 cd/m Contrast Ratio 4000:1 Inputs/Output SCART HDMI PC AUDIO S-VIDEO YPbPr VIDEO IN (RCA)

  • Page 48: Safety Warnings

    Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit.
  • Page 49 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level.
  • Page 50 L32DIGB20_IB_final110325_running change_PN not updated.indd 50 25/03/2011 7:12 PM...
  • Page 51 L32DIGB20_IB_final110325_running change_PN not updated.indd 51 25/03/2011 7:12 PM...
  • Page 52 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number TV Stand Support I.01.596329121 Base Stand I.01.596329120 I.01.596329151 Nut Stand I.01.596329141 Screw Bolt x 1 I.02.596329161 Gasket x 1 I.02.596329171 Wrench x 1 I.02.529329151...
