DynaProx and DynaProx BCR Stand | Device Inspection
Accessing the Reader
Remove from Counter
In order to access the reader from
the device stand you may need
to unscrew it from the counter.
Unscrew the two screws attaching the
baseplate of the stand to the counter.
Remove Base Plate from Stand
Unscrew the two set screws from the
base plate.
Remove USB-C Cable
Unplug the USB-C cable from the
back of the device, release the cable
from pinch fit opening, and remove
from the integral cable hooks.
Remove 4 Set Screws
Unscrew the 4 screws that attach the
stand to the reader.
Underside of Device
D
Form Factor:
of DynaProx and
DynaProx BCR are the same smooth
form factor with 4 threaded screw
holes, a USB-C receptacle, RS-232
receptacle, and product label.
Product Label:
located on the
underside of the device. The Serial
Number, Rev, Date, Part number
(PN), and Hardware PN (HW) are
listed. Compare hardware ID to PCI
website for validation.
C
USB-C Connection:
Connected
directly to the correct host USB port.
Imprints:
in the plastic form factor
of certification logos and patent
information are listed.
RS-232 Connection:
Connected
directly to the correct host port.
B
Device Inspection
Access Inspection - Views from Stand Bottom
8
7
MagTek Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
®
EMV® is a registered trademark in the U.S. and other countries and an unregistered trademark elsewhere. The EMV trademark is owned by EMVCo, LLC. The Contactless Indicator mark, consisting of four graduating arcs, is a trademark owned by and used with permission of EMVCo, LLC.

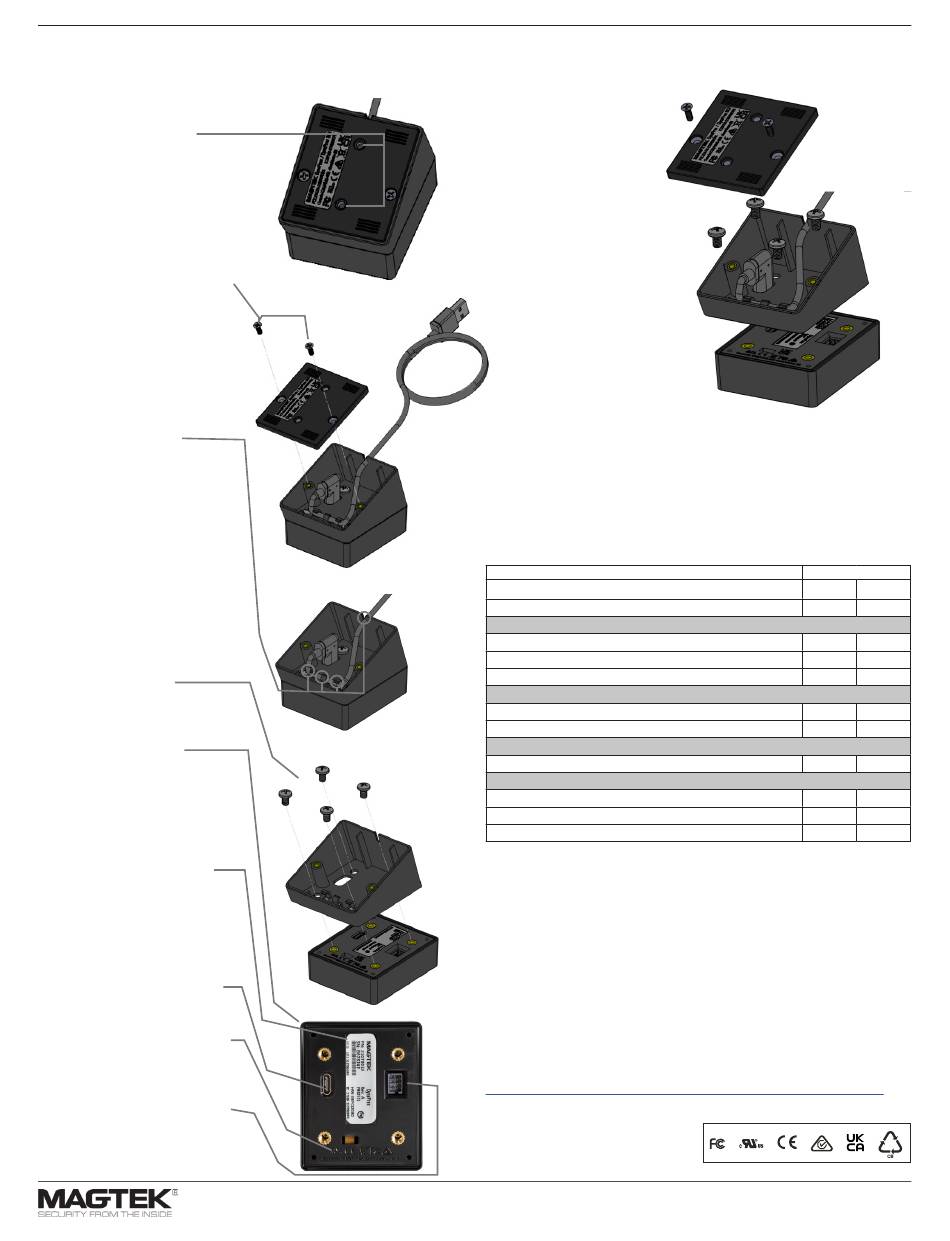

Full Assembly
