Summary of Contents for GeoVision GV-BX2802

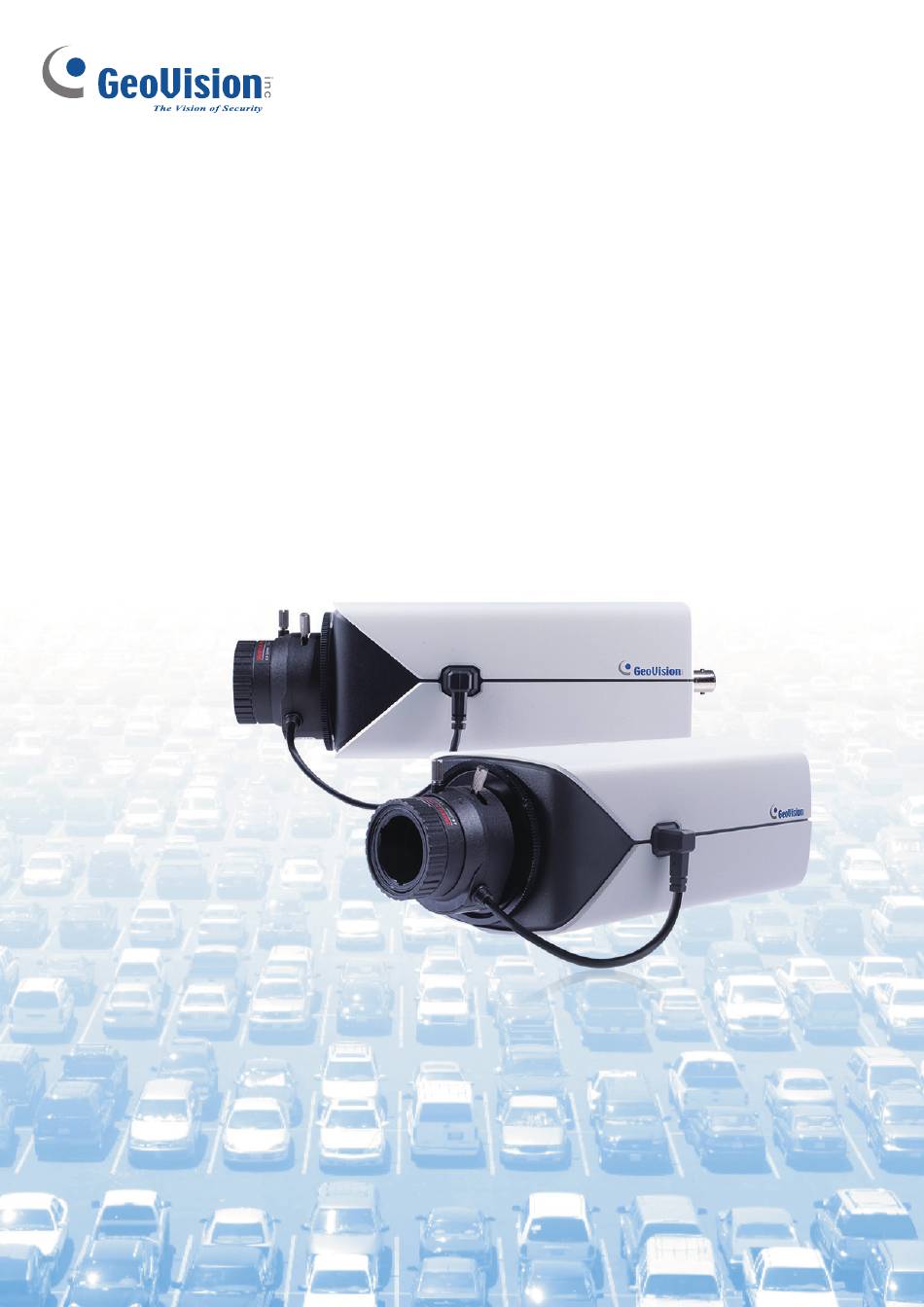

- Page 1 Quick Start Guide GV-BX2802, BX4802 Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. TVTBX-QG-A...
- Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
- Page 3 Warning and Caution ⚫ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not be responsible for any problems caused by unauthorized repair or maintenance.) ⚫...
-
Page 4: Table Of Contents
Contents 1. Overview ......................1 2. Installation ......................3 3. Accessing the Network Camera ................ 4 3.1 Looking Up the Dynamic IP Address ............. 4 3.2 Configuring the IP Address ................6 4. The Web Interface ....................7 5. Upgrading System Firmware ................8 6. -
Page 5: Overview
1. Overview Power port (DC 12V / AC 24V) Ethernet connector (PoE) Power indicator Micro SD card slot RS-485; connectors for PTZ Audio input Alarm output Audio output Alarm input Default button Ground Video output Note: The camera can be powered by DC 12V / PoE power supply. If the PoE switch is used to power the camera, DC 12V power supply is not required. -
Page 7: Installation
2. Installation Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. Install the camera under dry environment. Here we take Insert a micro SD card into the card slot. Remove the protection cover of the lens interface and install the lens (not supplied) to the camera. -
Page 8: Accessing The Network Camera
3. Accessing the Network Camera Looking Up the Dynamic IP Address By default, when the camera is connected to a LAN with the DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. - Page 9 5. Type a new password and click OK. 6. Click on its IP address again and select Webpage to open its Web interface. 7. Type the set password on the login page and click Login. IMPORTANT: 1. The camera has two sets of passwords: one is for Web interface and the other is for the third-party platform connection via ONVIF, e.g.
-
Page 10: Configuring The Ip Address
Configuring the IP Address If the camera is connected to a LAN without the DHCP server, the default IP address will be 192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other GV-IP devices on the same LAN. 1. -
Page 11: The Web Interface
4. The Web Interface Once you log in the Web interface, you will see the live view as shown below. Icon Description Icon Description Original size Sensor alarm indicator Fit correct scale Motion alarm indicator Adapt Color abnormal indicator Full screen Abnormal clarity indicator Start/stop live view Scene change indicator... -
Page 12: Upgrading System Firmware
5. Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. To load the new firmware into the camera, follow the instructions below. 1. On the Web interface, click Config > Maintenance > Upgrade. 2. Click the Browse button to locate the firmware file saved at your local computer. -
Page 13: Restoring To Factory Default
6. Restoring to Factory Default If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Load Default Button. On the Camera 1. Find the Load Default button on the camera (see No. 11, 1. Overview in the Quick Start Guide).
