Schiller Grounds Care BUNTON 642241F Operator's Manual

Missile 33hp gen w/61” side discharge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BUNTON MISSILE 33HP GEN W/61" SIDE DISCHARGE
BUNTON MISSILE 33HP GEN W/72" SIDE DISCHARGE
BUNTON MISSILE 26HP KAW LC W/61" SIDE DISCHARGE
PARTS MANUAL 4163875
642241F
642242F
642245F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUNTON 642241F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schiller Grounds Care BUNTON 642241F

Summary of Contents for Schiller Grounds Care BUNTON 642241F

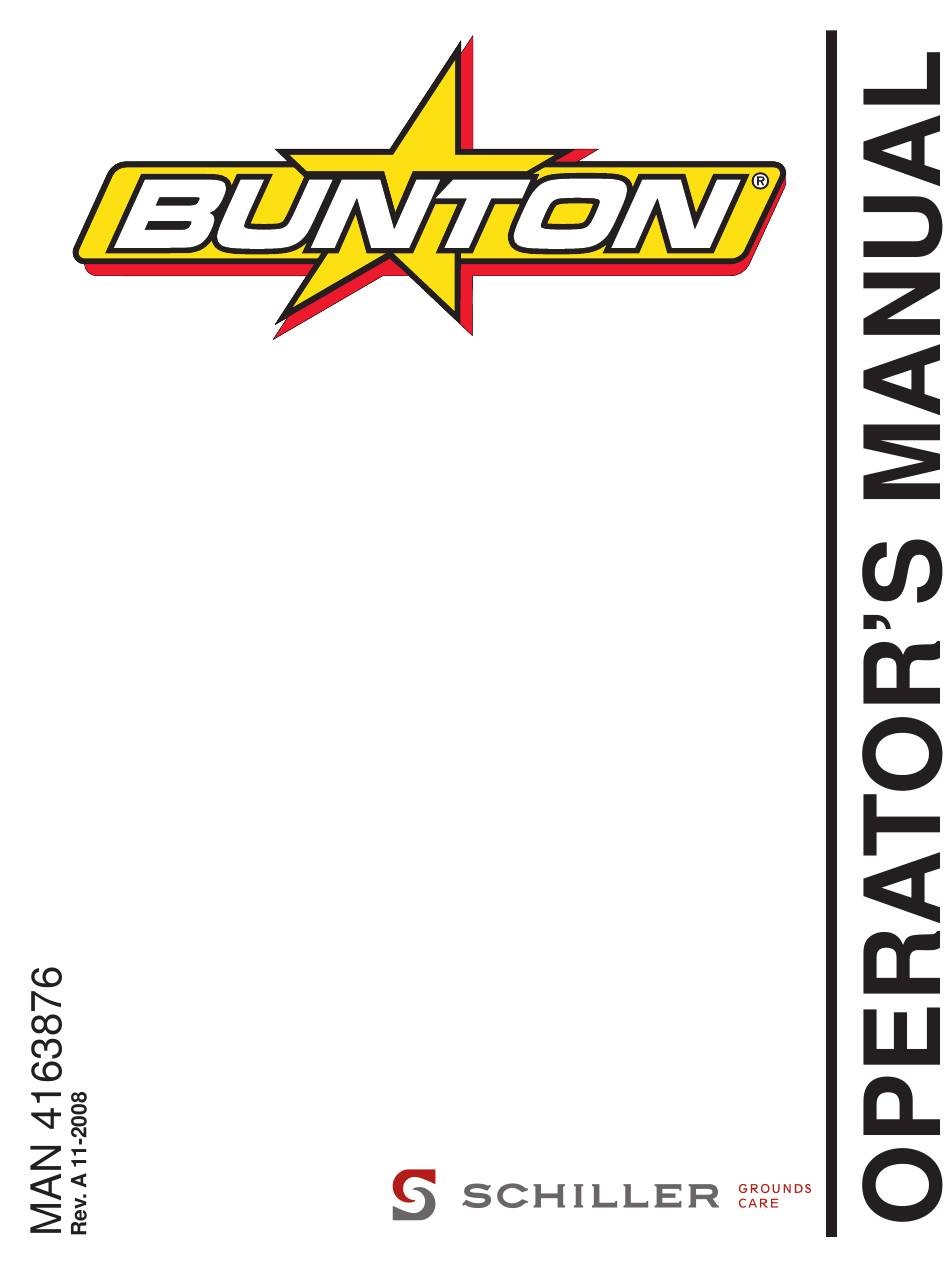

  • Page 1 642241F BUNTON MISSILE 33HP GEN W/61” SIDE DISCHARGE 642242F BUNTON MISSILE 33HP GEN W/72” SIDE DISCHARGE 642245F BUNTON MISSILE 26HP KAW LC W/61” SIDE DISCHARGE PARTS MANUAL 4163875...
  • Page 2 CALIFORNIA WARNING Proposition 65 Warning The engine exhaust from this product Diesel engine exhaust and some of contains chemicals known to the State its constituents are known to the State of California to cause cancer, birth of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly.

  • Page 4: Safety

    These words appear in this Grounds Care, Inc. Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and modified or changed in any manner not specifically the safety of others, read and follow the information authorized after original manufacture–including the...
  • Page 5 SAFETY BUNTON MISSILE PREPARING FOR SAFE OPERATION WARNING Operator preparation and training Read the Operation & Safety Manual – If an operator or mechanic cannot read English, it is the owner's responsibility to explain this material to them. If any portion of this material is unclear, contact your dealer representative for clarification.
  • Page 6 SAFETY BUNTON MISSILE MACHINE OPERATION OPERATING SAFELY – Check operator present interlock system and In general brake operation. Adjust or repair any problems – Use extra care when loading or unloading the before using. machine onto a trailer or truck. –...
  • Page 7 SAFETY BUNTON MISSILE Interrupting operation MANEUVERING SAFELY – Before leaving the operator's position: In general - Park on level ground; – Slow down before turning. - Disengage the PTO; – Do not mow in reverse unless absolutely - Set the parking brake; necessary.
  • Page 8 SAFETY BUNTON MISSILE WARNING for wheel weights or counterweights to improve MOWING SLPES stability. Slopes are a major factor in loss-of-control and tipover Rollover Protection Structure (ROPS) accidents that sometimes lead to severe injury or death. All • Fixed and folding Rollover Protection Structures slopes require extra caution.
  • Page 9 SAFETY BUNTON MISSILE WARNING MAINTENANCE SAFETY FUEL IN GENERAL – Gasoline and diesel fuels are flammable; gasoline vapors are – Maintain machine according to manufacturer's explosive. Use extra care when schedule and instructions for maximum safety handling. and best mowing results. –...
  • Page 10 SAFETY BUNTON MISSILE BATTERY JUMP STARTING WARNING Battery acid is caustic and fumes 1. Be sure the jumper cables are in good condition. are explosive and can cause seri- Turn off the ignition and all electrical accessories ous injury or death. on both machines.
  • Page 11 LABELS BUNTON MISSILE...
  • Page 12 LABELS BUNTON MISSILE 4158442...

  • Page 13: Labels

    LABELS BUNTON MISSILE...
  • Page 14 LABELS BUNTON MISSILE...
  • Page 15 LABELS BUNTON MISSILE...
  • Page 16 LABELS BUNTON MISSILE...
  • Page 17 LABELS BUNTON MISSILE...

  • Page 18: Controls

    CONTROLS BUNTON MISSILE out engages (turns on) the PTO and starts the blades or other attachment. Pushing the PTO switch in disengages (turns off) the PTO and stops the blades or other attachment. NOTE: The PTO switch does not control attachments powered by a separate engine.
  • Page 19 CONTROLS BUNTON MISSILE Reverse movement - To move the machine straight back, pull both traction levers back equally from their neutral position. Reverse speed increases as the levers are moved back farther. Maximum reverse speed is reached when the levers hit the rear of the forward-reverse slot.
  • Page 20 CONTROLS BUNTON MISSILE FOOT LIFT PEDAL The foot lift pedal A, allows the operator to raise the mower deck to the highest position without removing his/her hands from the traction controls. To use the foot lift pedal A, press on it to raise the deck.
  • Page 21 CONTROLS BUNTON MISSILE PARKING BRAKE (R) - Pull the parking brake lever up and back to put the parking brake ON. Push it forward and down to put the parking brake OFF. The parking brake must be ON to start the engine. It must also be ON to keep the engine running if the operator leaves the seat.

  • Page 22: Pre-Operation Check List

    PRE-OPERATION CHECK LIST BUNTON MISSILE PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY) ___ Review and follow all safety rules and safety ___ Never allow riders. decal instructions. ___ Inspect area and remove stones, branches or ___ Check that all safety decals are installed and in other hard objects that might be thrown, good condition.

  • Page 23: Operation

    OPERATION BUNTON MISSILE FUELING OPERATOR PRESENCE INTERLOCK SYSTEM – Fill fuel tanks with good quality, clean, unleaded gasoline. Do not use hi-test fuel. To start the engine: – Use a funnel to avoid spillage. – The PTO switch must be OFF. –...
  • Page 24 OPERATION BUNTON MISSILE OPERATING NOTES DRIVING 1. With the PTO disengaged, move the parking – Practice at slow engine and travel speeds with the brake to OFF. PTO off until fully familiar with the controls. 2. Move both traction levers out of neutral lock. –...
  • Page 25 OPERATION BUNTON MISSILE CUTTING 1. Place the discharge chute in the down position or correctly fit a grass collector or mulcher plate. DANGER 2. Sit in the seat. 3. Start the engine. 4. Turn the blades on by pulling up on the PTO ROTATING BLADES switch.

  • Page 26: Maintenance Chart

    MAINTENANCE CHART BUNTON MISSILE t l i t l i...

  • Page 27: Maintenance Record

    MAINTENANCE RECORD BUNTON MISSILE NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ & & r i f , l i t l i...

  • Page 28: Maintenance

    (A 1/2 second delay is built into the system to prevent engine cutout when traversing rough terrain.) Repair machine before using if the Operator Presence Interlock System does not operate correctly in start or run. Contact your authorized Schiller Grounds Care, Inc. dealer. Hardware Tighten any nuts and bolts found loose.
  • Page 29 MAINTENANCE BUNTON MISSILE LUBRICATION Every 50 hours of operation, lubricate the following points (1-4) with grease: 1. Deck lift rockshaft (1 point) 2. Deck lift pivots (6 points) 3. Brake lever pivot (1 point) 4. Push arms (2 points located at rear of cutterdeck under each fuel tank) 5.
  • Page 30 MAINTENANCE BUNTON MISSILE HYDRAULIC SYSTEM Fluid level in the hydraulic system should be checked after the first 5 hours of operation, and every 100 hours thereafter, or when a leak has occurred. If the fluid is low, check all components for leaks. To check, remove reservoir cap M.
  • Page 31 MAINTENANCE BUNTON MISSILE ENGINE OIL Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged. AFTER FIRST FIVE (5) HOURS While the engine is warm: 1. Remove drain cap D and drain the crankcase. Dispose of used oil in accordance with local requirements.
  • Page 32 MAINTENANCE BUNTON MISSILE HEAVY DUTY CYCLONIC AIR CLEANER Clean and replace the air cleaner element as specified in the service chart. Uneven running, lack of power or black exhaust fumes may indicate a dirty air cleaner. To replace air cleaner elements: 1.
  • Page 33 MAINTENANCE BUNTON MISSILE CLEANING MACHINE Clean the machine after use. The machine will run cooler and last longer if kept free of clippings and other debris. A clean machine also reduces the risk of fire due to accumulation of combustible debris and chaff Brush or blow clippings and debris off the cutterdeck and engine deck.
  • Page 34 – Maintain cut angle at 30 – Do not overheat blades when sharpening. – Always use Schiller Grounds Care, Inc. blades. Use of another manufacturer’s blades may be dangerous. SPECIFIC TORQUES BLADE BOLT TORQUE: 70 FT-LBS (95 Nm) WHEEL HUB NUTS: 175 FT-LBS (237 Nm)
  • Page 35 ADJUSTMENTS BUNTON MISSILE DECK LEVELING 1. Park the machine on a smooth, level surface. Raise the deck to the transport position. 2. Lower the deck onto a set of equal height blocks A under the rear corners of the deck. Place an- other set of blocks B under the front of the deck so that the deck top is pitched forward 1/8".
  • Page 36 ADJUSTMENTS BUNTON MISSILE HEIGHT OF CUT The height of cut is set by moving height of cut pin N to the hole designated for the height of cut desired. To change the height of cut: 1. Lift the deck to the highest position. 2.

  • Page 37: Adjustments

    ADJUSTMENTS BUNTON MISSILE CONTROL LEVERS There are two mounting positions for the control levers, upper and lower. The lower position works well for most people. Taller operators may need the upper position. To adjust the height of the control levers: –...
  • Page 38 ADJUSTMENTS BUNTON MISSILE HYDROSTAT ADJUSTMENTS A turnbuckle-style hydrostat neutral adjustment is provided. Neutral: 1. Support the machine with the rear wheels off the ground. Use jackstands or equivalent sup- port. Do not rely only on mechanical or hydraulic jacks. 2. Move the traction levers out into the neutral lock position and raise the seat.
  • Page 39 5. Remove old belt from the machine. 6. Install a new belt by performing the these steps in reverse order. Note: Always use Schiller Grounds Care, Inc. re- placement belts, not general purpose belts. Schiller Grounds Care, Inc. belts are specially designed for...

  • Page 40: Belt Replacement

    BELT REPLACEMENT BUNTON MISSILE CUTTERDECK BELT 1. Set the cutterdeck in the lowest height-of-cut position. 2. Remove the engine-cutterdeck belt from the deck idlers and pulley (see engine-cutterdeck belt replacement). Push it aside but don't remove it from the machine. 3.
  • Page 41 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com BOB-CAT BUNTON RYAN STEINER...

This manual is also suitable for:

Bunton 642242fBunton 642245f
