Edge-Core AS7946-30XB Quick Start Manual

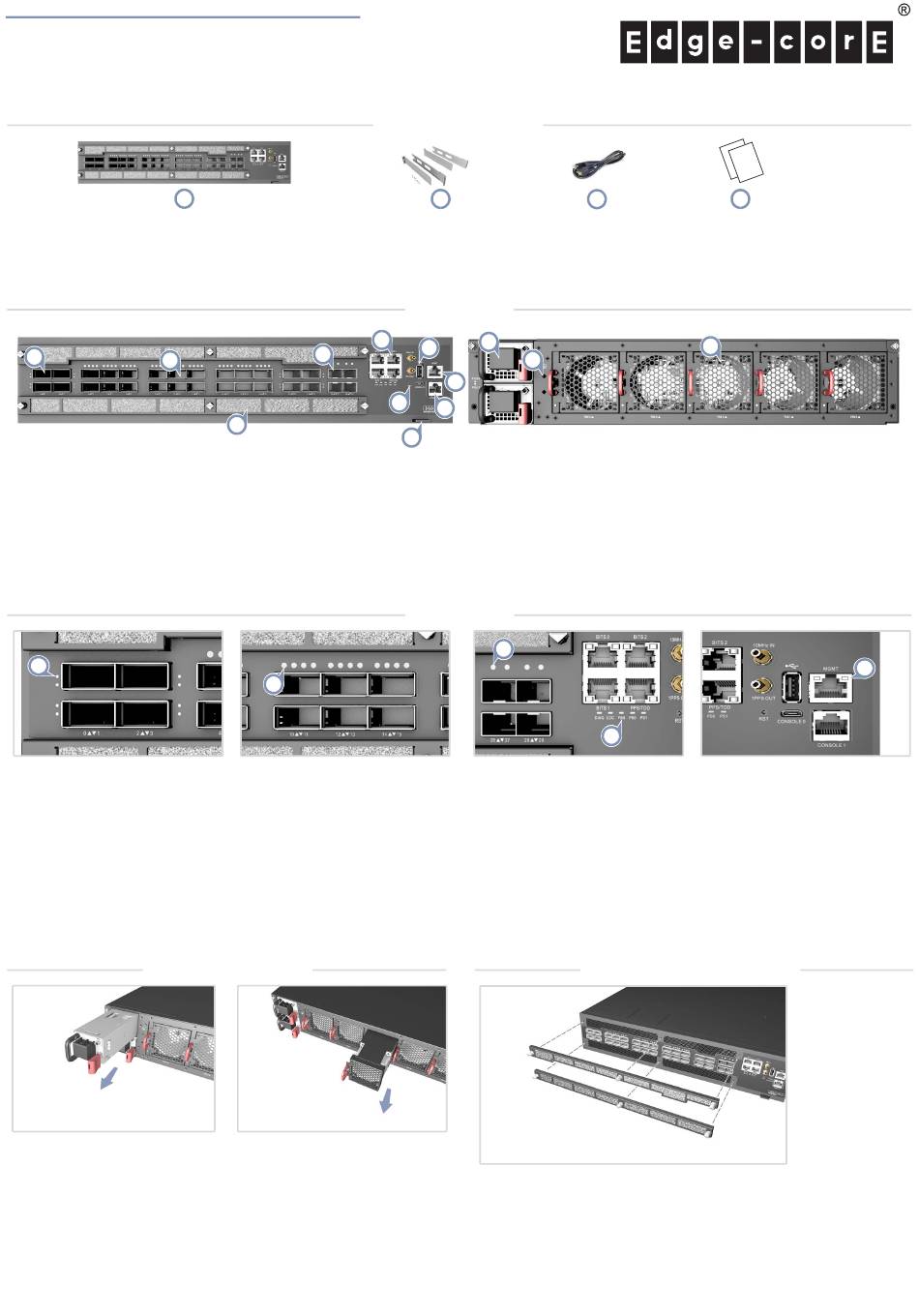

Quick Start Guide

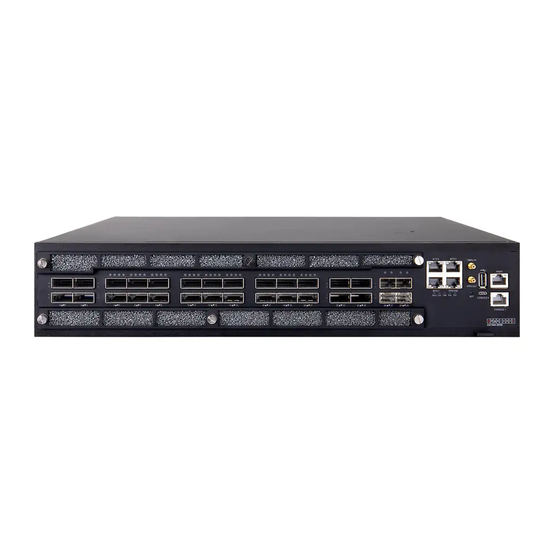

Aggregation Router
AS7946-30XB
1
1.
AS7946-30XB
2. Rack mounting kit — 2 rack-rail assemblies and 20 screws
3.
Console cable — RJ-45 to D-Sub
1
2
1.
4 x 400G QSFP-DD
2.
22 x 100G QSFP28
3.
4 x 10G/25G SFP28
4. Timing ports: 3 x RJ-45 BITS ports,1 x RJ-45 1PPS/ToD port, 1 x
1PPS connector, 1 x 10MHz connector
5. USB port
6.
RJ-45 Management port
1
1.
QSFP-DD Port LEDs:
LED1 (top) — Cyan (400G), Blue (100G)

LED2 (bottom) — Blue (all lanes linked), Red (not all lanes

linked), Blinking (activity)
2.
QSFP28 Port LEDs:
LED1 (left) — Blue (100G), Green (40G)

LED2 (right) — Blue (all lanes linked), Red (not all lanes

linked), Blinking (activity)
FRU Replacement
PSU Replacement
1. Remove the power cord.
2.
Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.

Package Contents
4
3
8
7
10
2
Fan Tray Replacement
1. Press the release latch in the
fan tray handle.
2.
Pull out to remove the fan.
3.
Install replacement fan with
matching airflow direction.
2
4.
Documentation — Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
11
5
12
6
9
4
7.
Air filters
8.
Reset button
9.
Console ports: 1 x Micro-USB, 1 x RJ-45
10. Product tag
11.
DC terminal or AC power socket
12.
Grounding point
13.
5 x fans
Front LEDs
3
3. SFP28 Port LEDs:
Blue — 25G

Green — 10G

4.
System LEDs:
DIAG — Green (OK), Amber (fault detected)

LOC — Flashes Amber when the command is activated

FAN — Green (OK), Amber (fault)

PS0 and PS1 — Green (OK), Amber (fault)

5.
Management Port LEDs:
RJ-45 OOB Port — Left (link), Right (activity)

Air Filter Replacement
1.
Unscrew the filter cover captive screws.
2.
Remove the old filter and install a replacement filter.
3. Replace the filter cover and tighten the captive screws.
– 1 –
www.edge-core.com
4
3
13
4
Air Filter Replacement
5
E052022-MR-R01
150200002486A
