Edge-Core AS5912-54X Quick Start Manual

Quick Star t Guide

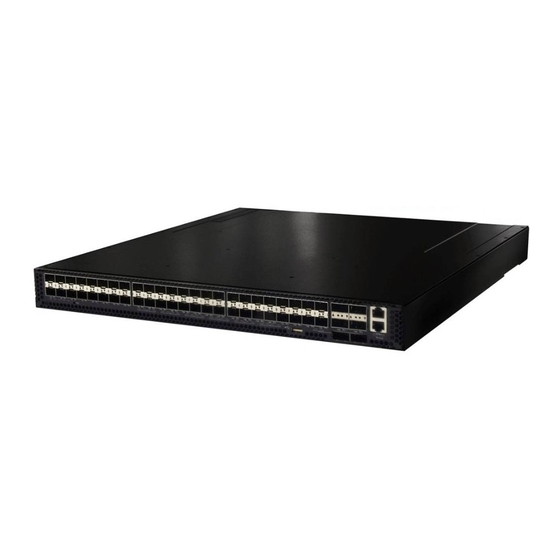

54-Port 10G/100G Fiber Ethernet Switch
AS5912-54X | AS5912-54XK | AS5916-54XK

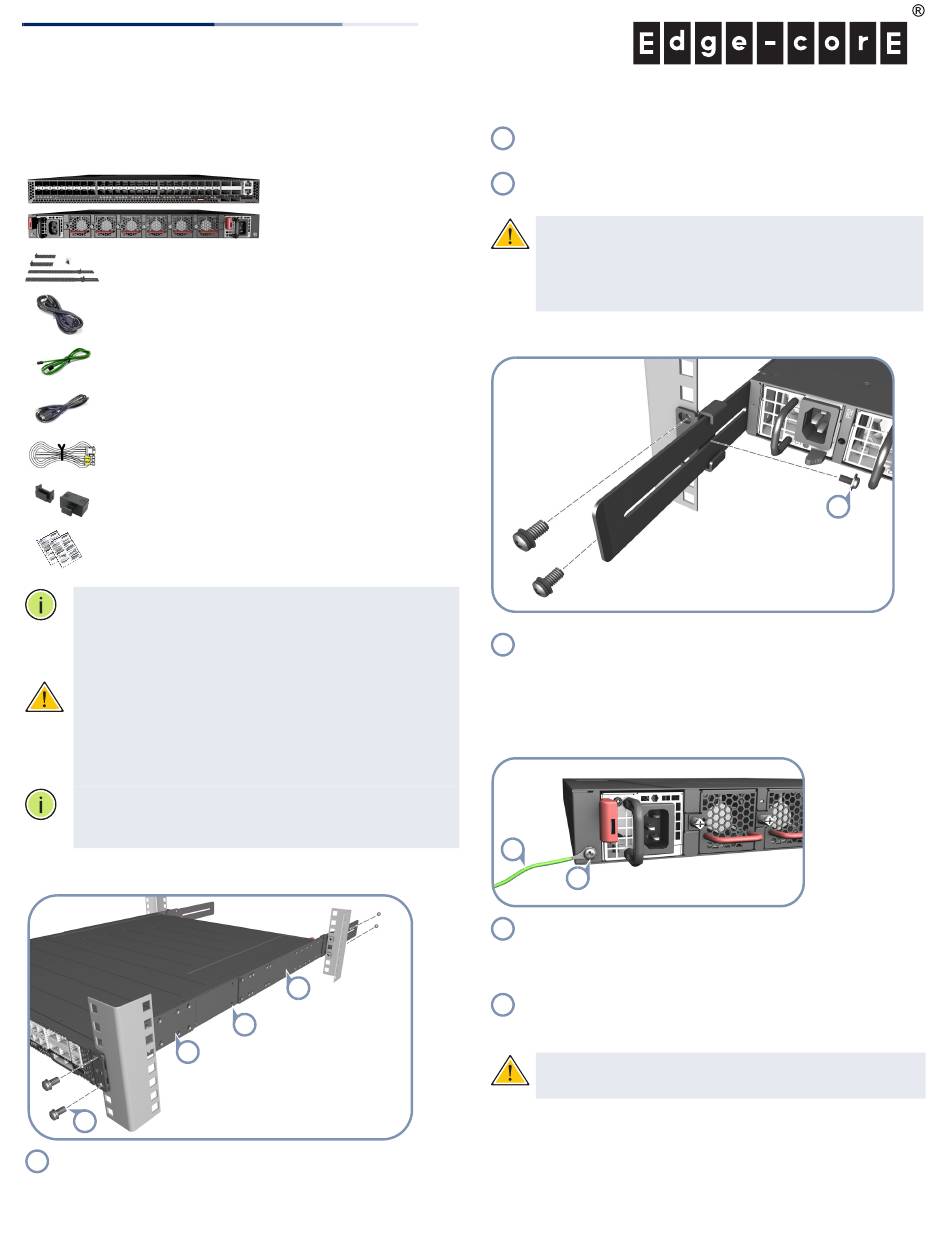

1. Unpack the Switch and Check Contents
Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
Power Cord (included with AC PSUs only)
Ground Wire (included with DC PSUs only)
Console Cable—RJ-45 to DB-9
DC Power Cable (included with 48 VDC PSU only)
Dust Cover Kit—6 for QSFP port and 48 for SFP ports
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note: The switch has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
switch, but no switch software image. Information about
compatible switch software can be found at
www.edge-core.com.
Caution: The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Note:
The switch drawings in this document are for
illustration only and may not match your particular switch
model.
2. Attach the Brackets
1
3
1 Attach each of the front- and rear-post brackets to the
switch using four of the included bracket screws.
www.edge-core.com
AS5912-54X,
AS5912-54XK or
AS5916-54XK
1
2
2 Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the switch.
3
Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
装置の吸排気に必要な領域を マニ ュ アル上に規定 し て
い る 。
3. Adjust Rear-Post Bracket Ears
1 Lock the position of the rear-post bracket ears using the
included position-locking screws.
You can also adjust the rear-post bracket ears to fit different
rack depths from 56 cm to 75 cm.
4. Ground the Switch
1
2
1 Ensure the rack is properly grounded and in compliance
with ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
2 Attach the grounding wire (#14 AWG) to the grounding
point on the switch rear panel. Then connect the other end
of the wire to rack ground.
Caution:
The earth connection must not be removed
unless all supply connections have been disconnected.
– 1 –
1
150200001637A R03
E062018-AP-R03
