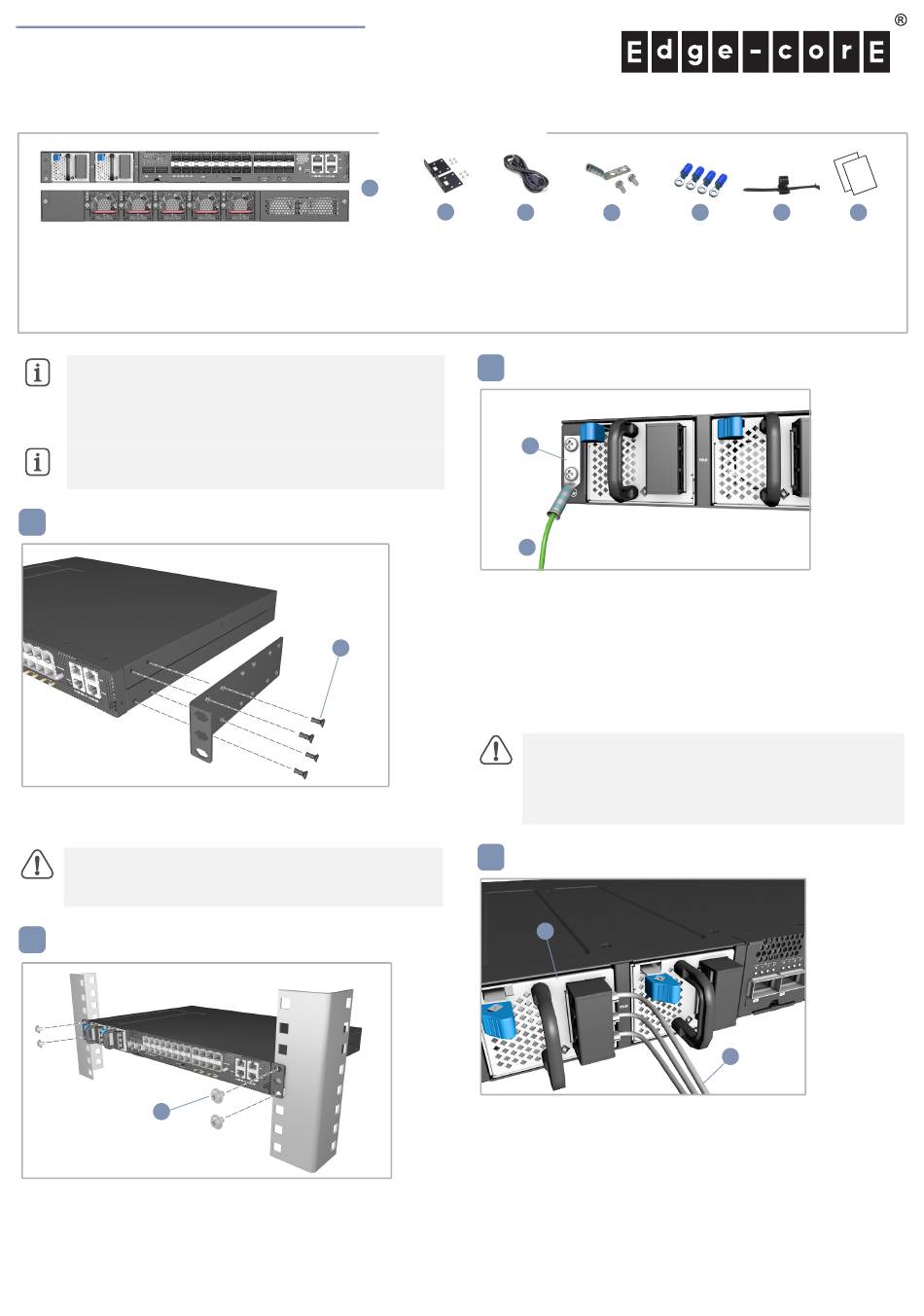

Quick Start Guide
26-Port 25G/100G Cell Site Gateway Router
AS7316-26XB

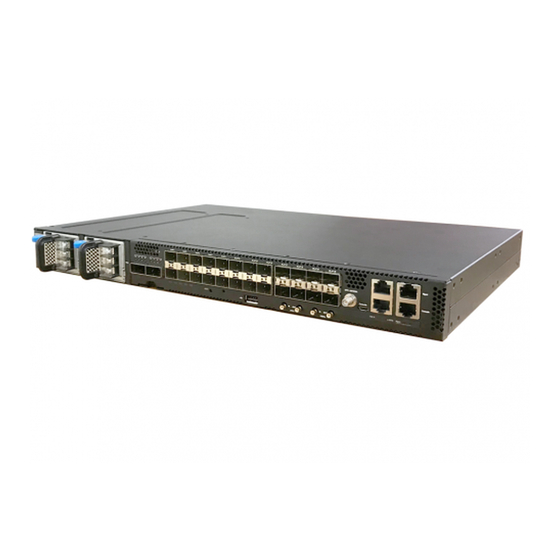

1. Cell Site Gateway Router AS7316-26XB
2. Rack Mounting Kit—2 brackets and 8 screws
3. Power cord (included with AC PSUs only)
4. Grounding kit—grounding lug, 2 screws, and 2 washers
Note: The router has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
router, but no switch software image. Information about
compatible switch software can be found at
www.edge-core.com.
Note: The drawings in this document are for illustration
only and may not match your particular model.
1
Attach the Brackets
1. Attach each of the brackets to the router using four of the
included bracket screws.
Caution: Installing the router in a rack requires two
people. One person should position the router in the rack,
while the other person secures it using the rack screws.
2
Mount the Router in a Rack
1
1. Use the screws and cage/clip nuts supplied with the rack to
secure the router in the rack.
www.edge-core.com
Package Contents
1
2
5. Ring lugs (x4) (included with DC PSUs only)
6. Power cord ties (x2) (included with AC PSUs only)
7. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
3
Ground the Router
1. Ensure the rack is properly grounded and in compliance with
ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
1
2. Attach the grounding wire (#6 AWG) to the grounding point on
the router's rear panel. Then connect the other end of the wire to
rack ground.
4
Connect Power
1. Install one or two AC or DC PSUs in the router.
The router supports up to two PSUs that must have the same
matching airflow direction as the installed fan trays.
2. Connect an external AC or DC power source to the PSUs.
– 1 –
3 4
2
1
Caution: The earth connection must not be removed unless
all supply connections have been disconnected.
Attention: Le raccordement à la terre ne doit pas être retiré
sauf si toutes les connexions d'alimentation ont été
débranchées.
1
7
5 6
2
