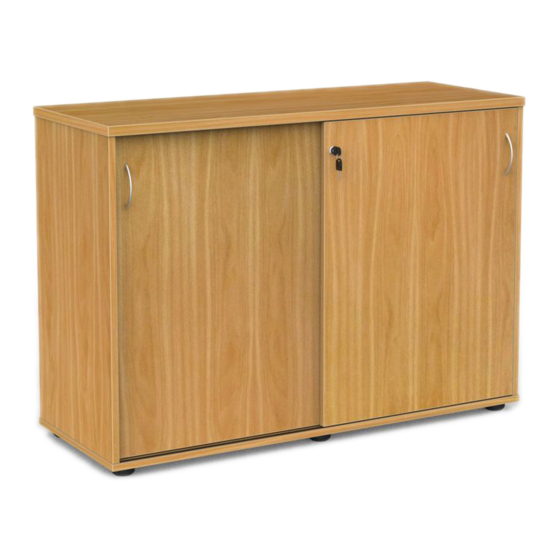

Knight Ergoplan Credenza Assembly Instructions Manual
Hide thumbs
Also See for Ergoplan Credenza:
- Assembly instructions manual (8 pages) ,
- Assembly instructions manual (8 pages) ,
- Assembly instructions manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Knight Ergoplan Credenza
Summary of Contents for Knight Ergoplan Credenza
- Page 1 Ergoplan Credenza Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Ergoplan Credenza Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
- Page 3 Ergoplan Credenza Assembly Instructions Parts Item Description Quantity Top Panel Left side Panel Right side Panel Back Panel Bottom Panel Left Door Panel Right Door Panel Moveable Shelf Vertical Panel knightgroup.co.nz...
- Page 4 Ergoplan Credenza Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Shelf Pin 4x22 Fix Bolt Handle 3.5x15 Screw Bracket Foot 3.5x35 Screw Lock c1 6x35 Cam Bolt d1 8x30 Dowel Pin c2 Cam Sticker...
- Page 5 Ergoplan Credenza Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for credenza top panel A, credenza bottom panel G, left side panel X, right side panel Z, door panel V1 and V2. Door Catch (Pre-installed) Door Castor (Pre-installed) 1. Insert cam bolt (c1) and dowel pins (d1) into panel A, G, X and Z as illustrated above.
- Page 6 Ergoplan Credenza Page 2 Assembly Instructions Assembly Instructions Step 2 Insert cam bolt (c1) on panels X, Z into cams on panel D and fully tighten. Fix cams on panel Y, D, X and Z into cam bolts (c1) on panel A and fully tighten.
- Page 7 Ergoplan Credenza Page 3 Assembly Instructions Assembly Instructions Step 4 Insert shelf pins (p1) into panel X, Z and Y, put the two panels E on the top of shelf pins (p1) as illustrated below. Step 5 Slightly tilt door V1 towards you and place door castors in bottom tracking closest to inner of credenza. As you move door back into upright position hold down the door catch buttons to secure door in place on the top tracking.
- Page 8 Ergoplan Credenza Page 4 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
