Knight Ergoplan Credenza Assembly Instructions Manual

Hide thumbs Also See for Ergoplan Credenza:

Advertisement

Quick Links

Download this manual

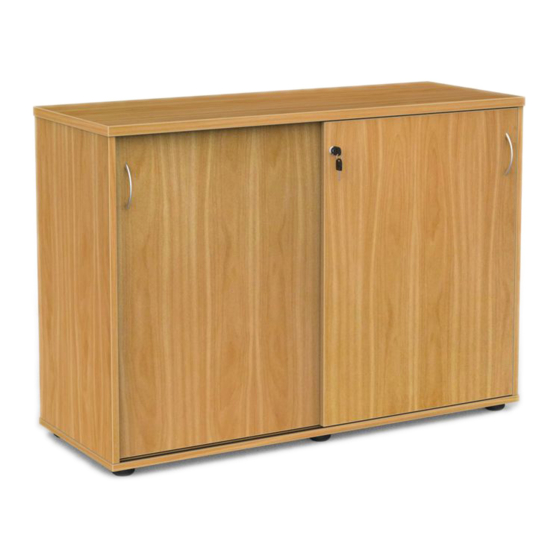

Ergoplan Credenza
Assembly Instructions
Tools Required:
Powered Screwdriver
knightgroup.co.nz

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ergoplan Credenza and is the answer not in the manual?

Questions and answers

Related Manuals for Knight Ergoplan Credenza

Summary of Contents for Knight Ergoplan Credenza

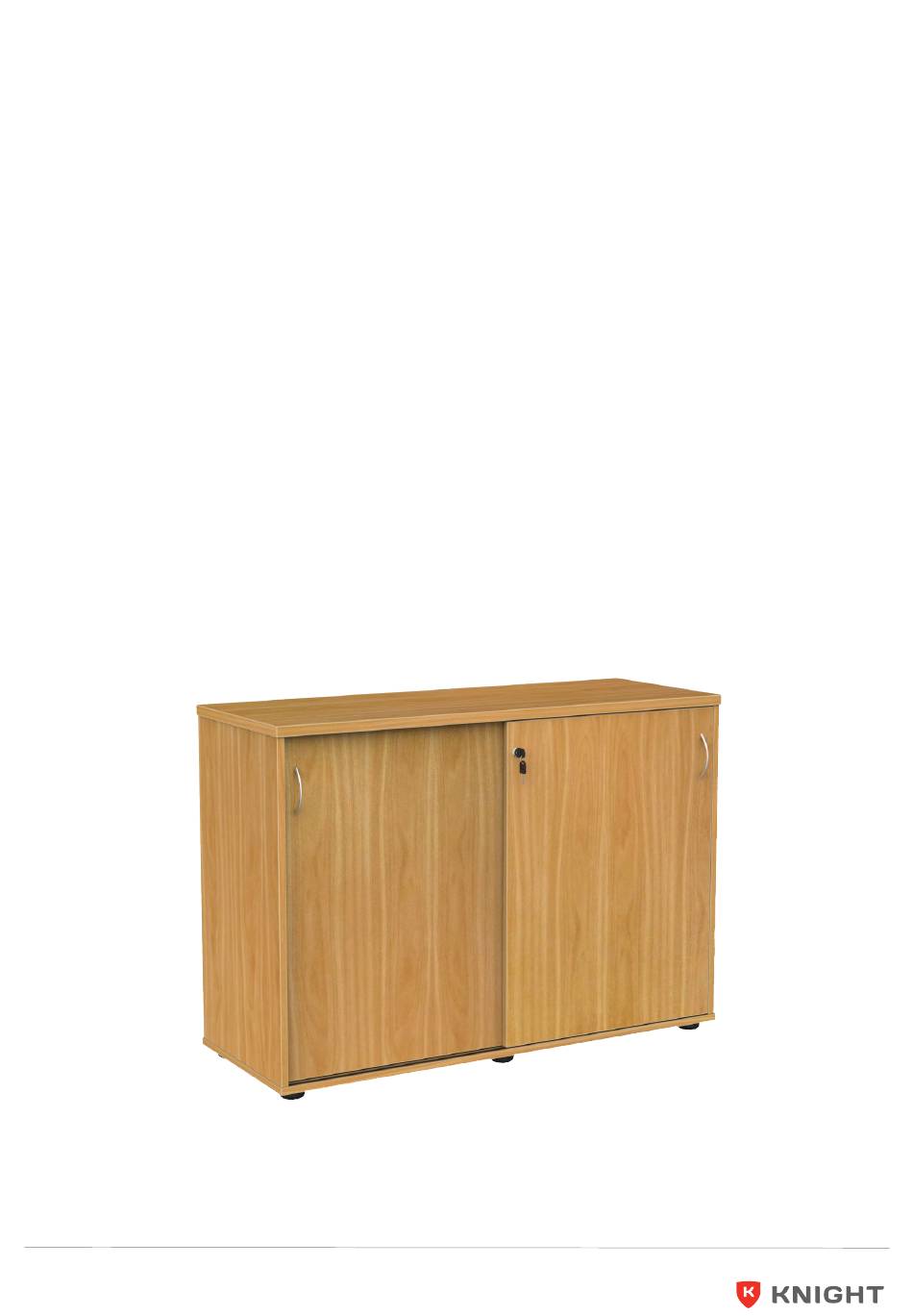

  • Page 1 Ergoplan Credenza Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...

  • Page 2: Setup And Installation

    Ergoplan Credenza Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
  • Page 3 Ergoplan Credenza Assembly Instructions Parts Item Description Quantity Top Panel Left side Panel Incorrect Correct Right side Panel The turning direction of attaching Back Panel Bottom Panel Left Door Panel Right Door Panel Moveable Shelf Centre Panel knightgroup.co.nz...
  • Page 4 Ergoplan Credenza Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Shelf Pin 4x22 Fix Bolt Handle 3.5x15 Screw Bracket Foot 3.5x35 Screw Lock c1 6x35 Cam Bolt d1 8x30 Dowel Pin c2 Cam Sticker...
  • Page 5 Ergoplan Credenza Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A, bottom panel G, left side panel X, right side panel Z, door panel V1 and V2. 1. Insert cam bolt (c1) and dowel pins (d1) into panel A, G, X and Z.
  • Page 6 Ergoplan Credenza Page 2 Assembly Instructions Assembly Instructions Step 2 Left side panel X, right side panel Z and centre panel Y assembly. Insert cam bolt (c1) on panels X and Z into cams on panel D and tighten in a clockwise direction.
  • Page 7 Ergoplan Credenza Page 3 Assembly Instructions Assembly Instructions Step 3 Bottom panel G assembly. Insert cam bolt (c1) on panel G into cams on panel X, Z, Y and D and tighten in a clockwise direction. Cover top of cams with cam stickers (c2).
  • Page 8 Ergoplan Credenza Page 4 Assembly Instructions Assembly Instructions Step 4 Movable shelf E assembly. lnsert shelf pins (p1) into panels X, Z and Y at desired shelf height. Place the two panels E on the top of the shelf pins (p1).
  • Page 9 Ergoplan Credenza Page 5 Assembly Instructions Assembly Instructions Step 5 Door V1 and V2 assembly. Slightly tilt door V1 towards you and place door castors in bottom tracking closest to inner of credenza. As you move door back into upright position hold down the door catch button to secure door in place on the top tracking.
  • Page 10 Ergoplan Credenza Page 6 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
