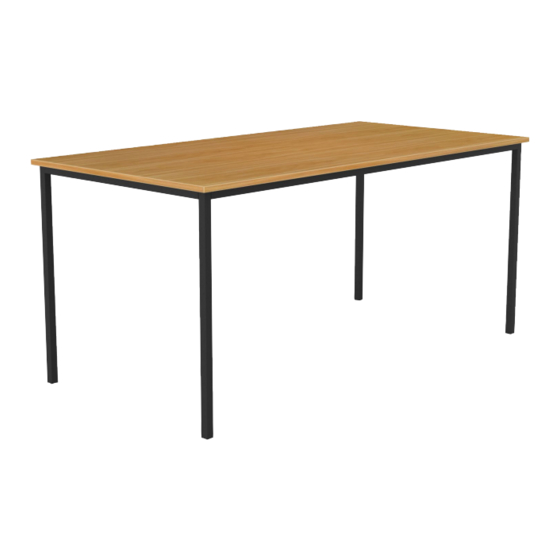

- Page 1 Ergoplan Canteen Table Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Ergoplan Canteen Table Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
- Page 3 Ergoplan Canteen Table Assembly Instructions Parts Item Description Quantity Top Panel Legs Rails Incorrect Correct The turning direction of attaching Item Description Quantity M8x25 Screw 6mm Allen Key 4x40 Screw 4x16 Screw 1 M8x25 Screw 2 6mm Allen Key 3 4x40 Screw 4 4x16 Screw knightgroup.co.nz...
- Page 4 Ergoplan Canteen Table Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 Fix legs to rails with screws (1) using the allen key. knightgroup.co.nz...
- Page 5 Ergoplan Canteen Table Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Place top panel on level suface. Turn frame over and align on top panel. Fix frame to top panel using screws (3) and (4). Turn table over to upright position.
- Page 6 Ergoplan Canteen Table Page 3 Page 3 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
