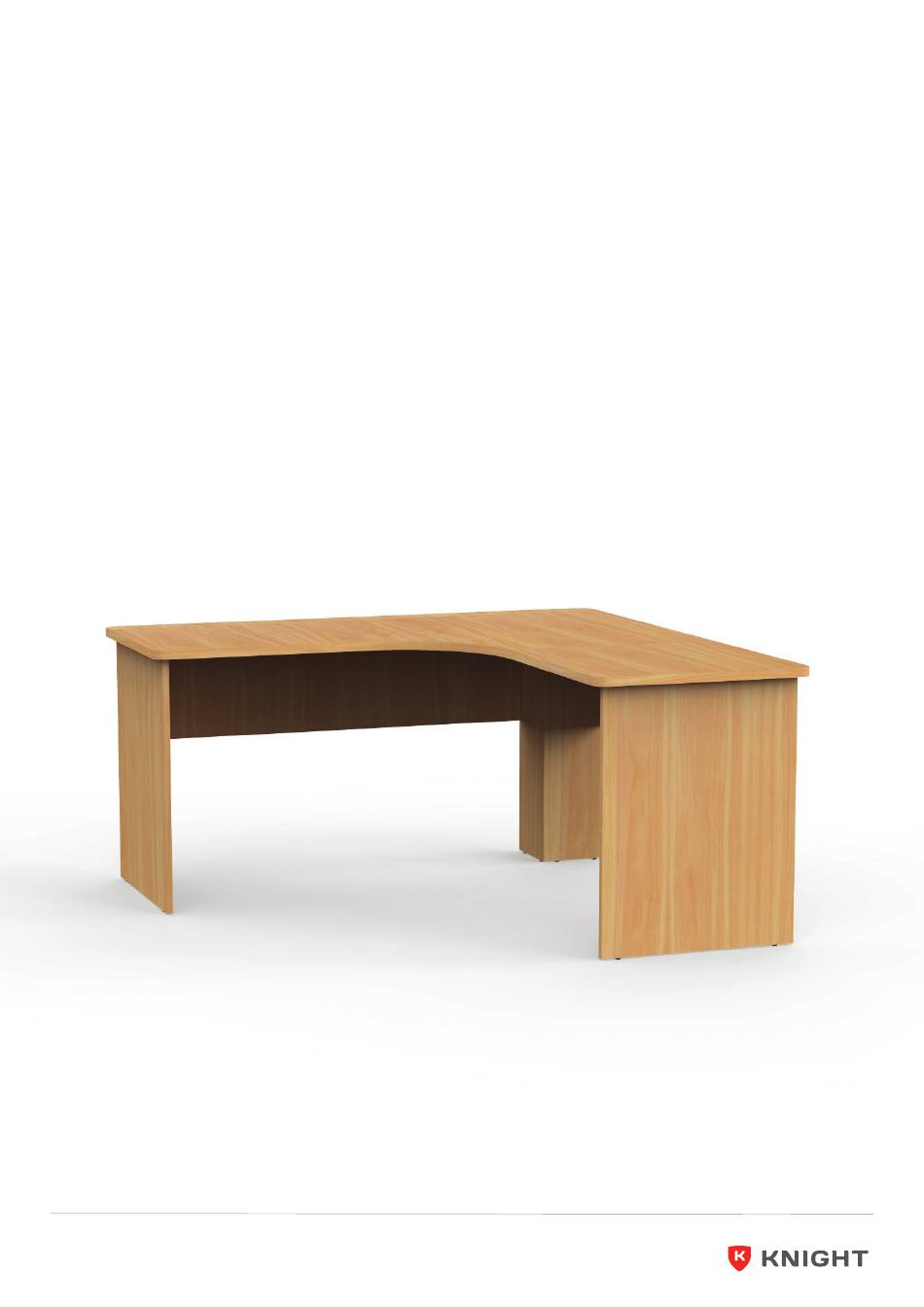

- Page 1 Eko Workstation Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Eko Workstation Page 1 Assembly Instructions • To prevent possible scratches or damage, assemble the desk upside down on a soft surface such as a blanket, carpet or packaging. • Attach leg to the top assembly by using bolts, spring washer, flat washer.
- Page 3 Eko Workstation Page 2 Page 2 Assembly Instructions Assembly Instructions Step 1 Insert dowel pins (d1) into panel D. Insert cam bolts (c1) and dowel pins (d1) into panels X, Z, Y1 & Y2, then turn the panel Y around 180° and insert cam bolts (c1) into panel Y1.
- Page 4 Eko Workstation Page 3 Page 3 Assembly Instructions Assembly Instructions Step 2 Insert cam bolts (c1) into panel A1 and A2. Step 3 Fix cams on panel Y2 into cam bolts (c1) on panel Y1 and fully tighten. knightgroup.co.nz...
- Page 5 Eko Workstation Page 4 Page 4 Assembly Instructions Assembly Instructions Step 4 Fix cams on panel D into cam bolts (c1) on panels Z and Y2 and fully tighten. Step 5 Fix cams on panel D into cam bolts (c1) on panels X and Y1 and fully tighten.
- Page 6 Eko Workstation Page 5 Page 5 Assembly Instructions Assembly Instructions Step 6 Attach connectors (c3) to panels A1 & A2 with screws (s5) and fully tighten. Insert the connector (c4) into panels A1 & A2 and fully tighten. Cover the cam covers (c2) on the top of the cams. Connect panel D and panel X, Y, Z by using bracket (b1).
