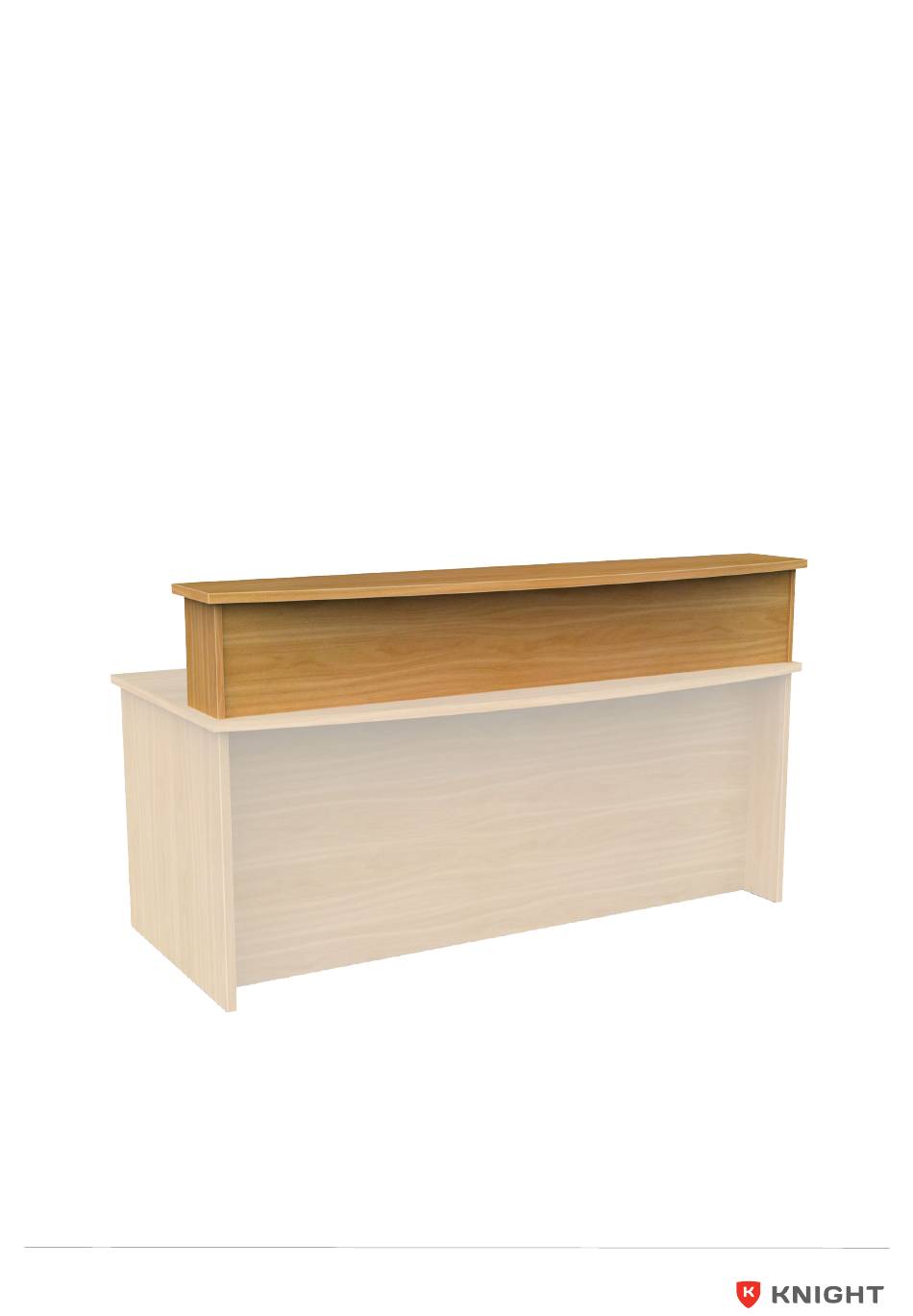

- Page 1 Ergoplan Reception Hutch Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Ergoplan Reception Hutch Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
- Page 3 Ergoplan Reception Hutch Assembly Instructions Parts Item Description Quantity Incorrect Correct Top Panel The turning direction of attaching Left Side Panel Right Side Panel Back Panel Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker c1 6x35 Cam Bolt...
- Page 4 Ergoplan Reception Hutch Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A, left side panel X and right side panel Z. Insert cam bolts (c1) and dowel pins (d1) into panels A, X and Z.
- Page 5 Ergoplan Reception Hutch Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Left side panel X, right side panel Z and back panel D assembly. Insert cam bolts (c1) on panel X and Z into cams on panel D and tighten in a clockwise direction.
- Page 6 Ergoplan Reception Hutch Page 3 Page 3 Assembly Instructions Assembly Instructions Step 3 Top panel A assembly. Insert cam bolts (c1) on panel A into cams on panel Z, D and X tighten in a clockwise direction. Cover top of cams with cam stickers (c2).
- Page 7 Ergoplan Reception Hutch Page 4 Page 4 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
